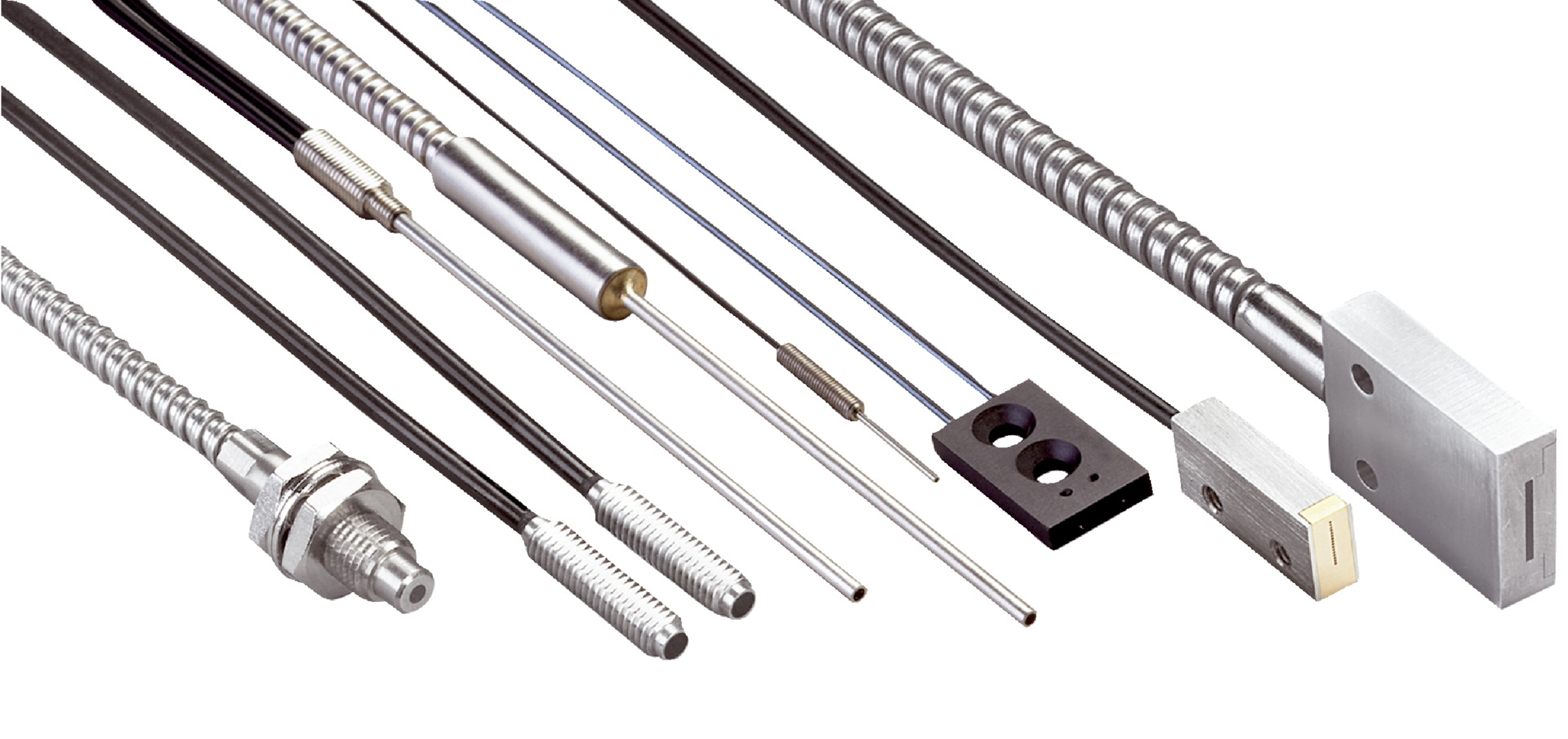

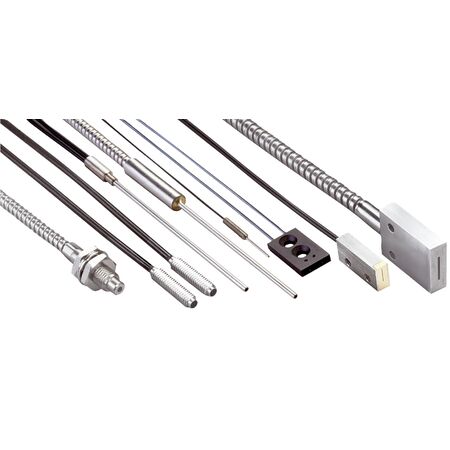

Fiber Optic Proximity Sensor LL3-DL04 | Threaded Sleeve Design | 60° Angle of Dispersion | by SICK
The Fiber Optic Proximity Sensor LL3-DL04 is designed for industrial automation, featuring a threaded sleeve design and a 60° angle of dispersion for precise detection. Ideal for machine safety and control systems, this sensor enhances operational efficiency while minimizing wear and tear through non-contact sensing technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Adapter end sleeves required: No
- Thread diameter (housing): M4
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Weight: 14 g
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type
- Proximity system functional principle
- Threaded sleeve fiber-optic head design
- 60° angle of dispersion
- No integrated lens
- No compatibility with tip adapters
- No adapter end sleeves required
- Multi-fiber core structure and fiber arrangement
- 2.2 mm outside diameter for optical fiber cable connection
- Thread diameter (housing) M4
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Industrial automation for proximity sensing
- Machine safety and control systems
- Precision detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device life and reducing waste.
- Energy-efficient operation minimizes power consumption.
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SICK LL3-DL04 Fiber-Optic Cable Proximity Sensor is available for immediate purchase, ideal for industrial automation and precision sensing applications.
