Fiber Optic Sensor Amplifier | Adjustable Sensing Range | Infrared LED | IO-Link V1.1 | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range and an infrared LED light source with a lifespan of 100,000 hours. Ideal for object detection and quality control, this robust amplifier operates in temperatures from -25°C to +55°C and is equipped with IO-Link V1.1 for easy configuration, making it perfect for machine safety and process monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with wavelength of 1450 nm and average service life of 100,000 hours at 25°C
- Equipped with IO-Link V1.1 for sensor parameter configuration and Smart Task functions
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching mode
- High switching frequency up to 31.2 kHz and fast response time ≤ 16 µs
- IP54 rated housing suitable for industrial environments
- Operating temperature range from -25°C to +55°C
- Robust against shock (50 g) and vibration (10 Hz to 55 Hz)
- Multilingual display menu including German, English, Chinese, Korean, and Japanese
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Machine safety and presence detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

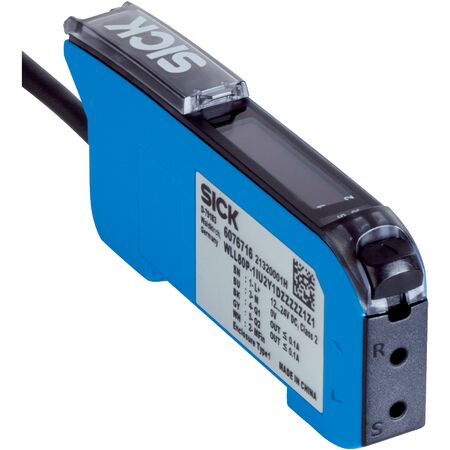

The SICK WLL80I-1HT6Y4DZA71Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and object detection applications.
