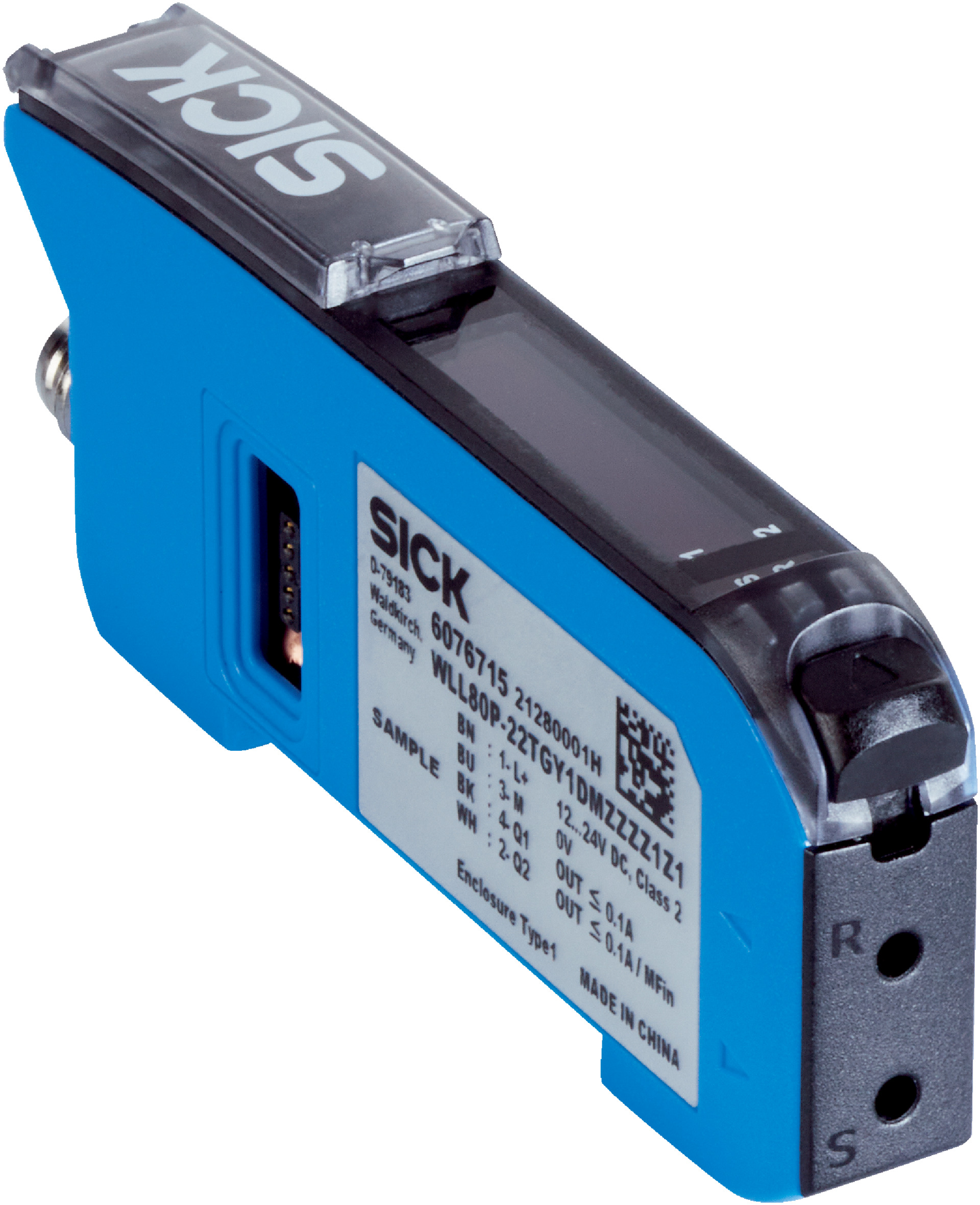

Fiber Optic Sensor Amplifier | Adjustable Sensing Range | Infrared LED Light Source | IP54 Rated | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber cable used. With an infrared LED light source offering a wavelength of 880 nm and a service life of 100,000 hours, this amplifier is perfect for machine safety and monitoring applications. Its robust design and IP54 rating ensure durability in challenging environments, making it an ideal choice for object detection and counting tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with 880 nm wavelength and 100,000 hours average service life
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching
- Fast response time ≤ 16 µs and switching frequency up to 31.2 kHz
- IP54 rated enclosure suitable for industrial environments
- Display with multi-language menu (German, English, Chinese, Korean, Japanese) and LED indicators for power and output status
- Robust plastic housing with elastomer operating buttons and metal nickel-plated brass M8 connector
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Counting and debouncing tasks in manufacturing
- Environments requiring infrared light sensing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now

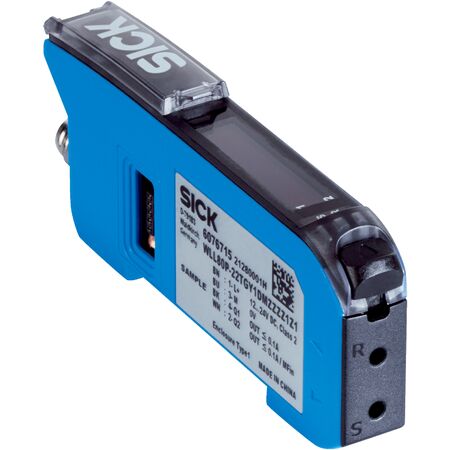

The SICK WLL80I-22TGY3DMZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
