Fiber Optic Sensor Amplifier | Adjustable Sensing Range | IP54 Rated | 100,000 Hour LED Life | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range based on the optical fiber cable used. With a visible red LED light source at 660 nm and an impressive 100,000-hour service life, this amplifier is perfect for machine safety, object detection, and integration into automated production lines. Its IP54 rated housing ensures protection against dust and water splashes, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with adjustable sensing range depending on optical fiber cable used
- Visible red LED light source with 660 nm wavelength
- Long LED service life of 100,000 hours at 25°C
- Multiple LED indicators for power, switching outputs, and teach-in status
- IP54 rated housing for protection against dust and water splashes
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 55 Hz
- Digital output with light/dark switching and fast response time ≤ 16 µs
- Configurable delay times and switching functions via operating buttons or gateway
- Internal bus connector for communication interface
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Counting and positioning tasks in manufacturing
- Integration in automated production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

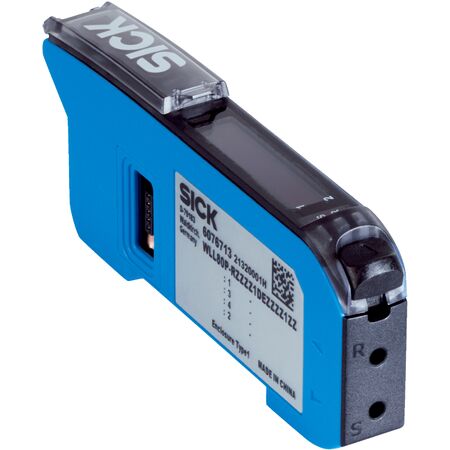

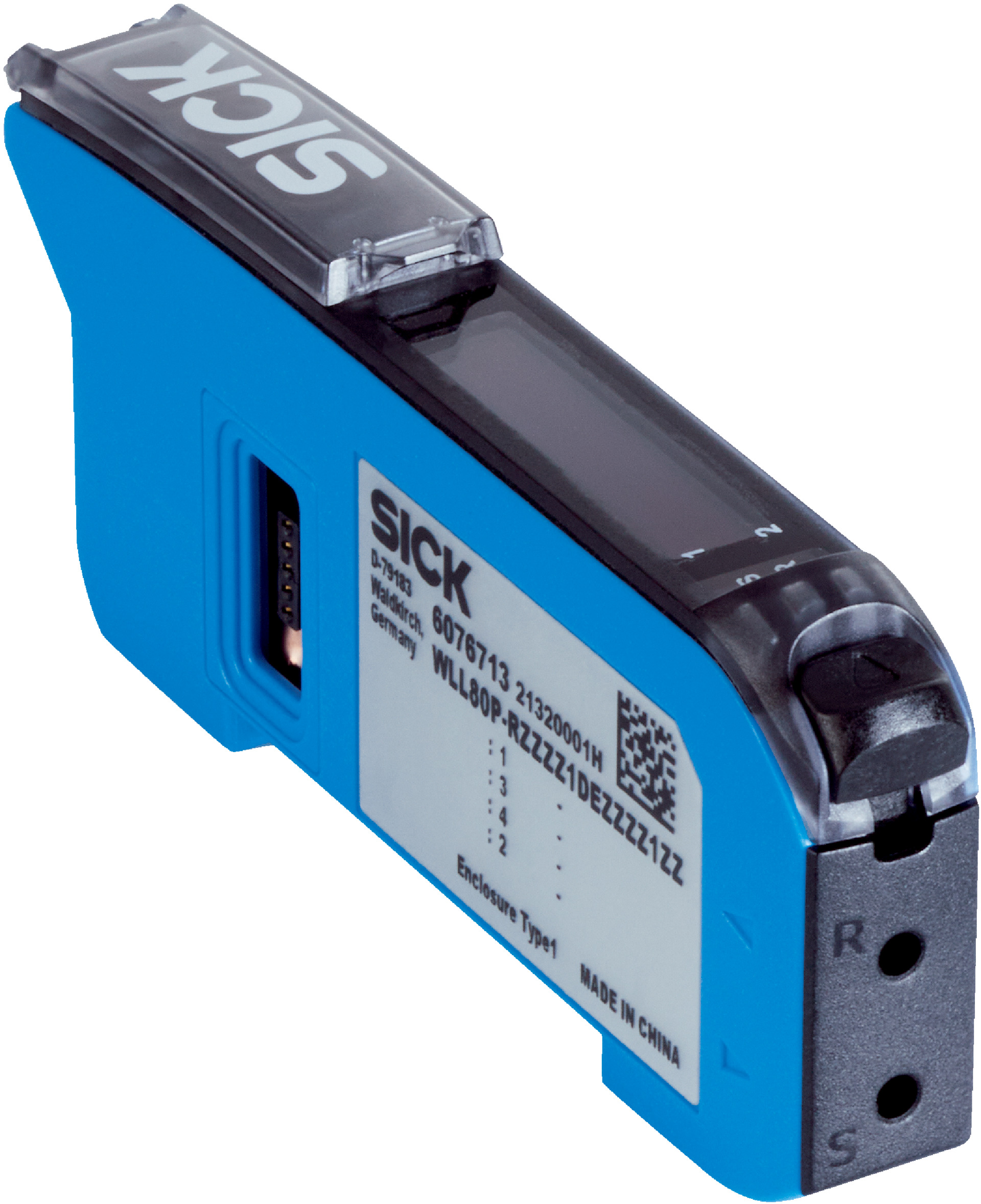

The SICK WLL80P-RZZZZ1DMZZZZ1ZZ Fiber-optic Amplifier Base Unit is available for immediate purchase, ideal for industrial automation and safety applications.
