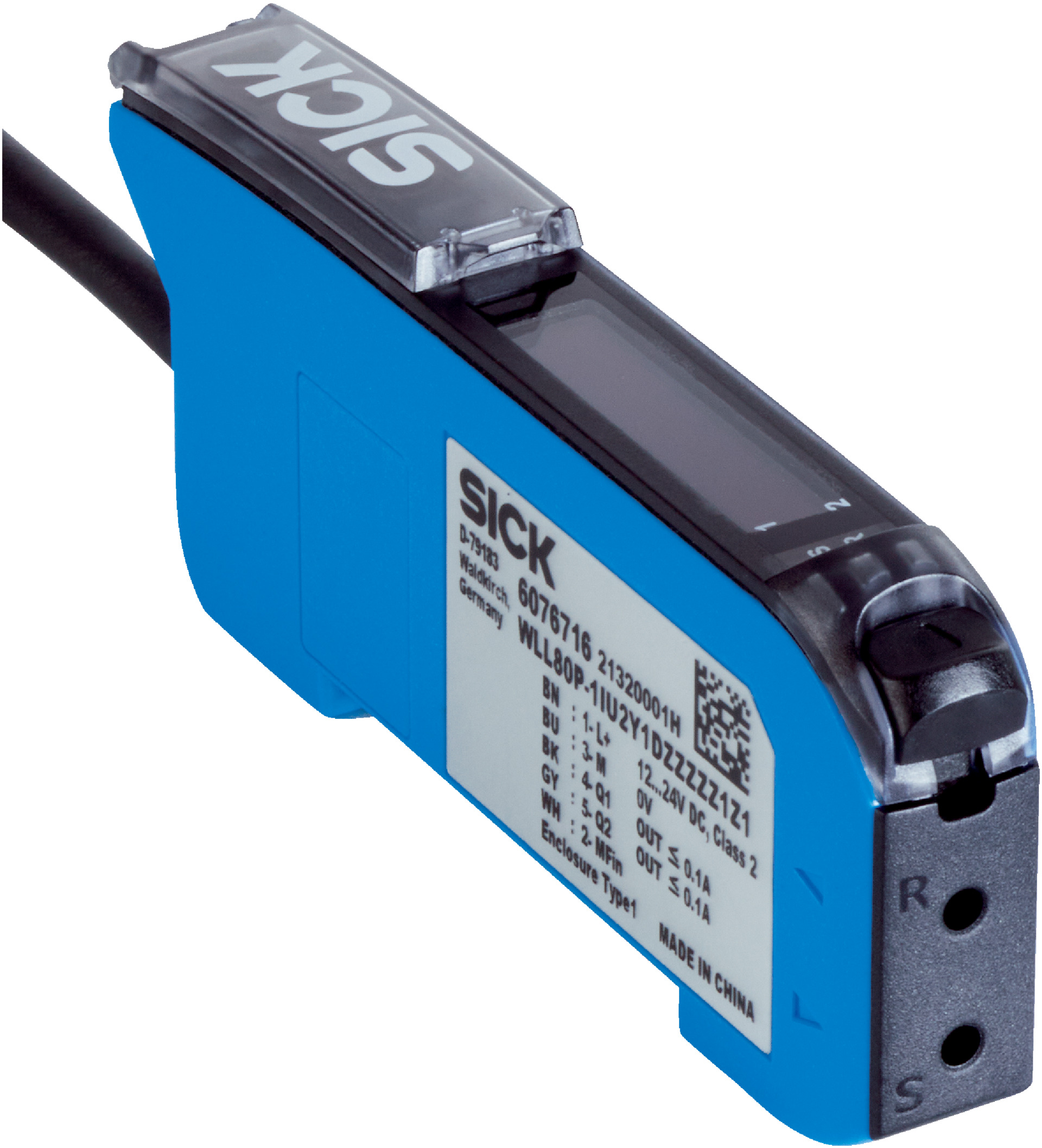

Fiber Optic Sensor Amplifier | Adjustable Sensing Range | IP54 Rated | 660 nm LED | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range and a visible 660 nm LED light source. With a fast response time of ≤16 µs and dual digital outputs, it's perfect for object detection and machine safety applications. Built to withstand harsh environments with an IP54 rating, this amplifier ensures reliable performance in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Operating temperature range: -25°C to +55°C
- Storage temperature range: -40°C to +70°C
- Enclosure rating: IP54
- LED wavelength: 660 nm
- LED risk group: Free group according to EN 62471
- Cable: 5-wire, 2 m length, Ø 4 mm diameter
- Housing material: Plastic (PC) with protective hood
- Display: Multilingual menu (German, English, Chinese, Korean, Japanese)
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range depending on optical fiber cable used
- Visible red LED light source with wavelength of 660 nm
- Long LED service life of 100,000 hours at 25°C
- Dual digital outputs (PNP/NPN) with light/dark switching mode
- Fast response time of ≤16 µs and switching frequency up to 31.2 kHz
- IP54 rated housing suitable for industrial environments
- Multiple LED indicators for power and switching output status
- Configurable via display and operating buttons with multilingual menu
- Robust plastic housing with protective hood and elastomer operating buttons
- Cable connection with 5-wire, 2 m length, and deep-freeze property
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Counting and presence detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

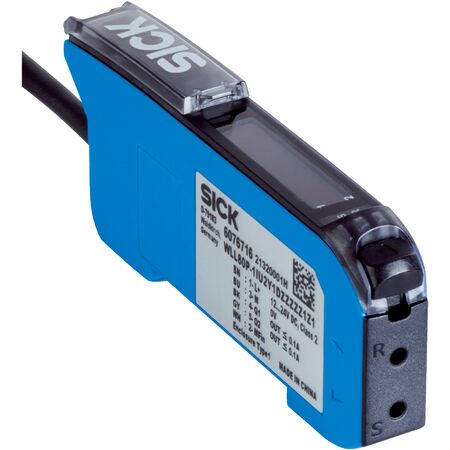

The SICK WLL80P-1IU2Y1DZZZZZ1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety applications.
