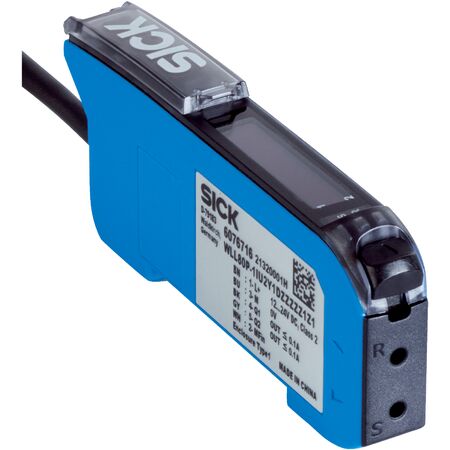

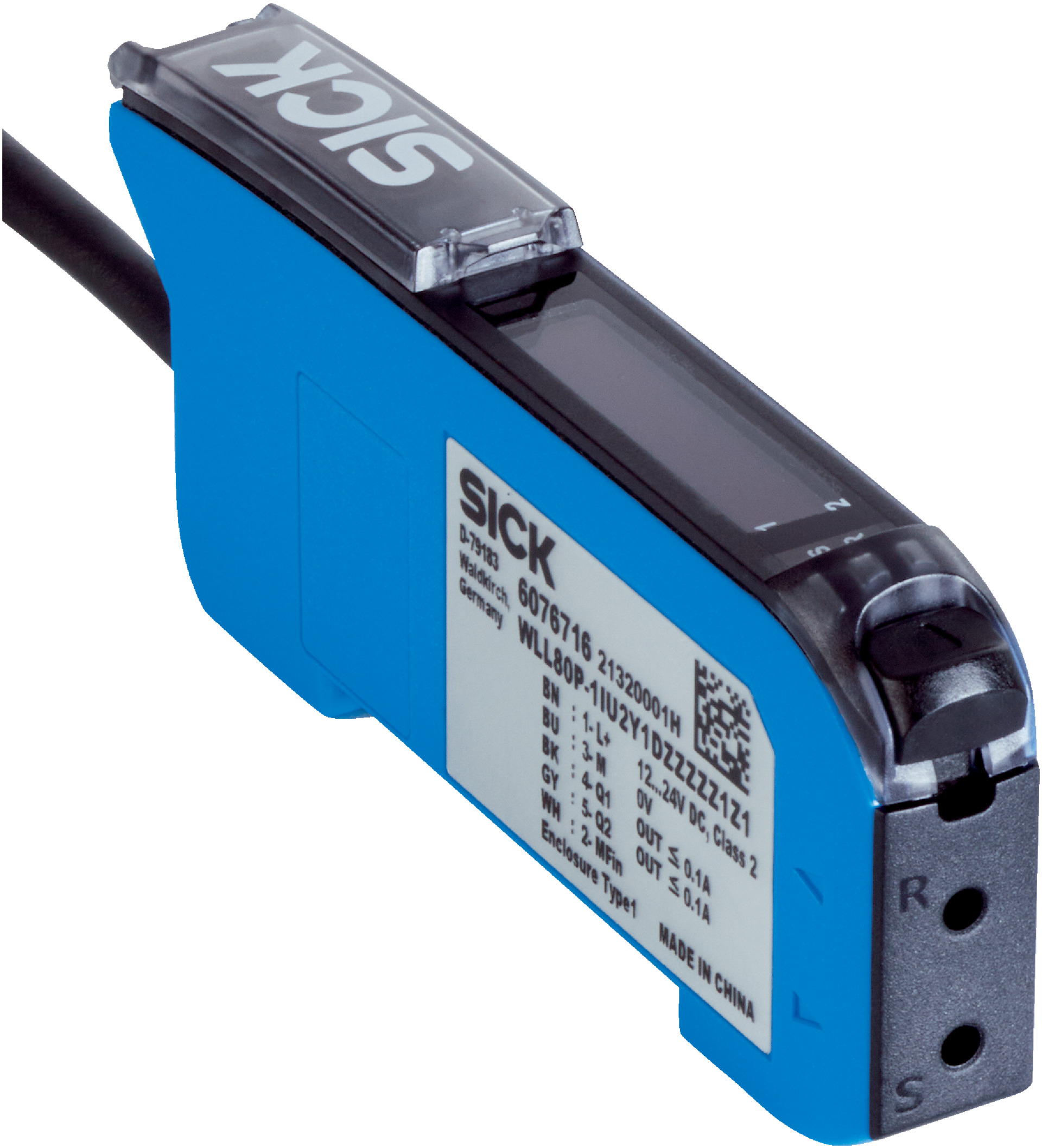

Fiber Optic Sensor Amplifier | Adjustable Sensing Range | IP54 Rated | High Switching Frequency | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range and a high switching frequency of up to 31.2 kHz. With a robust IP54-rated housing and visible red LED light source, it’s perfect for machine safety and process control applications, ensuring reliable object detection and monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC with ±10% ripple
- Current consumption: ≤ 50 mA
- Protection class: III
- Digital outputs: 2 push-pull (PNP/NPN) individually adjustable
- Output current max: ≤ 100 mA
- Response time: ≤ 16 µs
- Switching frequency: up to 31.2 kHz
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP54
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- LED wavelength: 660 nm visible red light
- Average LED service life: 100,000 hours at 25°C
- Housing material: Plastic (PC)
- Cable: 5-wire, 2 m length, 0.18 mm² conductor size
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for power and switching outputs status
- Configurable via display and operating buttons with multilingual menu
- High switching frequency up to 31.2 kHz
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25°C to +55°C
- Multiple time functions including switch-on/off delay and impulse
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Process control requiring fiber-optic sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 12 V DC to 30 V DC
- Long LED service life of approximately 100,000 hours reduces waste
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLL80P-1IUXY1XZS03Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
