Fiber Optic Sensor Amplifier | Adjustable Sensing Range | IP54 Rated | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an adjustable sensing range and a visible red LED light source. With robust IP54 protection and high shock resistance, it's perfect for object detection, quality control, and machine safety applications. The IO-Link V1.1 interface ensures fast communication, making it an ideal choice for professionals in need of reliable sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for operating status and received light beam
- IO-Link V1.1 communication interface with fast cycle time of 0.5 ms
- Two individually adjustable push-pull digital outputs (PNP/NPN)
- Robust plastic housing with IP54 protection rating
- Wide ambient operating temperature range from -25°C to +55°C
- High shock and vibration resistance
- Long LED service life of 100,000 hours at 25°C
- Multiple timer and switching functions configurable via IO-Link or buttons
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and IO-Link communication.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Machine safety and presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

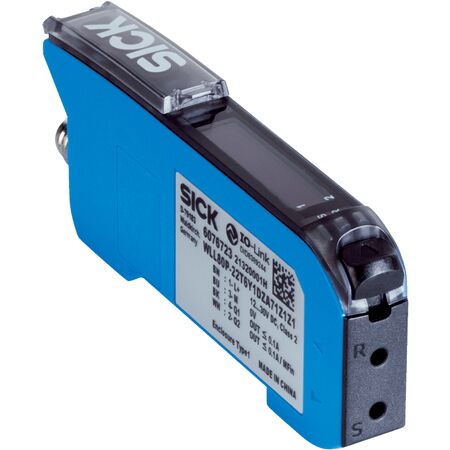

The SICK WLL80P-22T6Y1DZA71Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
