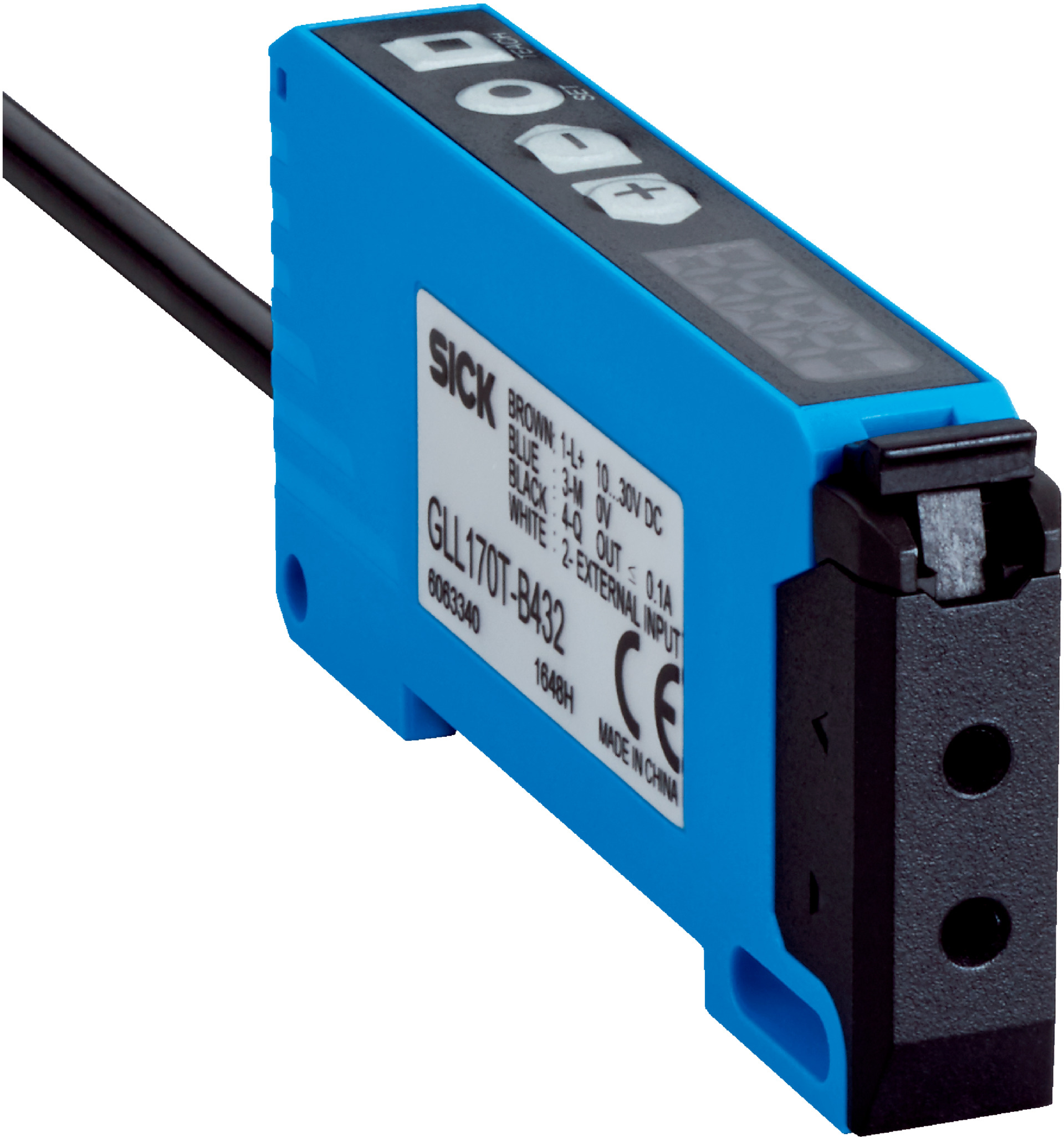

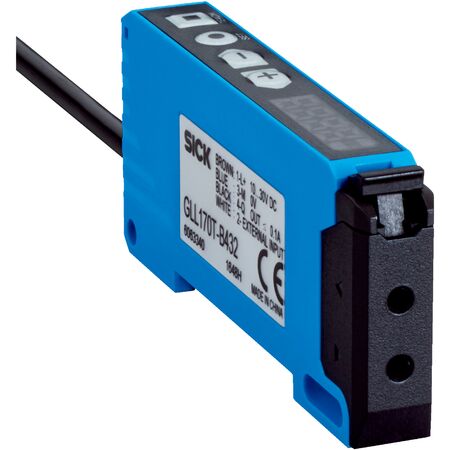

Fiber Optic Sensor Amplifier | Adjustable Sensing Range | IP66 Rated | 632 nm LED Light | by SICK
The Fiber Optic Sensor Amplifier GLL170T-B432S09 features an adjustable sensing range and a visible red LED light source at 632 nm, making it ideal for industrial automation and safety control applications. With a robust IP66-rated housing and high switching frequency of up to 10 kHz, this amplifier ensures reliable performance in challenging environments, perfect for machine safety and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- LED wavelength: 632 nm
- Protection class: III
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable length: 2 m, 4-wire cable
- Housing material: Plastic PC/POM
- Cable material: Plastic TPE-SEBS, halogen-free
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Operating indicator LED green and digital output status LED yellow
- Programmable delay time from 0 ms to 9,999 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- High switching frequency up to 10 kHz
- Robust plastic housing with IP66 rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Material handling and packaging lines
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Halogen-free cable materials support environmentally safer disposal
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLL170T-B432S09 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety control applications.
