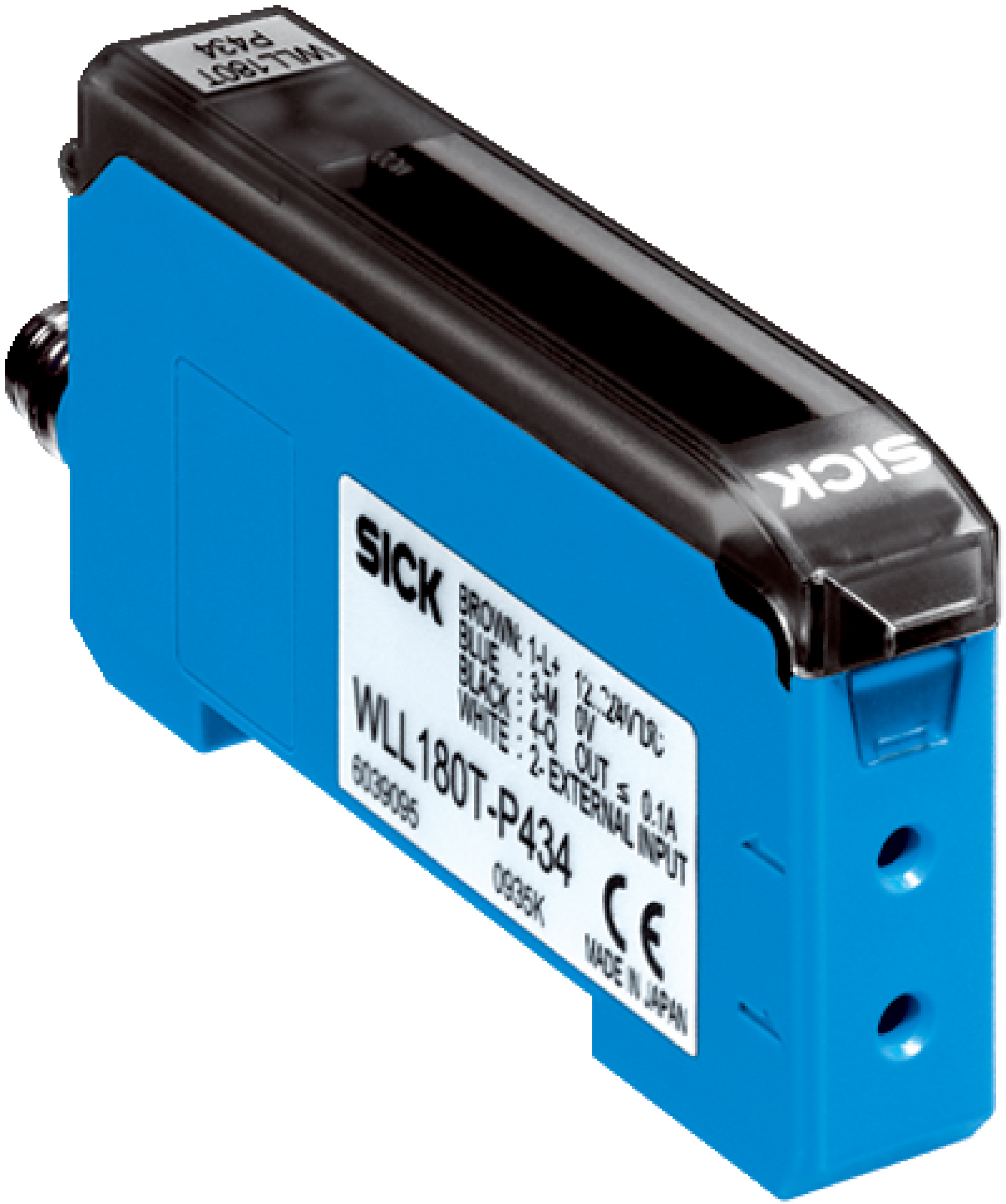

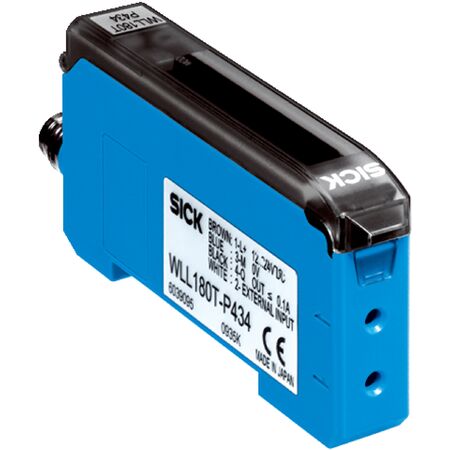

Fiber Optic Sensor Amplifier WLL180T-M634 | Configurable Sensor Parameters | Red LED Light Source | PNP Digital Outputs | by SICK
The Fiber Optic Sensor Amplifier WLL180T-M634 is designed for industrial automation, featuring configurable sensor parameters and a visible red LED light source at 650 nm. With two adjustable PNP digital outputs and a high switching frequency of up to 31.2 kHz, it ensures precise object detection and machine safety. Built for robust performance, it operates in a wide temperature range from -25°C to +55°C, making it ideal for factory and process automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic amplifier base unit with configurable sensor parameters
- Visible red LED light source with 650 nm wavelength
- Two individually adjustable PNP digital outputs with light/dark switching
- LED display for status of switching outputs and sensor functions
- High switching frequency up to 31.2 kHz and programmable delay times
- Robust plastic ABS/PC housing with IP50 protection rating
- Wide ambient operating temperature range from -25°C to +55°C
- Shock resistance of 50 g and vibration resistance from 10 Hz to 55 Hz
- Complies with EMC standard EN 60947-5-2 and RoHS certified
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and monitoring
- Factory and process automation requiring fiber-optic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLL180T-M634 Fiber-optic Amplifier Base Unit is available for immediate purchase, ideal for industrial automation and safety applications.
