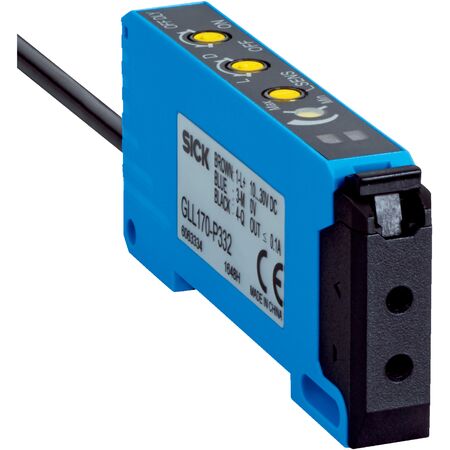

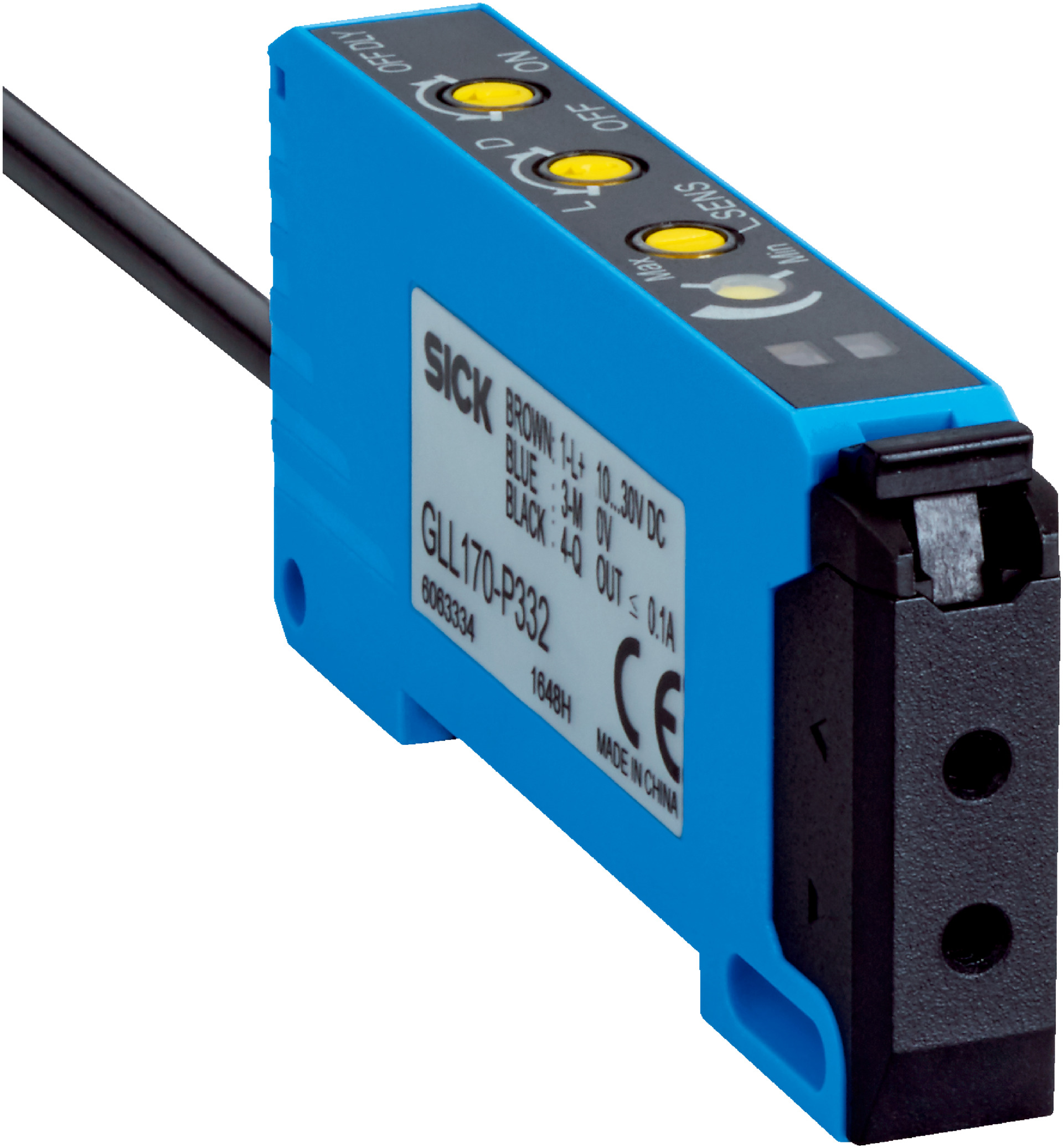

Fiber Optic Sensor Amplifier GLL170-P332 | IP66 Rated | 100,000 Hour LED Life | 2 kHz Switching Frequency | by SICK
The Fiber Optic Sensor Amplifier GLL170-P332 is designed for industrial automation, featuring a robust IP66-rated housing and a visible red LED light source at 632 nm. With a high switching frequency of 2 kHz and a response time of ≤ 250 µs, it ensures reliable object detection and machine safety. Ideal for material handling and quality control systems, this amplifier offers low power consumption and long service life, making it a smart choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Light source: LED, visible red light at 632 nm wavelength
- LED service life: 100,000 hours at 25 °C
- Digital output: 1 PNP output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: 2 kHz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic (PC/POM)
- Cable: 3-wire, 2 m length, PVC insulation
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Adjustable sensing range, switching mode, and switch-off delay via potentiometer
- LED indicators for power and digital output status
- High switching frequency of 2 kHz with response time ≤ 250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic housing with IP66 rating for harsh environments
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Material handling and packaging lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 30 mA current draw
- Long LED service life of approximately 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL170-P332 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety control applications.
