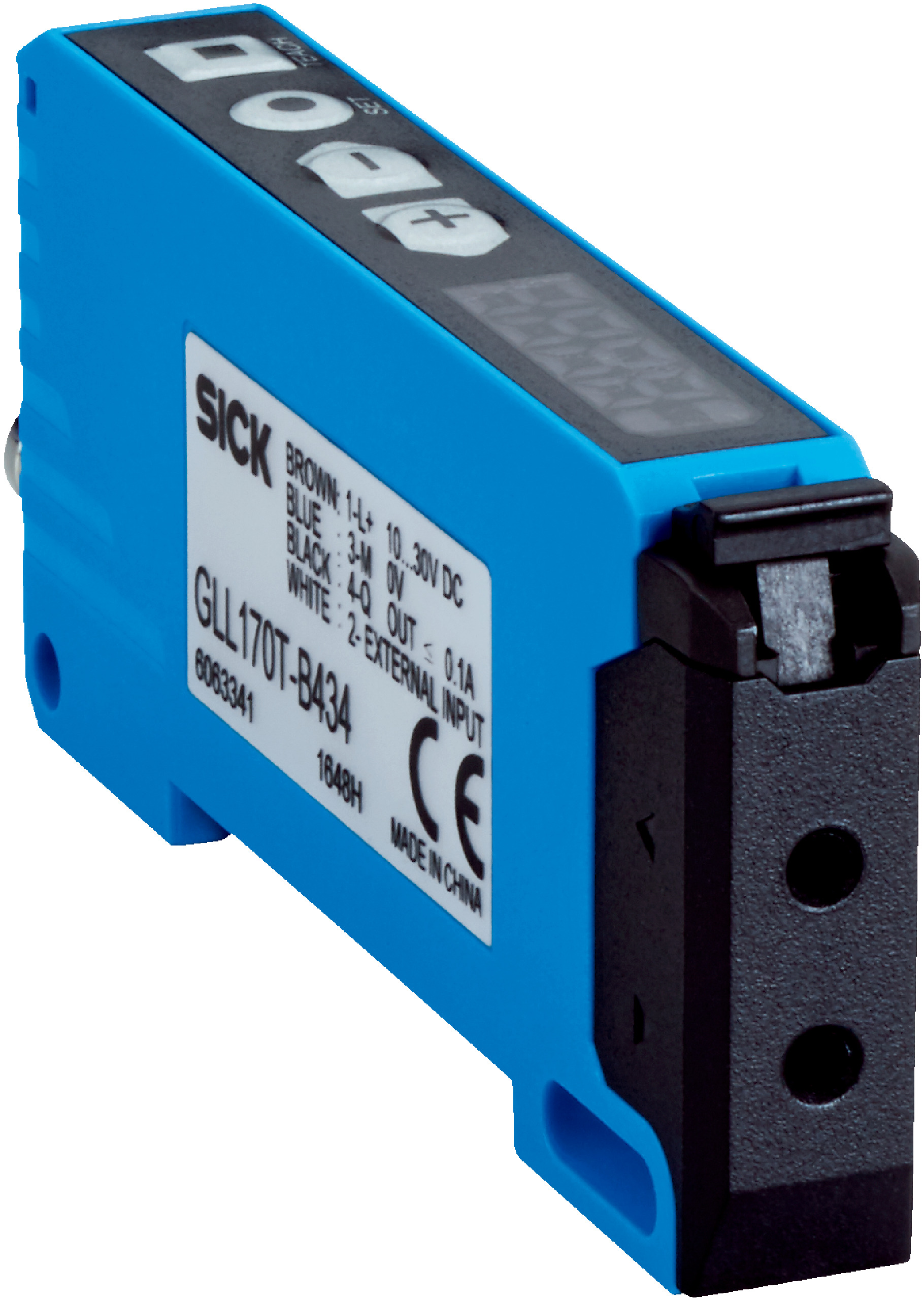

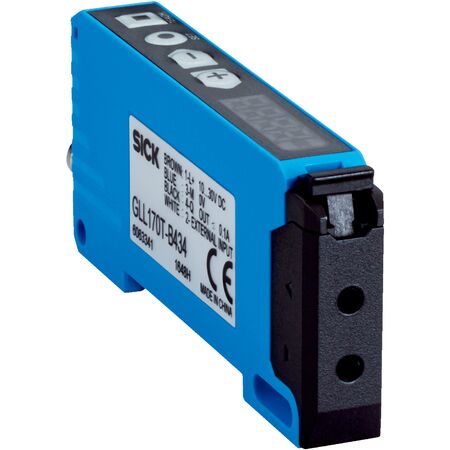

Fiber Optic Sensor Amplifier GLL170T-B333 | IP66 Rated | 10 kHz Switching Frequency | Visible Red LED | by SICK
The Fiber Optic Sensor Amplifier GLL170T-B333 is designed for industrial automation, featuring a high switching frequency of up to 10 kHz and an IP66 rated enclosure for dust and water resistance. With a visible red LED light source at 632 nm, it ensures reliable object detection and quality control in various applications, making it ideal for manufacturing processes and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Optic Sensor Amplifier GLL170T-B333 | IP66 Rated | 10 kHz Switching Frequency | Visible Red LED | by SICK
Brand: SICK
SKU: 6063342
Alternatively Known As: Fiber Optic Sensor Amplifier, Fiber Optic Amplifier Module, SICK GLL170T, Optical Fiber Amplifier
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Digital output: 1 PNP, light/dark switching
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- LED wavelength: 632 nm
- Protection class: III
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Display with green and yellow LEDs for operating and output status
- Programmable delay time from 0 ms to 9,999 ms
- Light/dark switching mode with PNP digital output
- High switching frequency up to 10 kHz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP66 rated enclosure for dust and water resistance
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with standards
- RoHS compliant and multiple international certifications
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging lines
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL170T-B333 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable fiber-optic detection.
