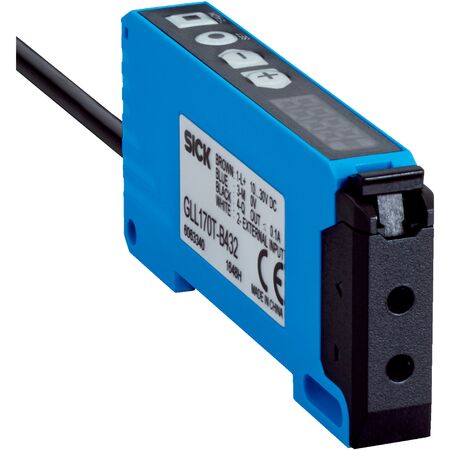

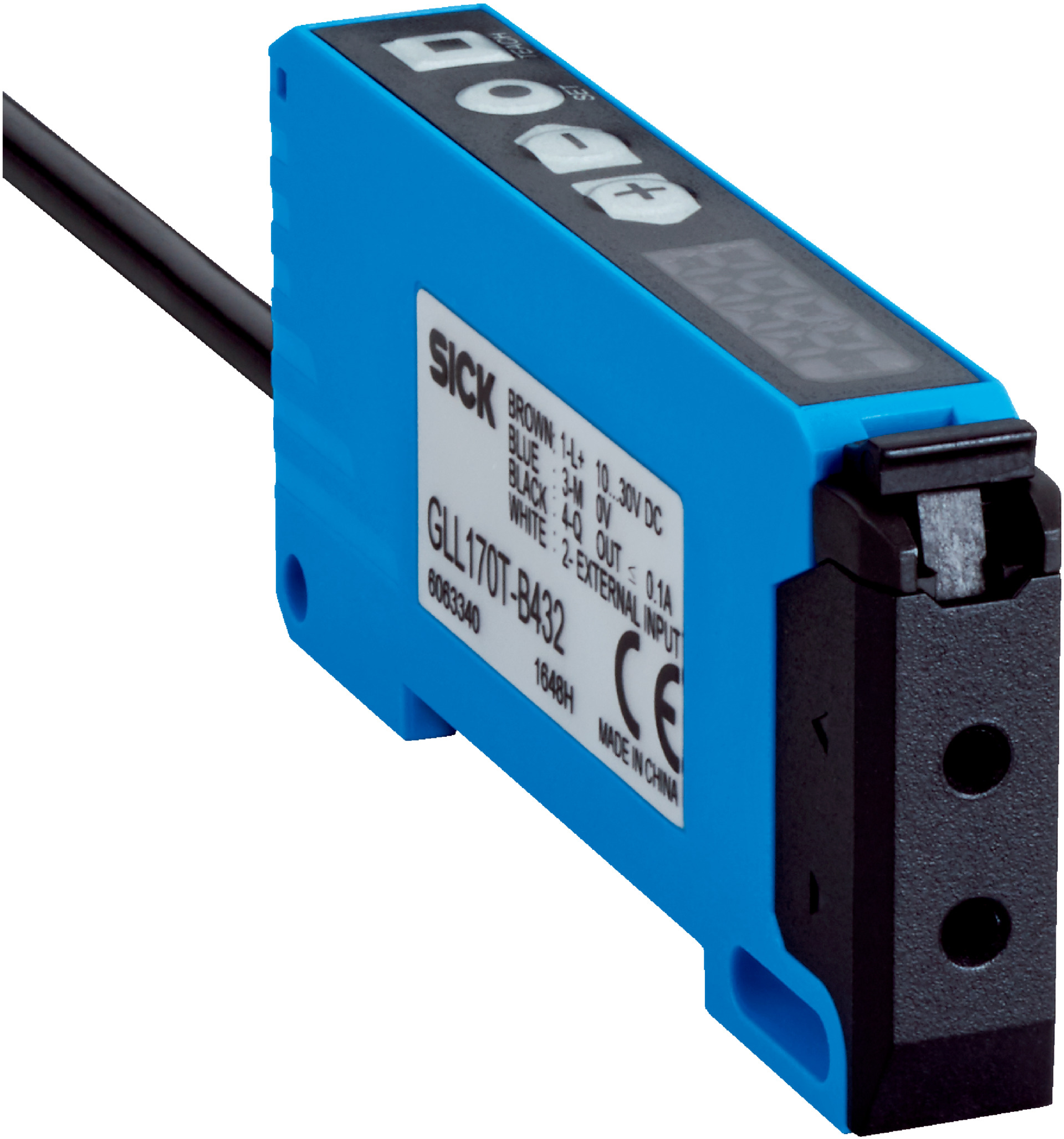

Fiber Optic Sensor Amplifier GLL170T-B432 | IP66 Rated | 10 kHz Switching Frequency | 632 nm LED Light | by SICK
The Fiber Optic Sensor Amplifier GLL170T-B432 is designed for industrial automation, featuring a high switching frequency of up to 10 kHz and a visible red LED light source at 632 nm. With an IP66 rating, it’s built to withstand harsh environments, making it ideal for object detection, quality control, and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Protection class: III
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- LED wavelength: 632 nm
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP66
- Cable: 4-wire, 2 m length, 0.2 mm² conductor size, Ø 3.8 mm diameter
- Housing material: Plastic (PC/POM)
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- Free group LED risk marking according to EN 62471 and IEC 62471
- Adjustable sensing range via wire/pin and configurable sensor parameters via display and operating buttons
- LED indicators for power and digital output status
- High switching frequency up to 10 kHz
- Programmable delay times from 0 ms to 9,999 ms
- Robust plastic housing with IP66 rating for harsh environments
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Reverse polarity, overcurrent, and short-circuit protected outputs
- RoHS compliant and multiple international certifications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL170T-B432 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
