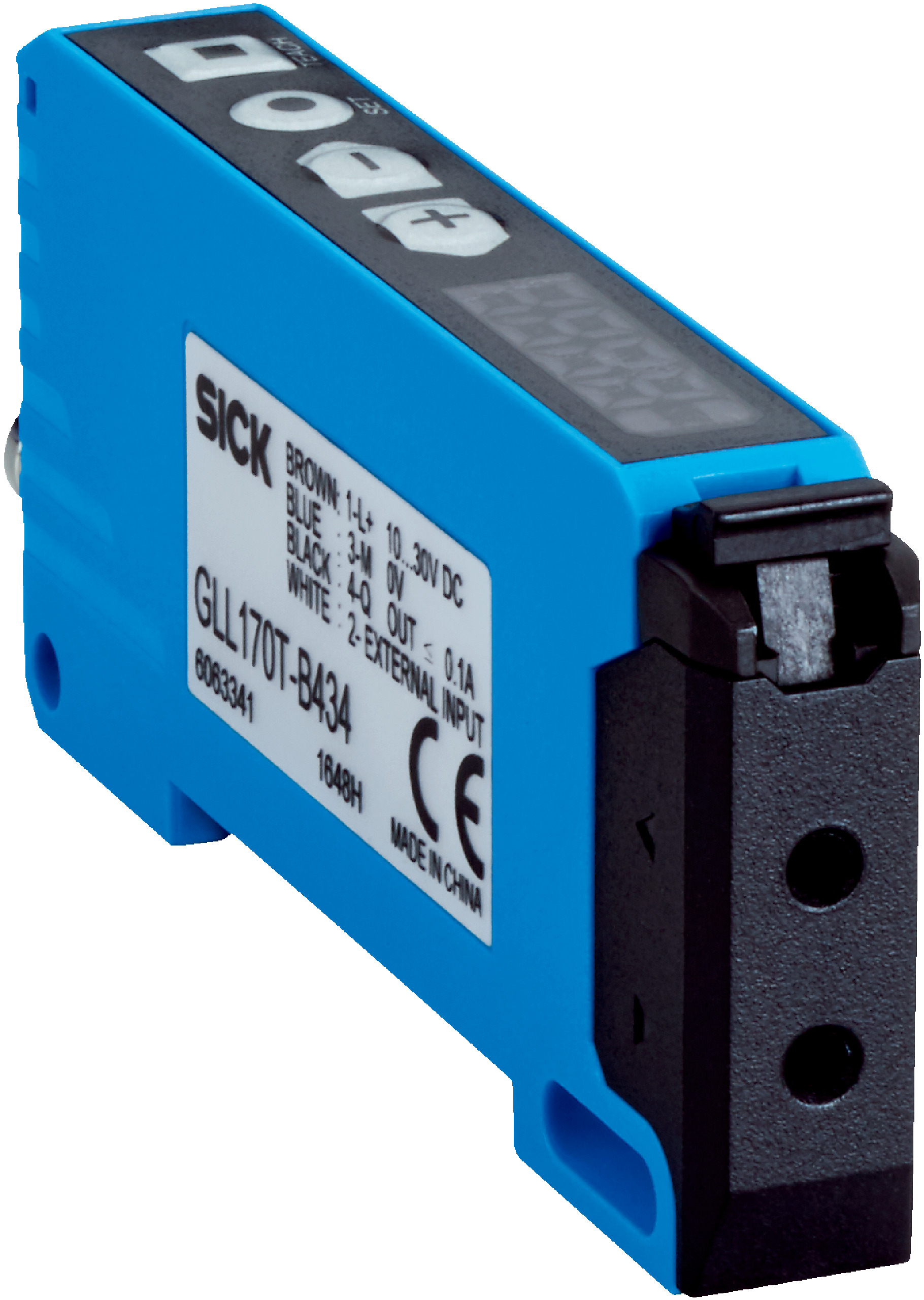

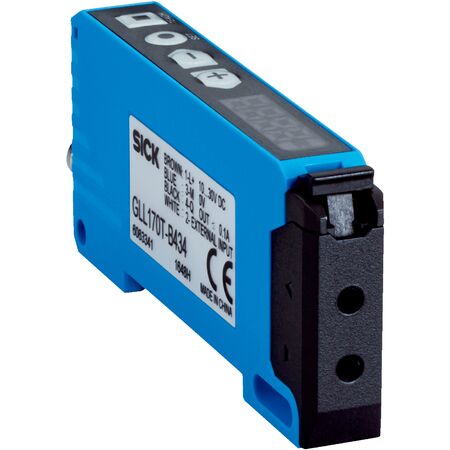

Fiber Optic Sensor Amplifier | High Switching Frequency | IP66 Rated | Adjustable Sensing Range | by SICK
The Fiber Optic Sensor Amplifier GLL170T-B434S04 is designed for industrial automation, featuring a high switching frequency of up to 10 kHz and an IP66 rating for robust protection. Ideal for quality control systems and material handling, this amplifier offers adjustable sensing range and reliable performance in challenging environments, ensuring efficient object detection and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic (PC/POM)
- Connection: Male M8, 4-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP66
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- Free LED risk group according to EN 62471 and IEC 62471
- Adjustable sensing range via wire/pin
- Display and operating buttons for sensor parameter configuration
- LED indicators for power and digital output status
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- High switching frequency up to 10 kHz
- Programmable delay time from 0 ms to 9,999 ms
- Robust plastic housing (PC/POM) with IP66 rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging lines
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL170T-B434S04 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and quality control applications.
