Fiber Optic Sensor Amplifier | Infrared LED 1300nm | Adjustable Sensing Range | IP50 Rated | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an infrared LED light source with a 1300 nm wavelength and adjustable sensing range. Ideal for safety monitoring and precise object detection, this robust amplifier offers high switching frequency and fast response time, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 35mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Infrared LED light source with 1300 nm wavelength
- Free LED risk group according to EN 62471 and IEC 62471
- Adjustable sensing range and synchronization via wire/pin
- Configurable sensor parameters via display and operating buttons
- Digital PNP output with light/dark switching and selectable switching mode
- Protection against reverse polarity, overcurrent, and short-circuit
- High switching frequency up to 31.2 kHz and fast response time ≤ 16 µs
- Robust plastic ABS/PC housing with IP50 rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- RoHS compliant and multiple international conformity certificates
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use in environments requiring precise sensing with fiber-optic cables
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

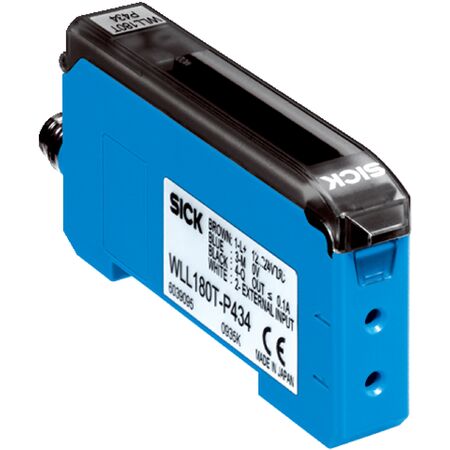

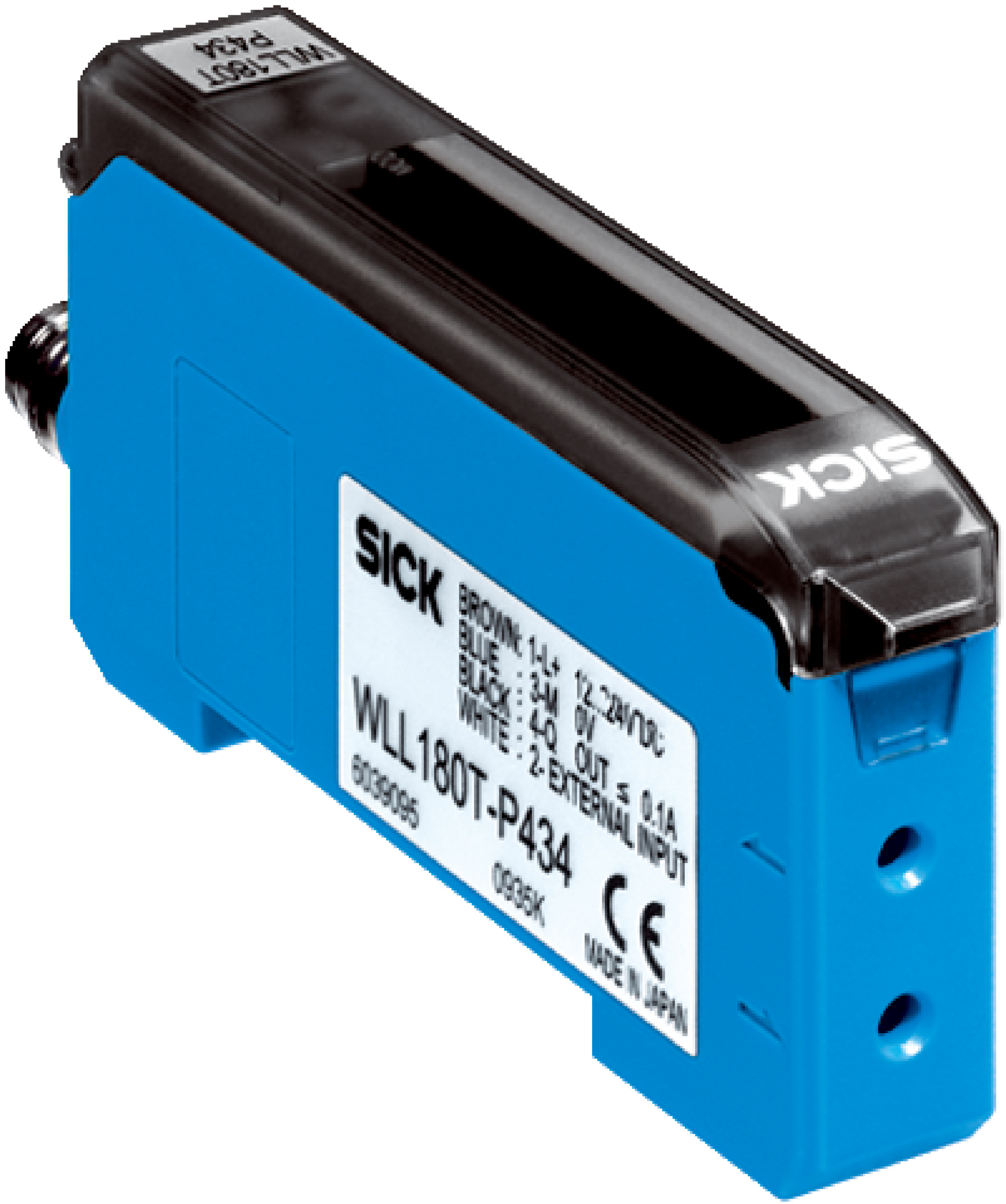

The SICK WLL180T-P474S01 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
