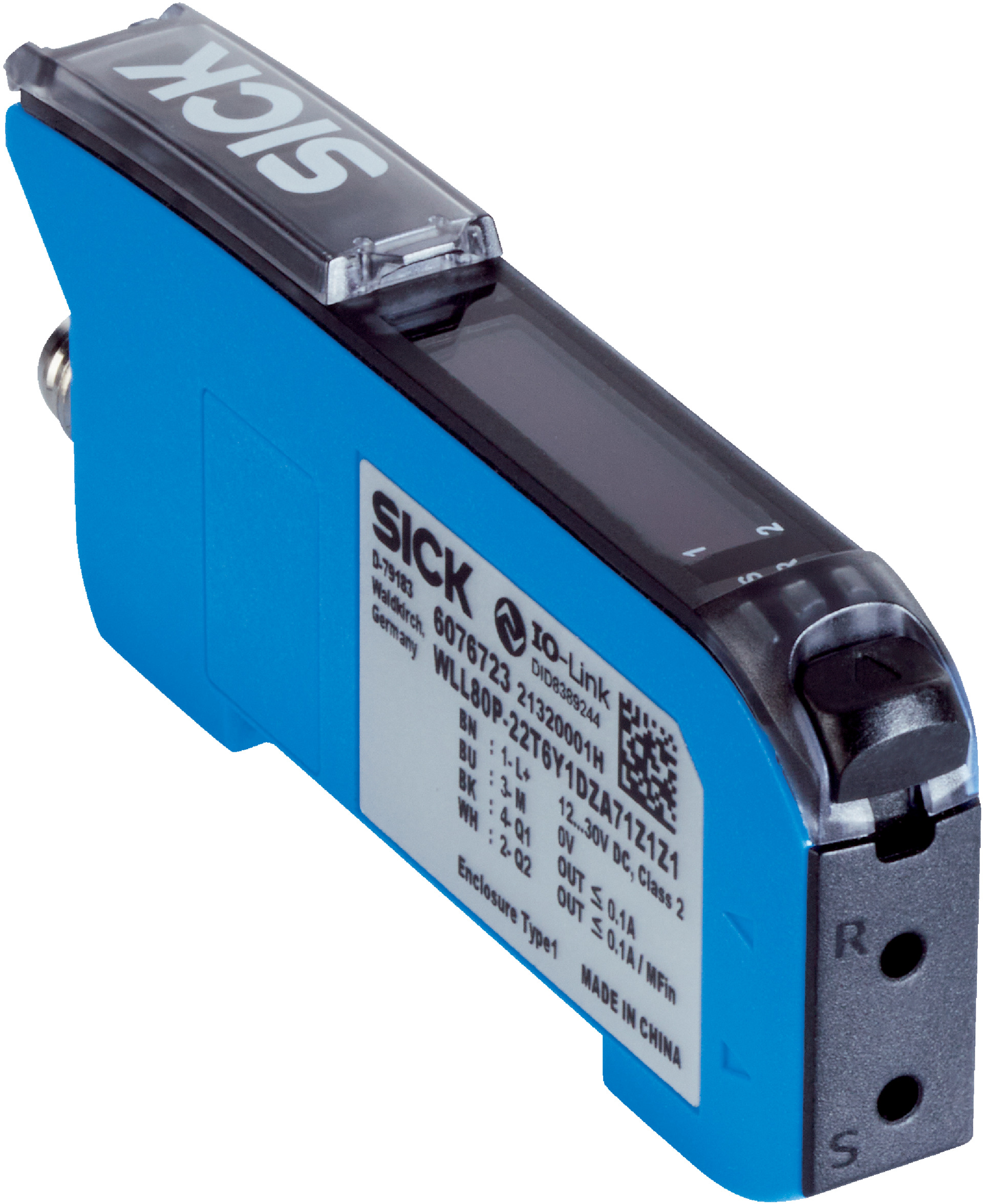

Fiber Optic Sensor Amplifier | Infrared LED 1450 nm | IO-Link V1.1 Communication | IP54 Rated | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring an infrared LED light source with a 1450 nm wavelength and an impressive average service life of 100,000 hours. With IO-Link V1.1 communication for fast data transmission and two adjustable push-pull digital outputs, this amplifier is perfect for object detection and process control in various applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Optic Sensor Amplifier | Infrared LED 1450 nm | IO-Link V1.1 Communication | IP54 Rated | by SICK
Brand: SICK
SKU: 6083350
Alternatively Known As: Fiber optic sensor amplifier, Optical fiber amplifier, SICK fiber optic sensor, Industrial fiber optic amplifier
Technical Specifications
- Device type: Fiber-optic amplifier, stand-alone
- Light source: Infrared LED, wavelength 1450 nm
- Average LED service life: 100,000 hours at 25°C
- Sensing range: Dependent on optical fiber cable used
- Communication: IO-Link V1.1, COM3 (230.4 kbit/s), cycle time 0.5 ms
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching, max 100 mA output current
- Supply voltage: 12 V DC to 30 V DC, ripple ±10%
- Response time: ≤16 µs
- Switching frequency: up to 31.2 kHz
- Protection class: III
- Enclosure rating: IP54
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Material: Plastic housing (PC), protective hood (PC), elastomer operating buttons, metal nickel-plated brass connector
- Dimensions (H x L x W): 33.2mm x 79.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with adjustable sensing range depending on optical fiber cable used
- Infrared LED light source with 1450 nm wavelength and 100,000 hours average service life
- IO-Link V1.1 communication interface with fast data transmission and configurable sensor parameters
- Two individually adjustable push-pull digital outputs (PNP/NPN) with light/dark switching
- Compact plastic housing with IP54 protection rating
- Multi-language display for sensor function configuration
- Robust against shock (50 g) and vibration (10 Hz to 55 Hz)
- Comprehensive circuit protection including reverse polarity, overcurrent, and short-circuit protection
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with fiber-optic sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Process control with fiber-optic sensing
- Machine safety and monitoring
- Factory and production line sensor integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable design reduces environmental impact through extended product lifespan
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now

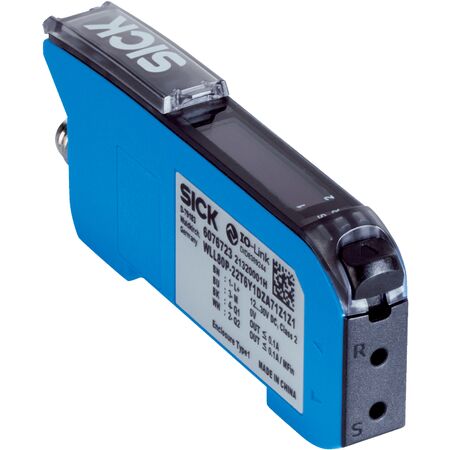

The SICK WLL80I-22T6Y4DZA71Z1Z1 fiber-optic amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
