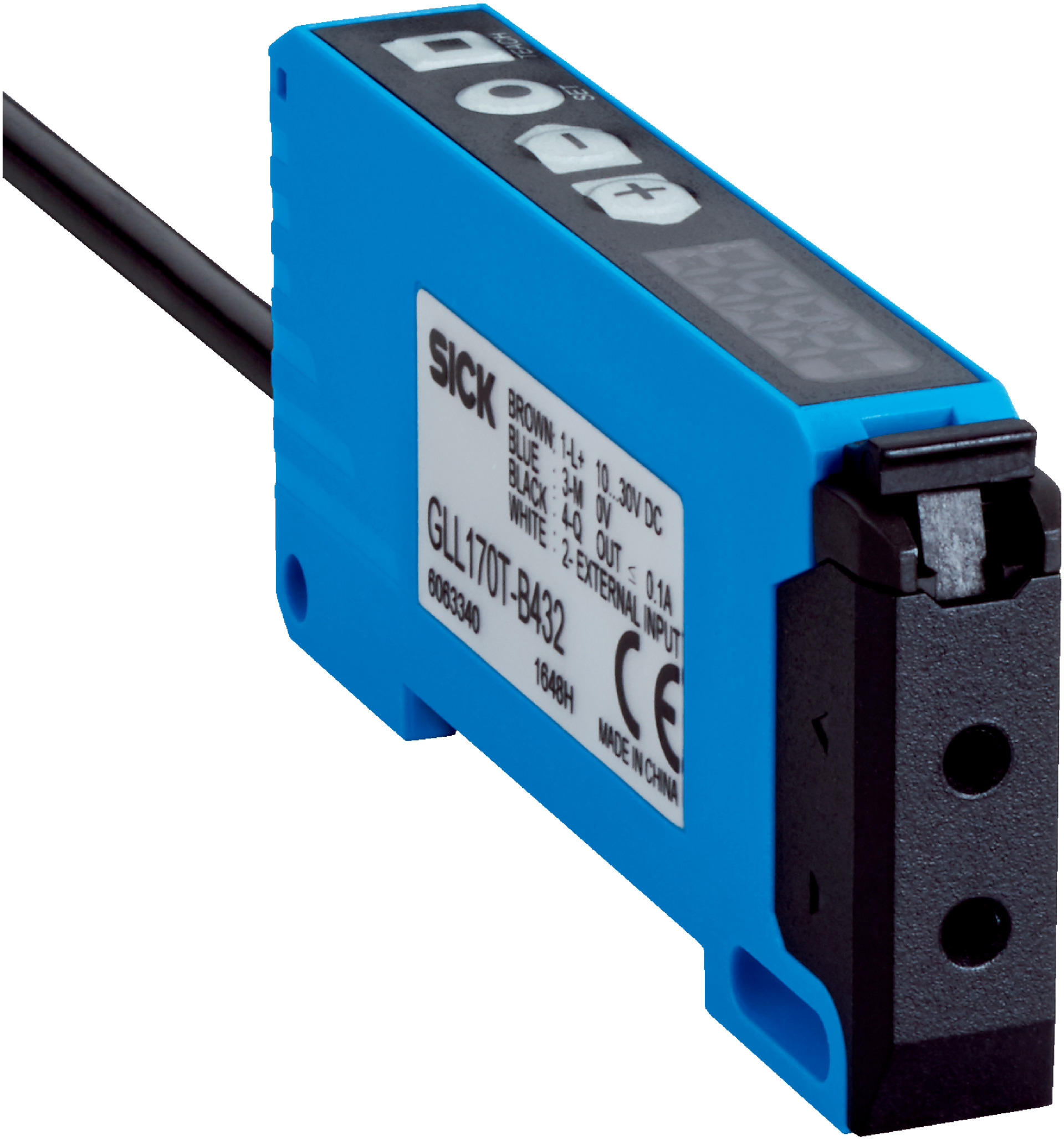

Fiber Optic Sensor Amplifier | IP66 Rated | 10 kHz Switching Frequency | Adjustable Sensing Range | by SICK
The Fiber Optic Sensor Amplifier is designed for industrial automation, featuring a high switching frequency of up to 10 kHz and an IP66 rated enclosure for dust and water protection. With a visible red LED light source and adjustable sensing range, it's perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Digital output: 1 PNP, light/dark switching
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic (PC/POM)
- Cable: 4-wire, 2 m length, PVC
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP66
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- Free group LED risk marking compliant with EN 62471
- Adjustable sensing range via wire/pin and configurable sensor parameters
- LED indicators for power and digital output status
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- High switching frequency up to 10 kHz
- IP66 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +55°C
- Robust against shock and vibration
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Use with optical fiber cables for sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

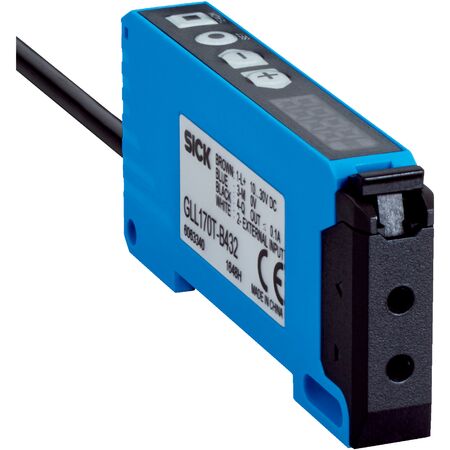

The SICK GLL170T-B432S10 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and sensing applications.
