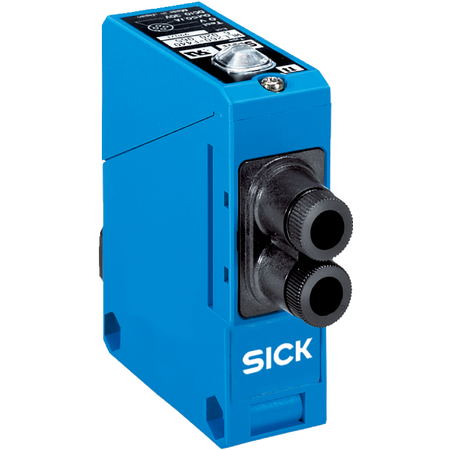

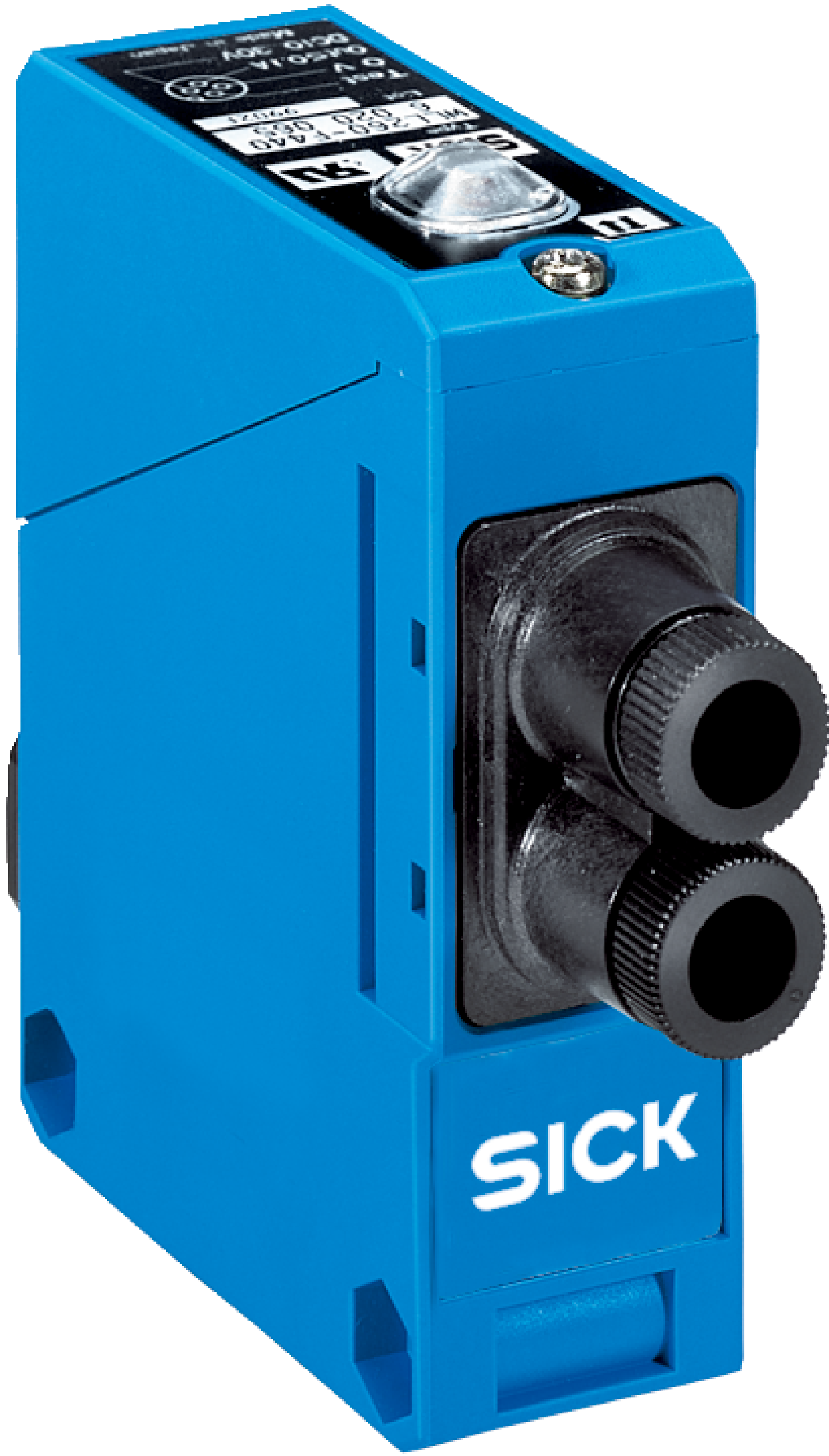

Fiber Optic Sensor Amplifier WLL260-F240 | IP66 Rated | 700 Hz Switching Frequency | Fast Response Time | by SICK
The Fiber Optic Sensor Amplifier WLL260-F240 is designed for industrial automation, featuring a high switching frequency of 700 Hz and a fast response time of ≤ 0.7 ms. With an IP66 enclosure rating, it withstands harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes. Its adjustable potentiometer allows for precise sensitivity tuning, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber Optic Sensor Amplifier, Fiber Optic Proximity Sensor, SICK Fiber Optic Amplifier
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Response time: ≤ 0.7 ms
- Switching frequency: 700 Hz
- Protection class: II
- Enclosure rating: IP66
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Housing material: Plastic, ABS
- Weight: 120 g
- Connection type: Cable gland
- Dimensions (H x L x W): 78mm x 63mm x 25mm
- Weight: 0.12 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Adjustable potentiometer with 270° rotation for sensitivity tuning
- High switching frequency of 700 Hz and fast response time ≤ 0.7 ms
- Robust plastic ABS housing with IP66 enclosure rating for harsh environments
- Includes mounting bracket BEF-W260 for easy installation
- Selectable light/dark switching mode with LED indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Proximity sensing in manufacturing processes
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLL260-F240 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
