Fiber Optic Sensor Amplifier | NPN Output | IP66 Rated | 10 kHz Switching Frequency | by SICK

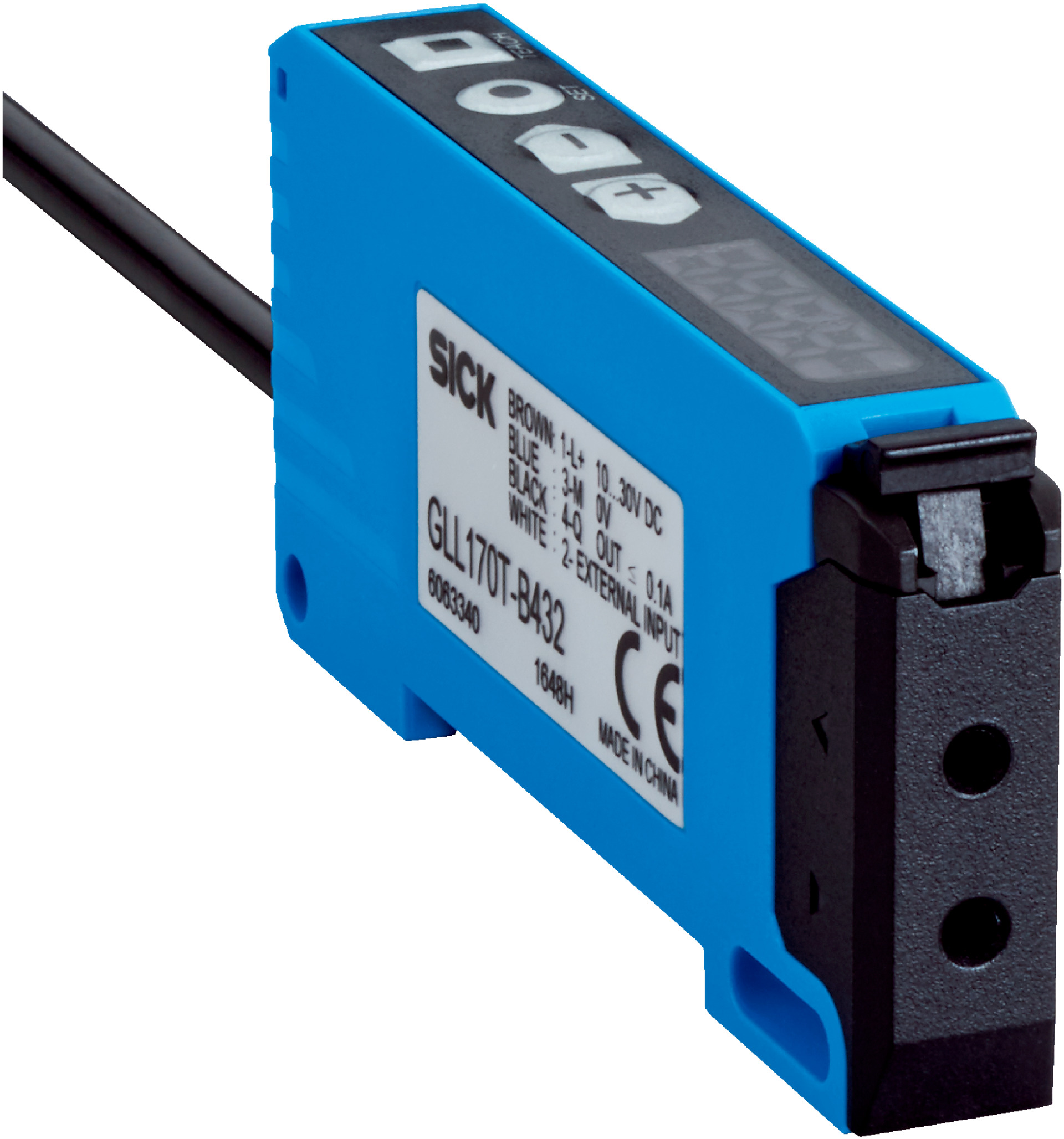

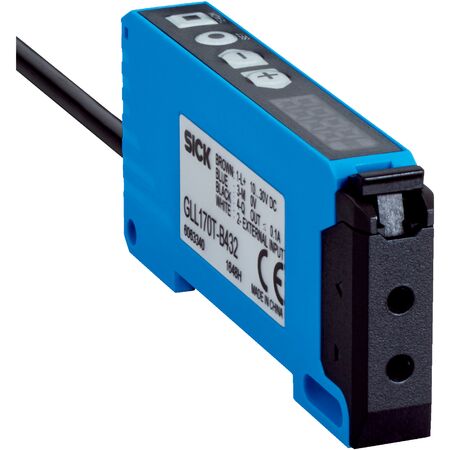

The Fiber Optic Sensor Amplifier GLL170T-B432S01 is designed for industrial automation, featuring a preprogrammed NPN output and an impressive switching frequency of up to 10 kHz. With an IP66 rating, it withstands harsh environments, making it ideal for object detection and quality control systems. Its robust design and energy-efficient LED ensure long service life and minimal maintenance, perfect for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 40 mA
- Output type: NPN preprogrammed
- Switching mode: Light/dark switching
- Response time: ≤ 250 µs
- Switching frequency: up to 10 kHz
- LED wavelength: 632 nm visible red light
- Protection class: III
- Enclosure rating: IP66
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 4-wire, 2 m length, 0.2 mm² conductor size
- Housing material: Plastic PC/POM
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for power and digital output status
- Output type preprogrammed to NPN
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Programmable delay time from 0 ms to 9,999 ms
- High switching frequency up to 10 kHz
- Robust plastic housing with IP66 rating for harsh environments
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance of 50 g and vibration resistance compliant with EN standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Material handling and packaging lines
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by lowering failure rates and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLL170T-B432S01 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
