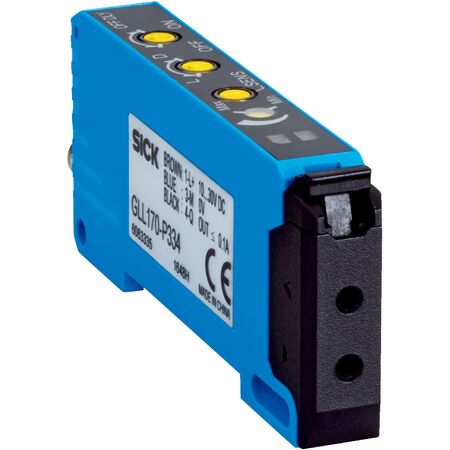

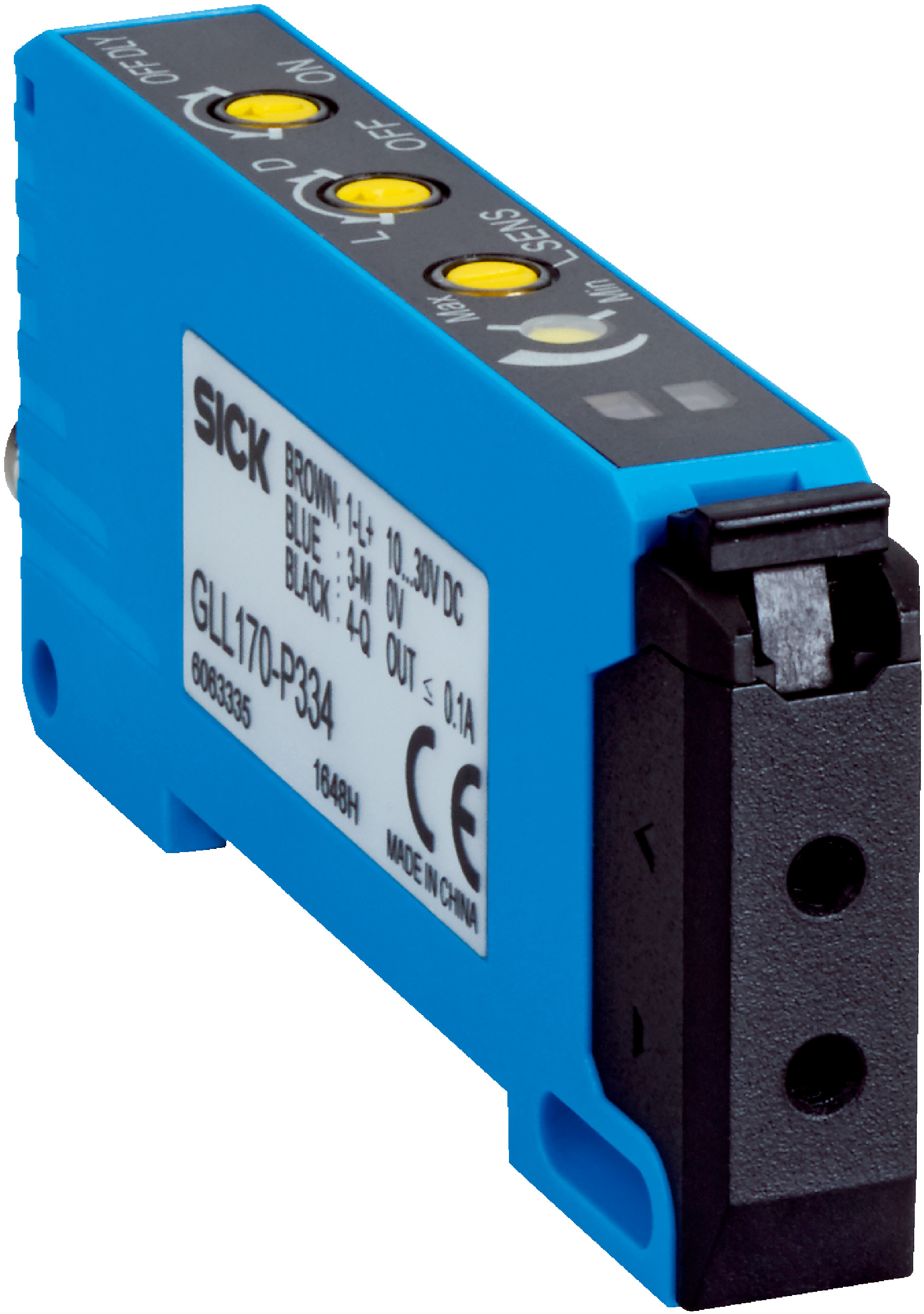

Fiber Optic Sensor Amplifier | Stand-Alone Design | IP66 Rated | 632 nm LED Light | by SICK
The Fiber Optic Sensor Amplifier GLL170-P334S06 is designed for industrial automation, featuring a robust stand-alone design with a visible red LED light source at 632 nm. With a rapid response time of ≤ 250 µs and a switching frequency of up to 2 kHz, it ensures reliable object detection and machine safety. Ideal for quality control and inspection systems, this amplifier is built to withstand harsh environments with an IP66 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA
- Protection class: III
- Digital output: 1 PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 250 µs
- Switching frequency: 2 kHz
- LED wavelength: 632 nm
- Operating temperature: -25 °C to +55 °C
- Enclosure rating: IP66
- Housing material: Plastic (PC/POM)
- Connection: Male M8, 4-pin connector
- Weight: 19 g
- Dimensions (H x L x W): 31.7mm x 72.5mm x 10mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier
- Visible red LED light source with 632 nm wavelength
- LED risk group marking: Free group
- Potentiometer for setting sensing range, switching mode, and switch-off delay
- LED indicators for power and digital output status
- Digital PNP output with light/dark switching mode
- Short-circuit, overcurrent, and reverse polarity protected outputs
- Response time ≤ 250 µs and switching frequency up to 2 kHz
- Robust plastic housing with IP66 rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Shock resistance 50 g and vibration resistance 10 Hz to 55 Hz
- Includes BEF-WLL180 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Material handling and packaging lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of 100,000 hours reduces waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLL170-P334S06 Fiber-optic Amplifier is available for immediate purchase, ideal for industrial automation and safety control applications.
