Fiber Optic Sensor Base Unit | Proximity Detection | LED Status Display | IP50 Rated | by SICK
The Fiber Optic Sensor Base Unit is designed for precise proximity detection in industrial automation. With a sensing range of up to 30 mm and a fast response time of 16 µs, it ensures reliable performance in machine safety and process control applications. Featuring an LED status display and robust VISTAL® housing, this sensor is built for durability and efficiency, making it ideal for various fiber-optic sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ≤10% ripple
- Current consumption: ≥50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Jitter: 8 µs
- Number of switching outputs: 1 PNP output
- Switching mode: Light/dark switching
- Output current max: 100 mA
- Input types: Blanking input and light/dark input
- Retention time: 25 ms non-volatile memory
- Protection: Reverse polarity, short-circuit, overcurrent, interference pulse suppression
- Housing material: VISTAL®
- Connection: Male M8, 4-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP50
- Dimensions (H x L x W): 33mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- LED status display with dual 4-character digital displays showing set and actual values simultaneously
- Sensing range up to 30 mm with proximity system
- White LED light source with approx. 65° angle of dispersion
- 1-point, 2-point, and dynamic teach-in modes
- Multi-function input and base unit for BUS mode
- Adjustable delay time
- Protection class III with reverse polarity, short-circuit, and overcurrent protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Fiber-optic sensing applications
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 12-24 V DC supply voltage
- Durable housing material (VISTAL®) for long service life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

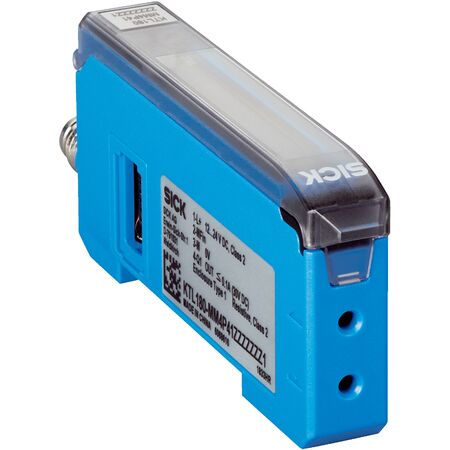

The SICK KTL180-MM4P41ZZZZZ fiber-optic base unit sensor is available for immediate purchase, ideal for industrial automation and safety applications.
