Fiber Optic Sensor Cable | 90° Deflection Head | Proximity System | Multi-Fiber Core | by SICK

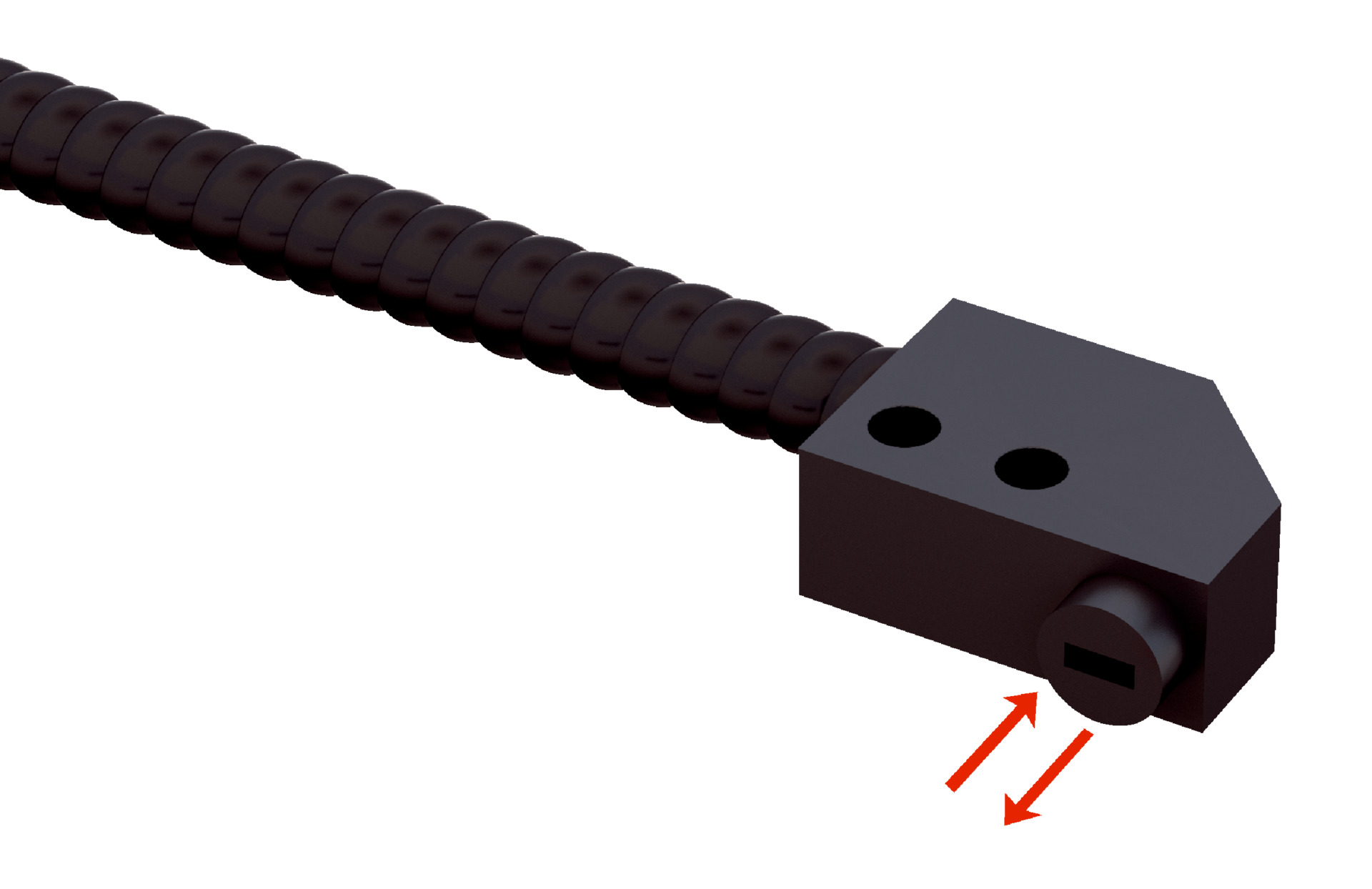

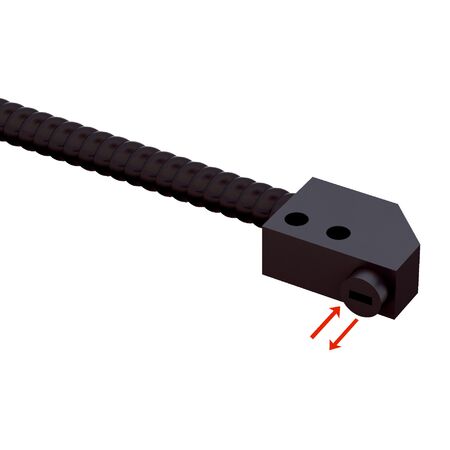

The Fiber Optic Sensor Cable LL3-LM36150 features a flat type, 90° deflection head and operates on a proximity system, making it ideal for industrial automation and object detection. With a multi-fiber core structure and compatibility with infrared light, this cable ensures reliable performance in various sensing applications, while its durable materials reduce electromagnetic interference and energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 150 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T: 50 mm to 260 mm depending on operating mode
- Sensing ranges with GLL170: 97 mm
- Sensing ranges with GLL170T: 132 mm to 229 mm depending on operating mode
- Dimensions (H x L x W): 10mm x 150mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Proximity system functional principle
- Multi-fiber core structure with glass fibers
- Radial light emission from chrome-plated metal coil head
- Compatible with infrared light
- No integrated lens or tip adapters required
- Bending radius of 20 mm, fiber length 150 mm
- Operating temperature range from –10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper integration and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-electrical sensing reduces electromagnetic interference and energy consumption
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-LM36150 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
