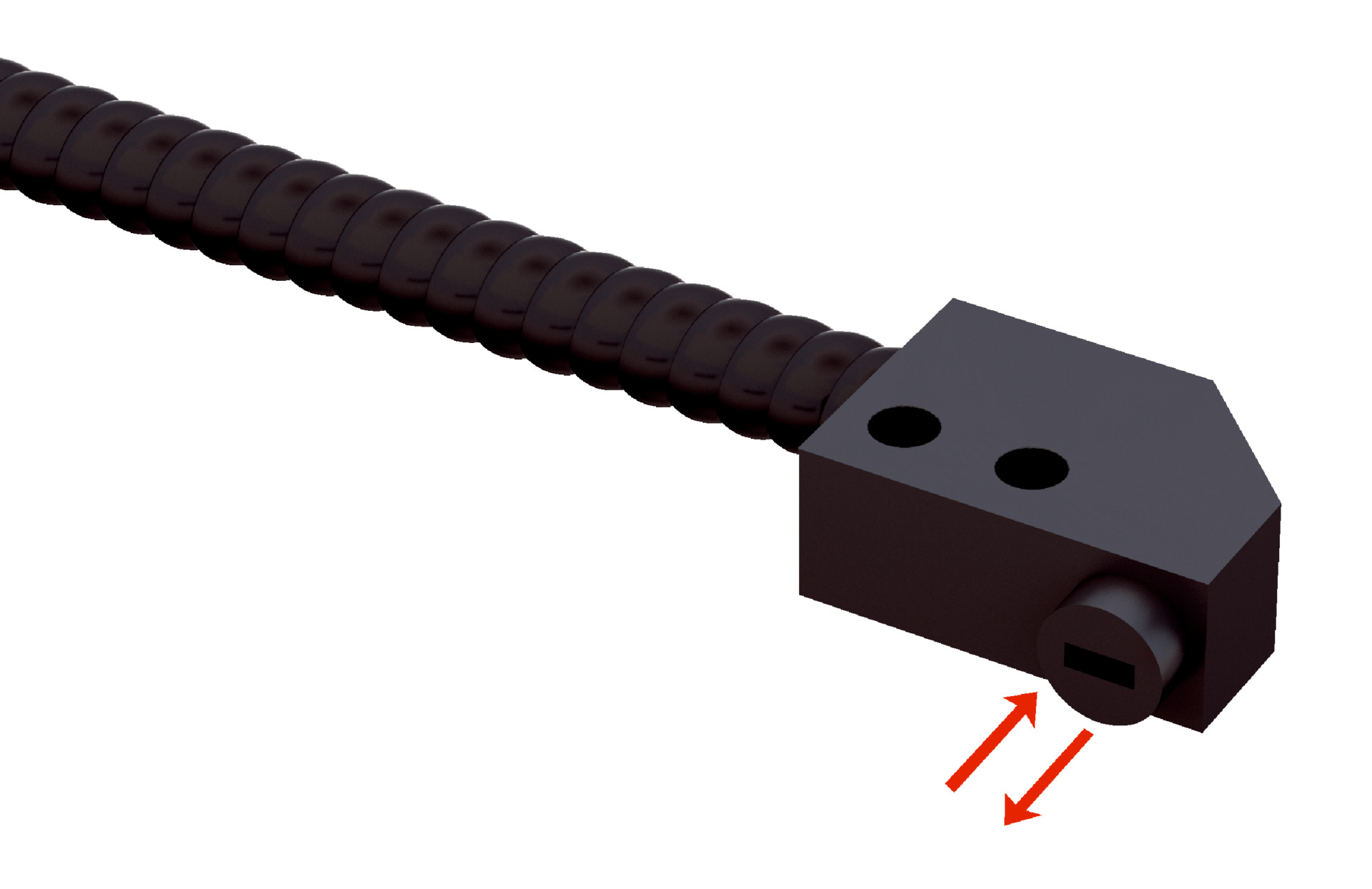

Fiber Optic Sensor Cable | Heat Resistant Up to 200°C | 90° Deflection Head | Multi-Fiber Glass Core | by SICK
The Fiber Optic Sensor Cable is designed for high-temperature environments, capable of withstanding temperatures up to 200°C. Featuring a flat type, 90° deflection head and radial light emission from an aluminum optical fiber head, this cable is perfect for industrial automation proximity sensing. Its multi-fiber glass core with a stainless steel sheath ensures durability and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range: Depending on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Aluminum
- Light emission: Radial
- Fiber length: 10,000 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –40 °C to +200 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Heat-resistant up to 200°C
- Radial light emission from aluminum optical fiber head
- Multi-fiber glass core with stainless steel sheath
- 60° angle of dispersion
- Compatible with infrared light without adapter end sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards to ensure proper integration and safety.
Applications
- Industrial automation proximity sensing
- High temperature environments (≥100°C)
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance minimizes energy loss and improves system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now

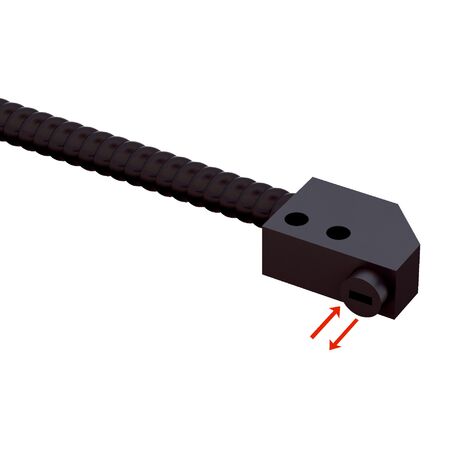

The SICK LL3-DH5010000 fiber-optic cable is available for immediate purchase, ideal for industrial automation and high-temperature sensing applications.
