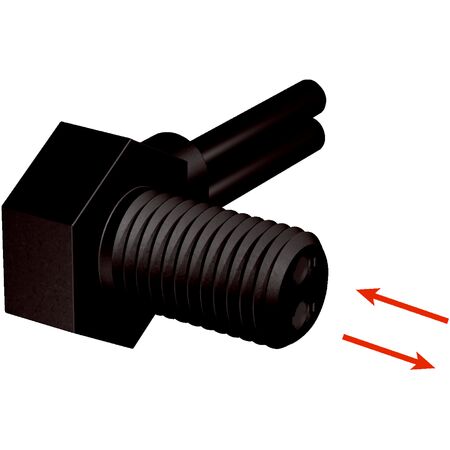

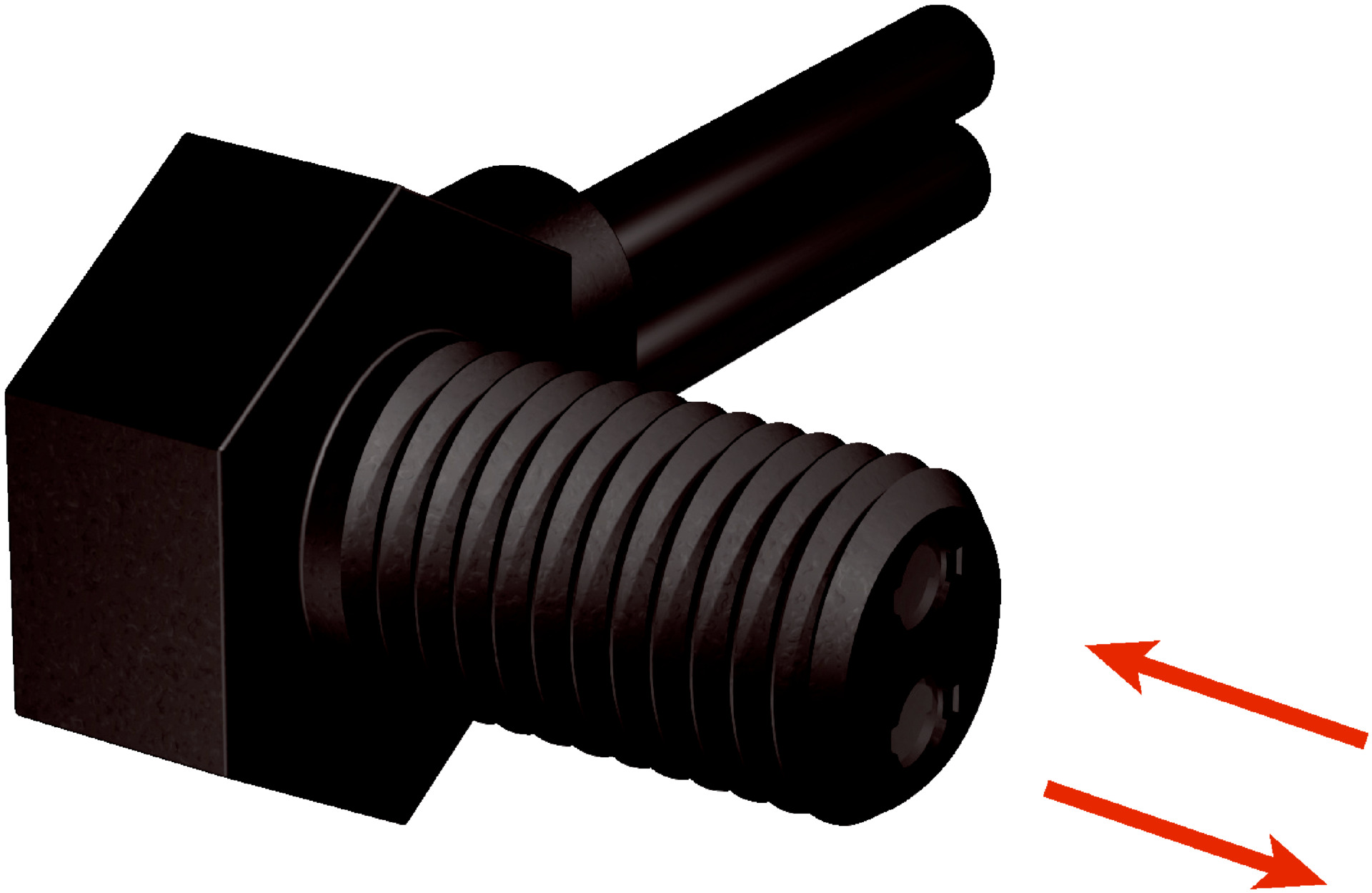

Fiber Optic Sensor Cable LL3-DV06 | Heat Resistant Up to 105°C | 90° Deflection | 2000 mm Length | by SICK
The LL3-DV06 fiber optic sensor cable is designed for industrial automation proximity sensing, featuring a heat resistance of up to 105°C and a unique threaded sleeve with 90° deflection. With a minimal object detection diameter of just 0.015 mm and a radial light emission, this cable is perfect for use in harsh environments and with compatible fiber-optic amplifiers, ensuring reliable performance in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Sensing range max: 540 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 15.94°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Light emission: Radial
- Thread diameter (housing): M6
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Single fiber
- Material optical fiber head: Polyamid (PA)
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40°C to +105°C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and 90° deflection
- Heat-resistant up to 105°C
- Compatible with multiple fiber-optic amplifiers
- Minimal object detection diameter of 0.015 mm
- Radial light emission with integrated lens
- Optical fiber cable can be shortened
- Single fiber core structure with 2,000 mm fiber length
- Bending radius of 25 mm
- Polyamid (PA) optical fiber head and polyethylene (PE) sheath
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Industrial automation proximity sensing
- Heat-resistant environments up to 105°C
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance reduces energy consumption for cooling in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DV06 fiber-optic cable is available for immediate purchase, ideal for industrial automation and heat-resistant sensing applications.
