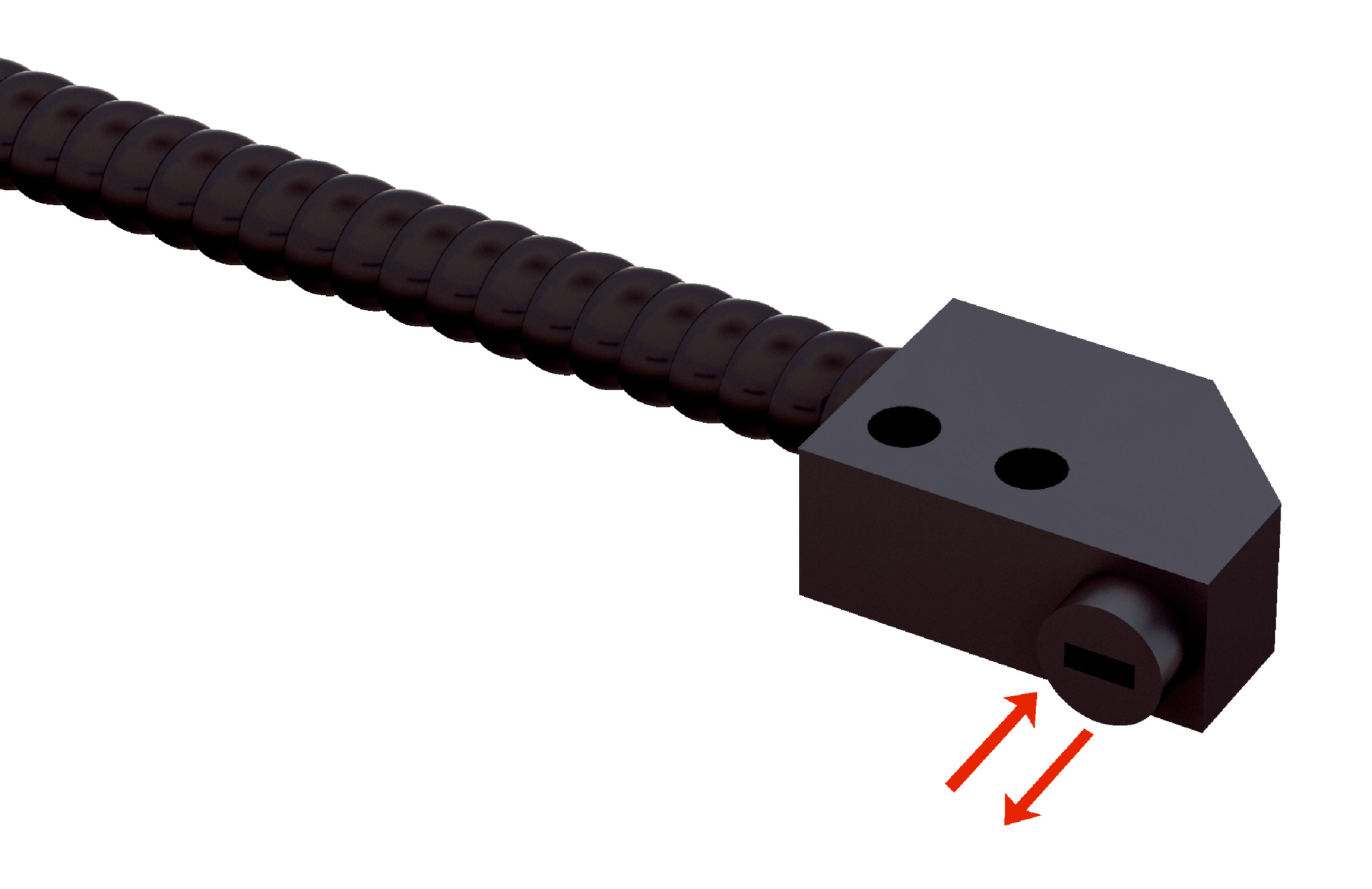

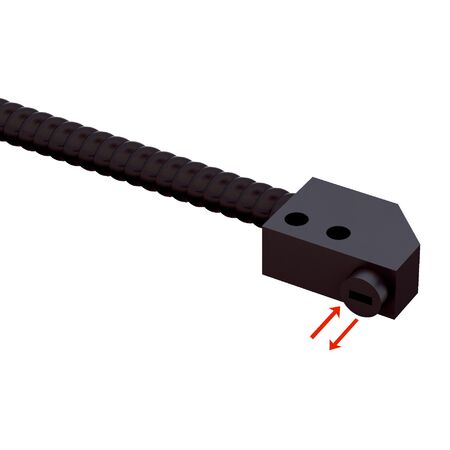

Fiber Optic Sensor Cable LL3-DH50500 | Heat Resistant Up to 200°C | 90° Deflection Head | by SICK
The Fiber Optic Sensor Cable LL3-DH50500 is designed for industrial automation with a heat resistance of up to 200°C, making it ideal for high-temperature environments. Featuring a flat type, 90° deflection head and compatibility with infrared light, this cable ensures reliable proximity sensing. Built with a multi-fiber glass core and stainless steel sheath, it offers durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Aluminum
- Light emission: Radial
- Fiber length: 500 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –40 °C to +200 °C
- Sensing ranges with WLL180T: 40 mm to 120 mm depending on operating mode
- Sensing ranges with GLL170: 115 mm
- Sensing ranges with GLL170T: 100 mm to 205 mm depending on operating mode
- Dimensions (H x L x W): 10mm x 500mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Heat-resistant up to 200°C
- Compatible with infrared light
- Radial light emission from aluminum optical fiber head
- Multi-fiber glass core with stainless steel sheath
- Bending radius of 20 mm, fiber length 500 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and operation.
Applications
- Industrial automation proximity sensing
- Heat-resistant environments up to 200°C
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance minimizes energy loss in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DH50500 fiber-optic cable is available for immediate purchase, ideal for industrial automation and heat-resistant sensing applications.
