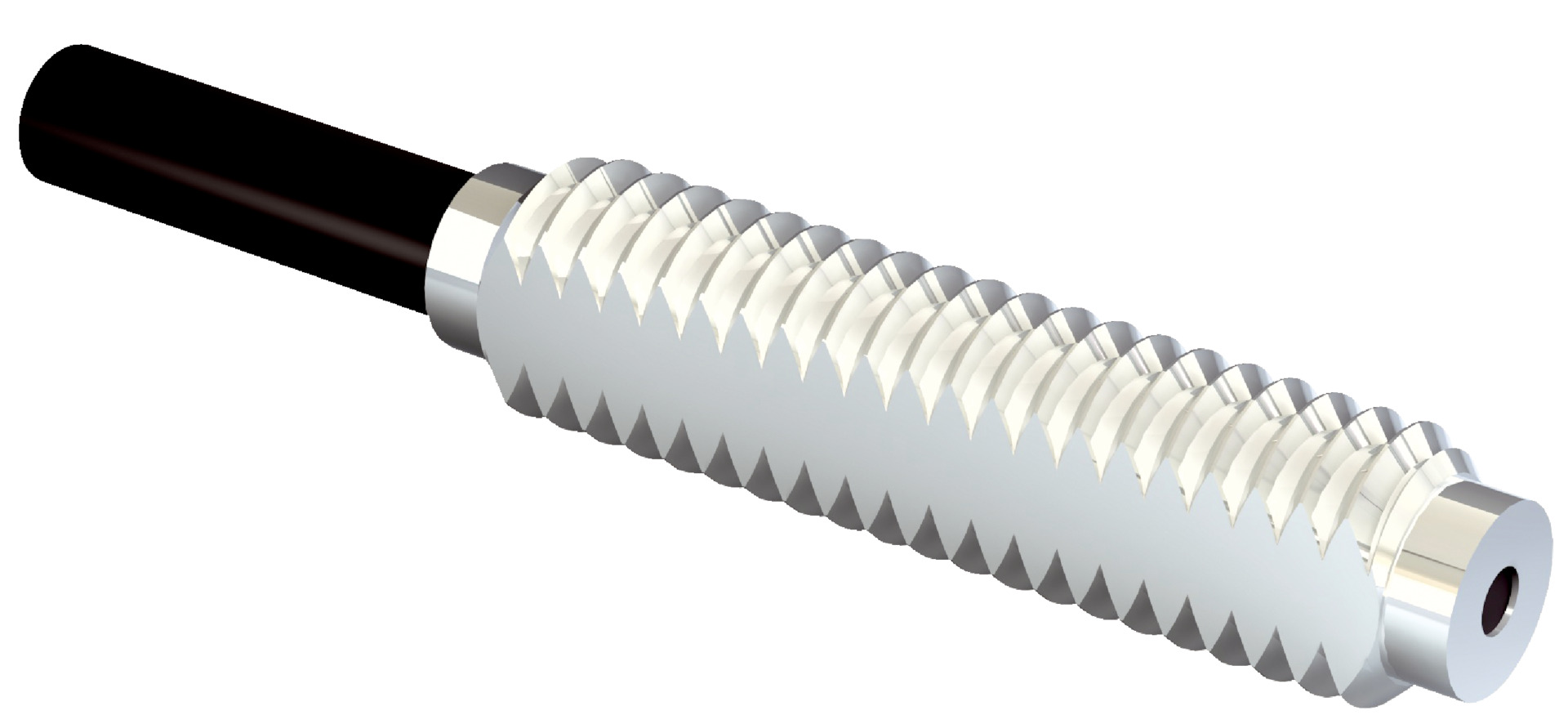

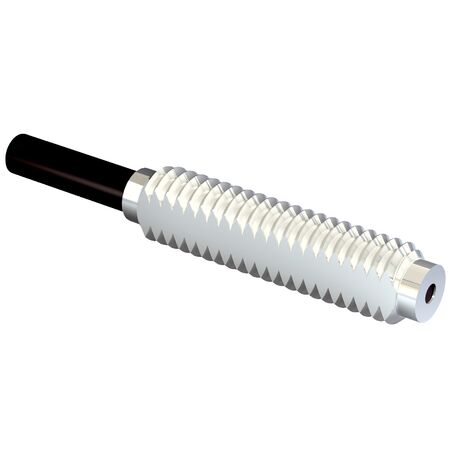

Fiber Optic Sensor Cable LL3-TH02 | Heat-Resistant Up to 180°C | Through-Beam System | Stainless Steel Design | by SICK
The LL3-TH02 fiber optic sensor cable is designed for industrial sensing applications, featuring a heat-resistant design that operates in temperatures from -40°C to +180°C. With a through-beam system and a durable stainless steel threaded sleeve, this cable ensures reliable performance in demanding environments. Ideal for use with compatible fiber-optic amplifiers, it offers a sensing range of up to 3,600 mm, making it perfect for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, stainless steel
- Application: Heat-resistant (≥100°C), ambient operating temperature -40°C to +180°C
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max: Up to 3,600 mm with WLL80 at 8 ms operating mode
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Optical fiber cable length: 2,000 mm
- Bending radius: 35 mm
- Outside diameter of optical fiber cable: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure diameter: 1.5 mm
- Fiber cable can be shortened: Yes
- Included with delivery: Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter
- Dimensions (H x L x W): 40mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design made of stainless steel
- Heat-resistant up to 180°C ambient operating temperature
- Axial light emission with 60° angle of dispersion
- Fiber-optic cable length of 2,000 mm with 2.2 mm outside diameter
- Fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Environments with ambient operating temperatures from -40°C to +180°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TH02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber-optic solutions.
