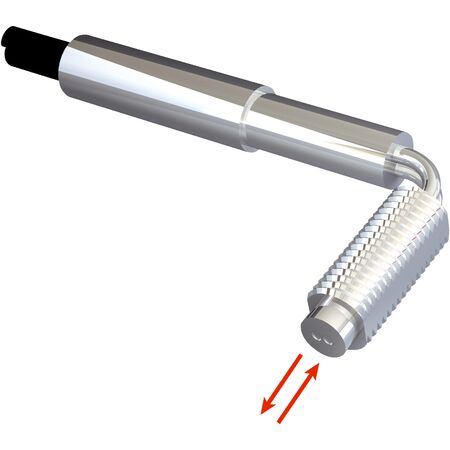

Fiber Optic Sensor Cable LL3-DB09 | 90° Deflection Design | 1,100 mm Sensing Range | by SICK

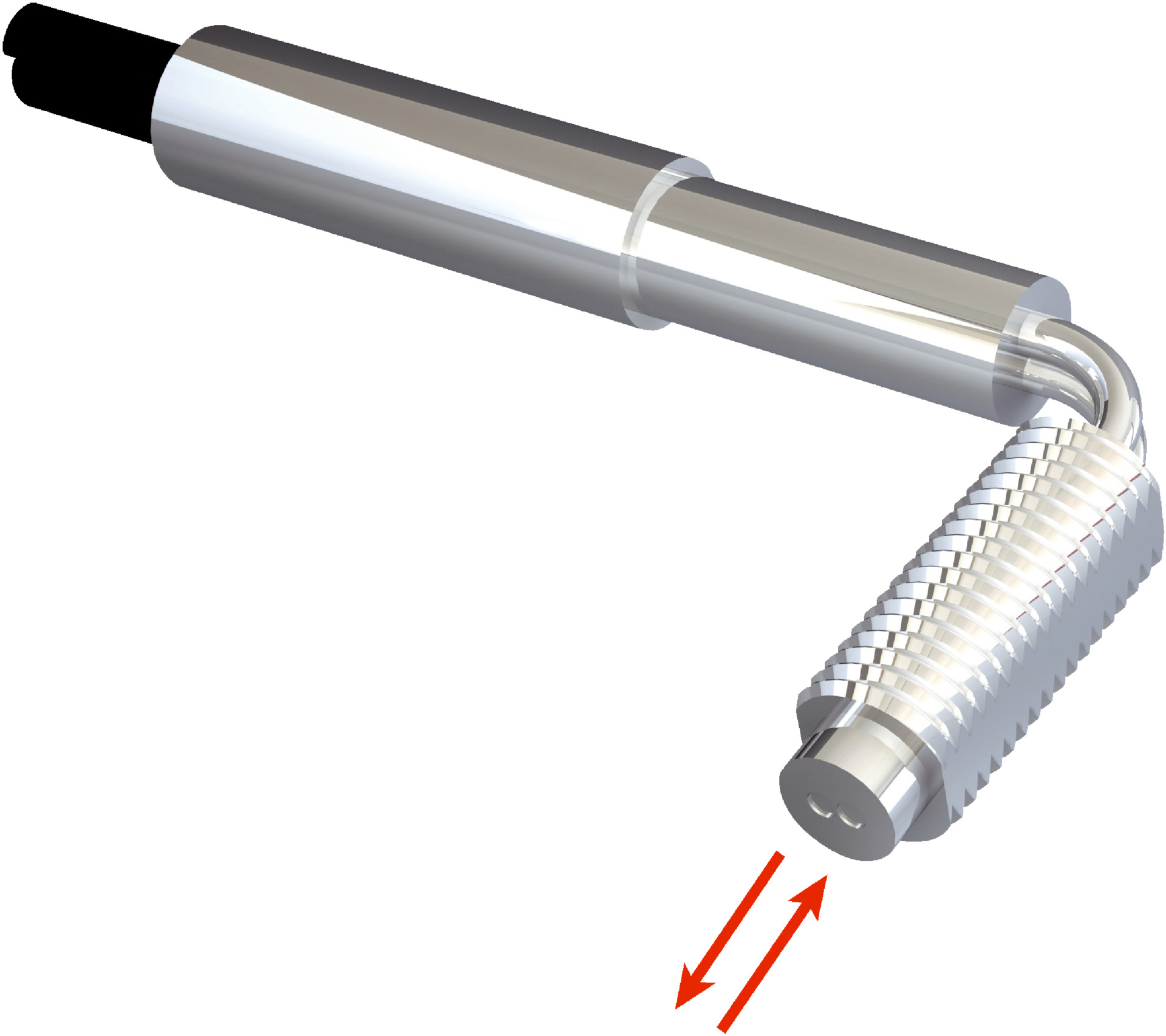

The Fiber Optic Sensor Cable LL3-DB09 features a unique threaded sleeve design with a 90° deflection, making it ideal for standard proximity sensing applications. With a maximum sensing range of 1,100 mm and the ability to detect minimal object diameters of just 0.02 mm, this cable is perfect for precise detection in industrial settings. Built for compatibility with various fiber-optic amplifiers, it ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Sensing range max.: 1,100 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Radial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 2 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and 90° deflection design
- Maximum sensing range of 1,100 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- Angle of dispersion 60°
- Radial light emission
- Optical fiber cable can be shortened
- Includes mounting hardware and FC fiber cutter
