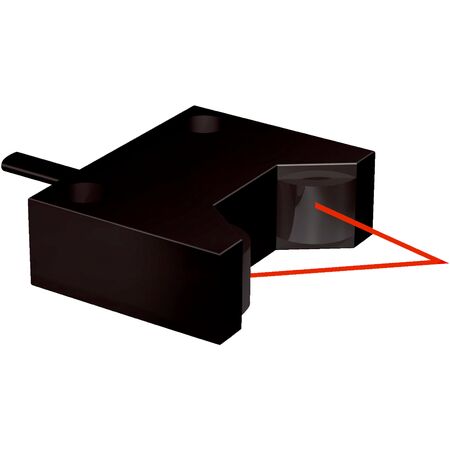

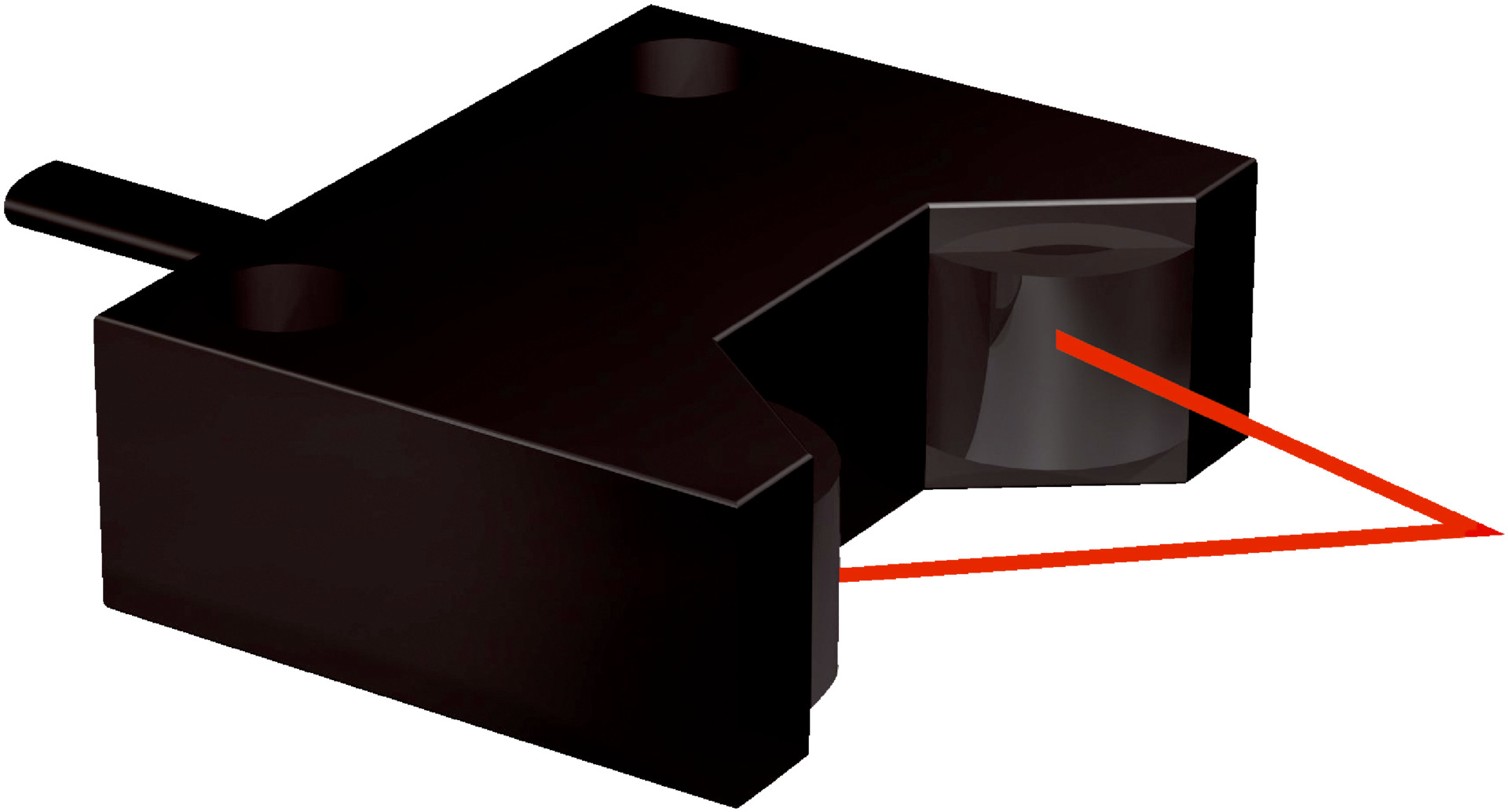

Fiber Optic Sensor Cable LL3-DC09 | Proximity System | 35mm Sensing Range | Integrated Lens | by SICK
The LL3-DC09 fiber optic sensor cable is designed for precision in industrial sensing applications, featuring a flat type fiber-optic head and a maximum sensing range of 35 mm. Ideal for LCD manufacturing and semiconductor industries, this cable ensures minimal object diameter detection of just 0.02 mm, enhancing efficiency and reducing waste in production processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type
- Sensing range max.: 35 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 25.91°
- Integrated lens: Yes
- Compatibility with infrared light: No
- Optical fiber cable length: 2000 mm
- Bending radius: 10 mm
- Optical fiber cable diameter: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 0.5 mm single fiber
- Material: Optical fiber head ABS, Sheath Polyethylene (PE), Fibers Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type fiber-optic head
- Proximity system functional principle
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Maximum sensing range of 35 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- Optical fiber head with 25.91° angle of dispersion and integrated lens
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- LCD manufacturing
- Clear material detection
- Semiconductor industry
- Limited sensing range applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste in manufacturing processes
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DC09 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications in electronics and semiconductor manufacturing.
