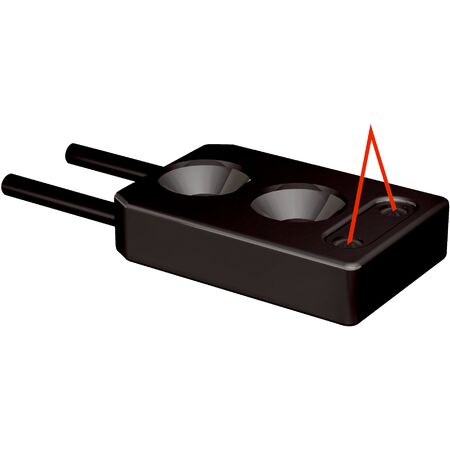

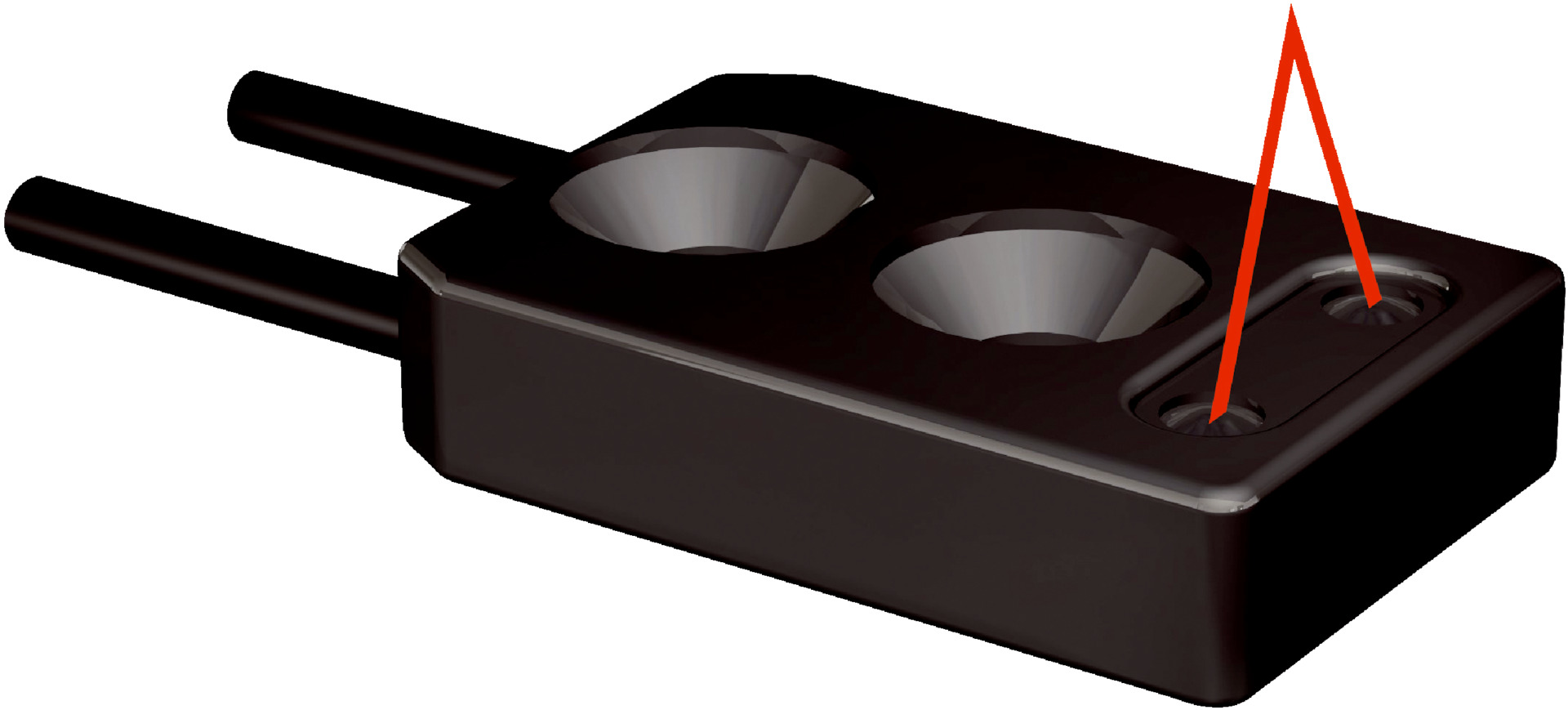

Fiber Optic Sensor Cable LL3-DC38 | Proximity System | 90° Deflection Head | 67 mm Sensing Range | by SICK
The LL3-DC38 fiber optic sensor cable is designed for precision sensing in industrial applications, featuring a flat type, 90° deflection head and a maximum sensing range of 67 mm. Ideal for LCD manufacturing and semiconductor industries, this cable ensures minimal object diameter detection of just 0.02 mm, enhancing efficiency and reducing material waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Sensing range max.: 67 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 36.01°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Acrylnitril-Butadien-Styrol (ABS)
- Optical fiber length: 2000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm Singlefiber
- Sheath material: Polyethylen (PE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +50 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Proximity system functional principle
- Maximum sensing range of 67 mm with WLL80 amplifier at 8 ms
- Minimal object diameter detection of 0.02 mm
- Integrated lens with 36.01° angle of dispersion
- Radial light emission
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- LCD manufacturing
- Clear material detection
- Semiconductor industry
- Limited sensing range proximity detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing material waste in manufacturing
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DC38 fiber-optic cable is available for immediate purchase, ideal for precision sensing applications in industrial manufacturing environments.
