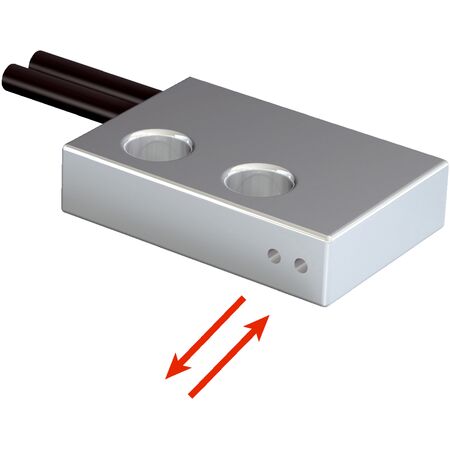

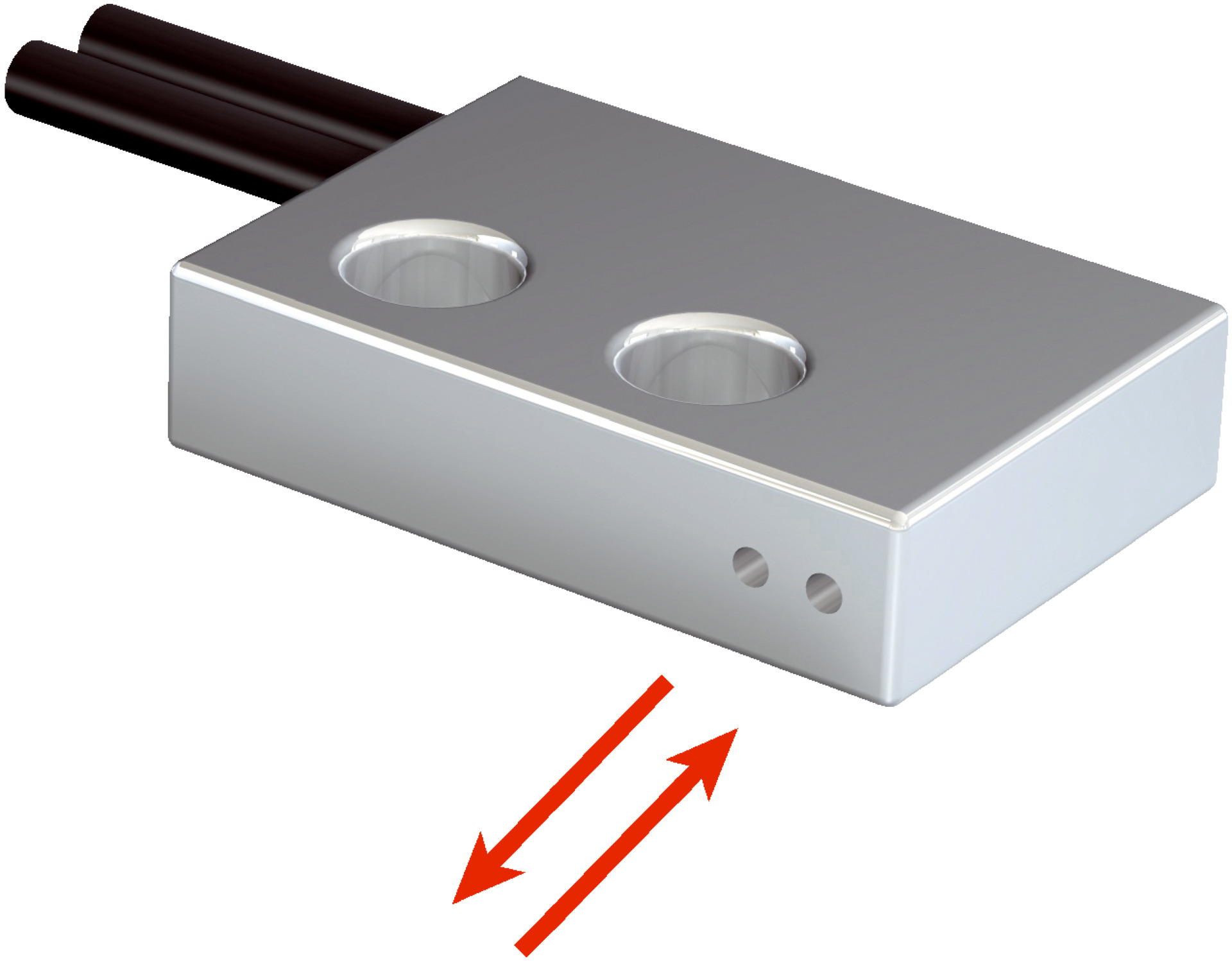

Fiber Optic Sensor Cable LL3-DC47 | 90° Deflection | 0.01 mm Detection | 2000 mm Length | by SICK
The LL3-DC47 fiber optic sensor cable is designed for high flexibility and precision in proximity sensing applications. With a unique flat type, 90° deflection head and a minimal object diameter detection of just 0.01 mm, it ensures accurate readings in various industrial settings. Built from durable stainless steel and capable of being shortened, this cable is perfect for use with compatible fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.01 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Fiber length: 2000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 0.5 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection fiber-optic head
- Proximity system functional principle
- Minimal object diameter detection of 0.01 mm
- Angle of dispersion 60°
- Radial light emission from stainless steel optical fiber head
- Optical fiber cable length 2000 mm with 1 mm bending radius
- Single fiber arrangement with core structure 2 x Ø 0.5 mm
- Optical fiber cable can be shortened with adapter end sleeves required
- Includes adapter sleeves BF-WLL160-10 (1.0 mm) and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with fiber-optic sensor systems to ensure proper handling and connection to compatible amplifiers.
Applications
- High flexible (static) sensing applications requiring precise proximity detection
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DC47 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring high flexibility and precision.
