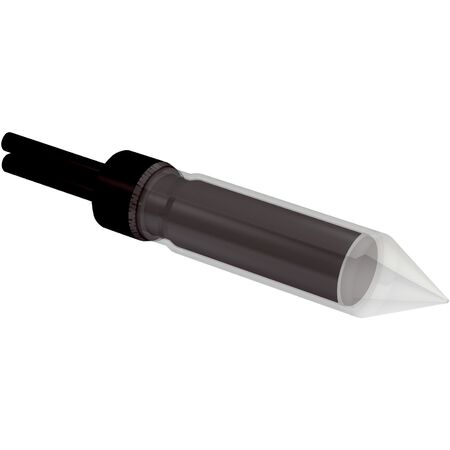

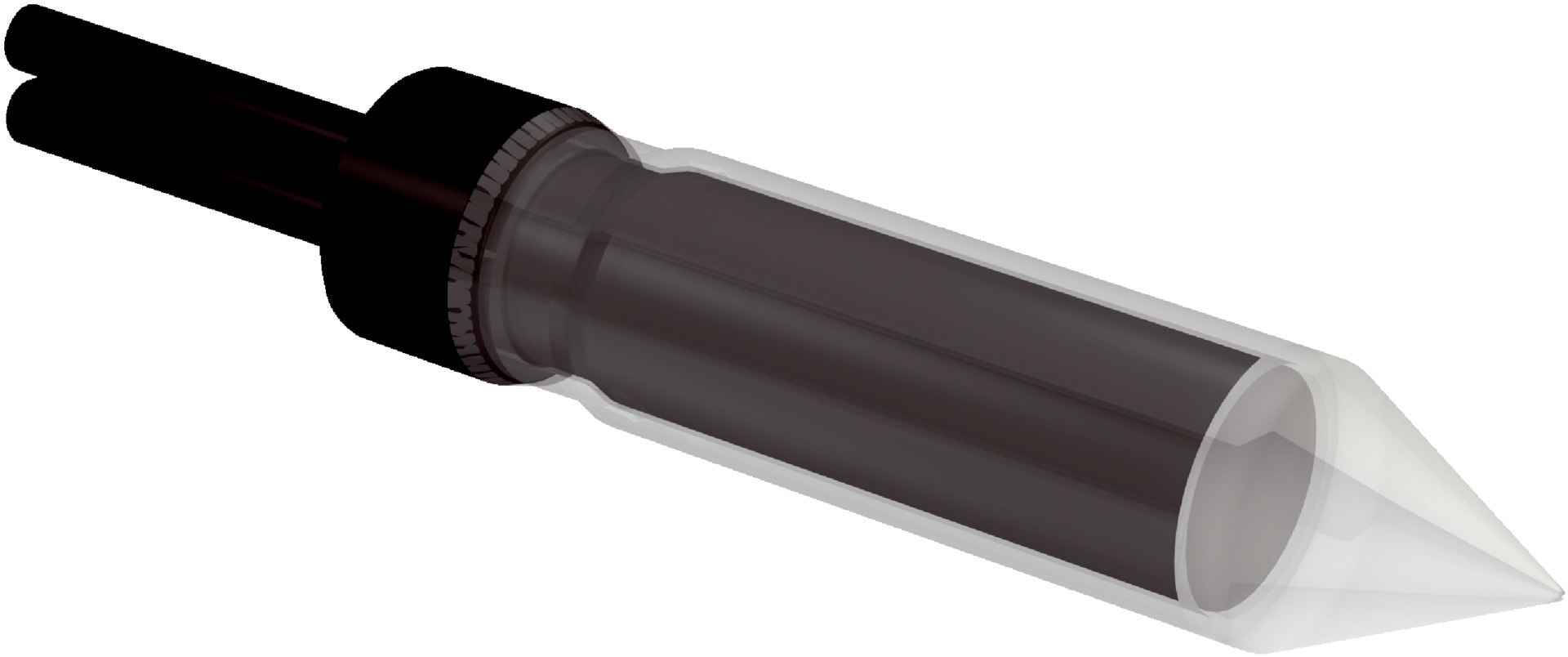

Fiber Optic Sensor Cable LL3-DF02-S01 | Proximity Sensing | 60° Angle of Dispersion | Axial Light Emission | by SICK
The Fiber Optic Sensor Cable LL3-DF02-S01 is engineered for precision liquid level detection in industrial applications. With a unique proximity sensing design and a 60° angle of dispersion, it ensures reliable performance even in extreme temperatures from -40 °C to +105 °C. Ideal for use with compatible fiber-optic amplifiers, this cable offers a smooth 5 mm diameter sleeve and can be shortened without the need for adapter end sleeves, making it a versatile choice for your sensing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Special design
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Perfluoralkoxy-Polymere (PFA)
- Light emission: Axial
- Smooth sleeve diameter: 5 mm
- Optical fiber length: 2000 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm Singlefiber
- Sheath material: PE
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +105 °C
- Dimensions (H x L x W): 5mm x 2000mm x 5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable designed for proximity sensing
- Special fiber-optic head design with 60° angle of dispersion
- Axial light emission with smooth 5 mm diameter sleeve
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter and protective cladding for fiber head
- High ambient operating temperature range from –40 °C to +105 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection to compatible amplifiers.
Applications
- Liquid level detection in immersion applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-DF02-S01 fiber-optic cable is available for immediate purchase, ideal for industrial liquid level sensing applications.
