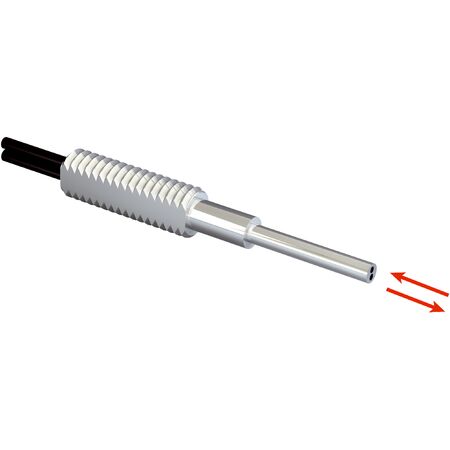

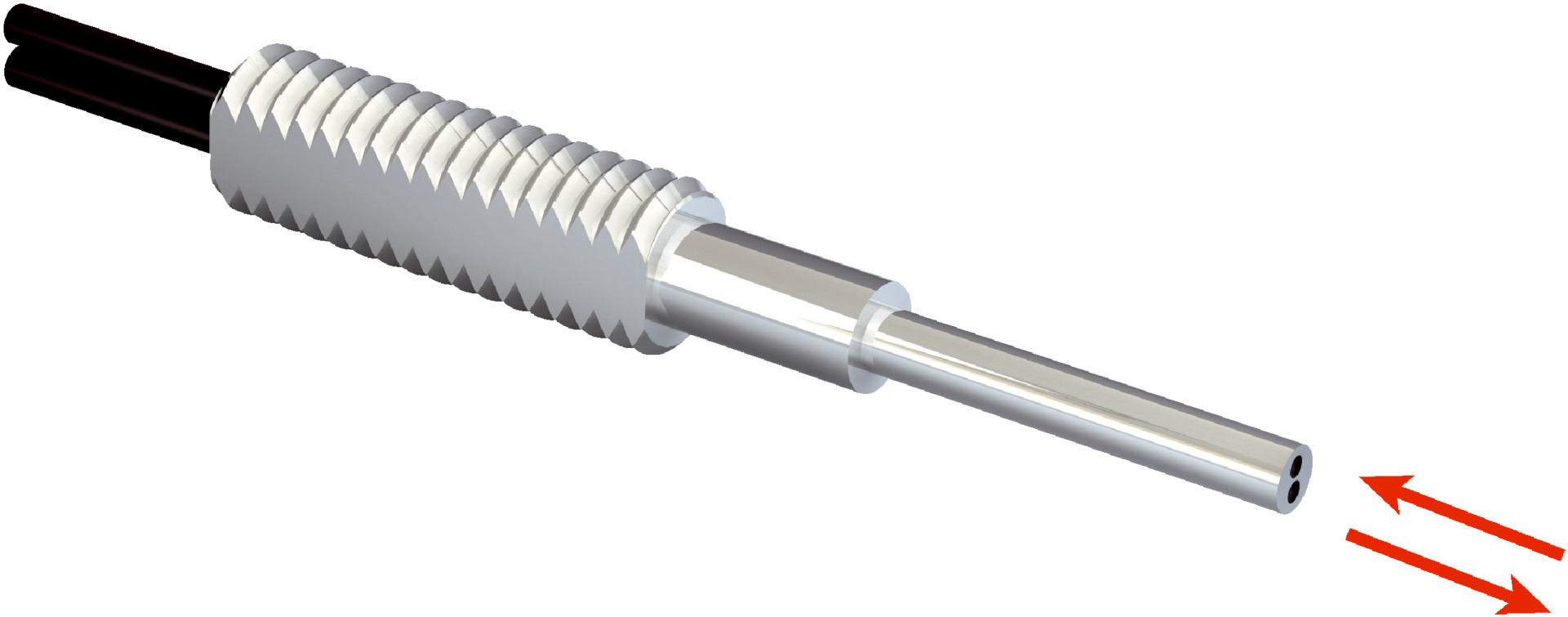

Fiber Optic Sensor Cable LL3-DM03-3 | Proximity System | 90° Deflection | Stainless Steel | by SICK
The LL3-DM03-3 fiber optic sensor cable is designed for precision proximity sensing in industrial automation. With a minimal object diameter detection of just 0.015 mm and a 60° angle of dispersion, this cable ensures reliable performance. Built with a stainless steel optical fiber head and capable of operating in temperatures from -40 °C to +70 °C, it’s perfect for various applications, including object detection and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve, Bendable sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 90 mm
- Minimum bend radius of end sleeve: 10 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve, long end sleeve, bendable sleeve, and 90° deflection
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing reduces overall system power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DM03-3 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
