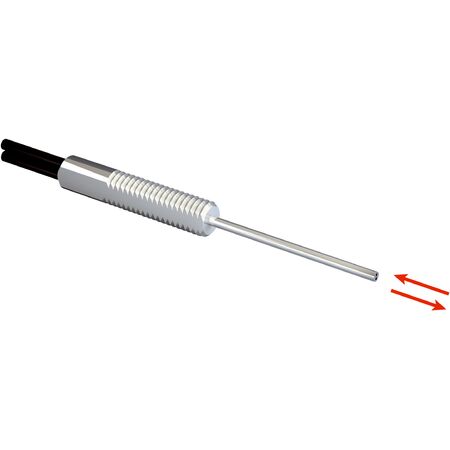

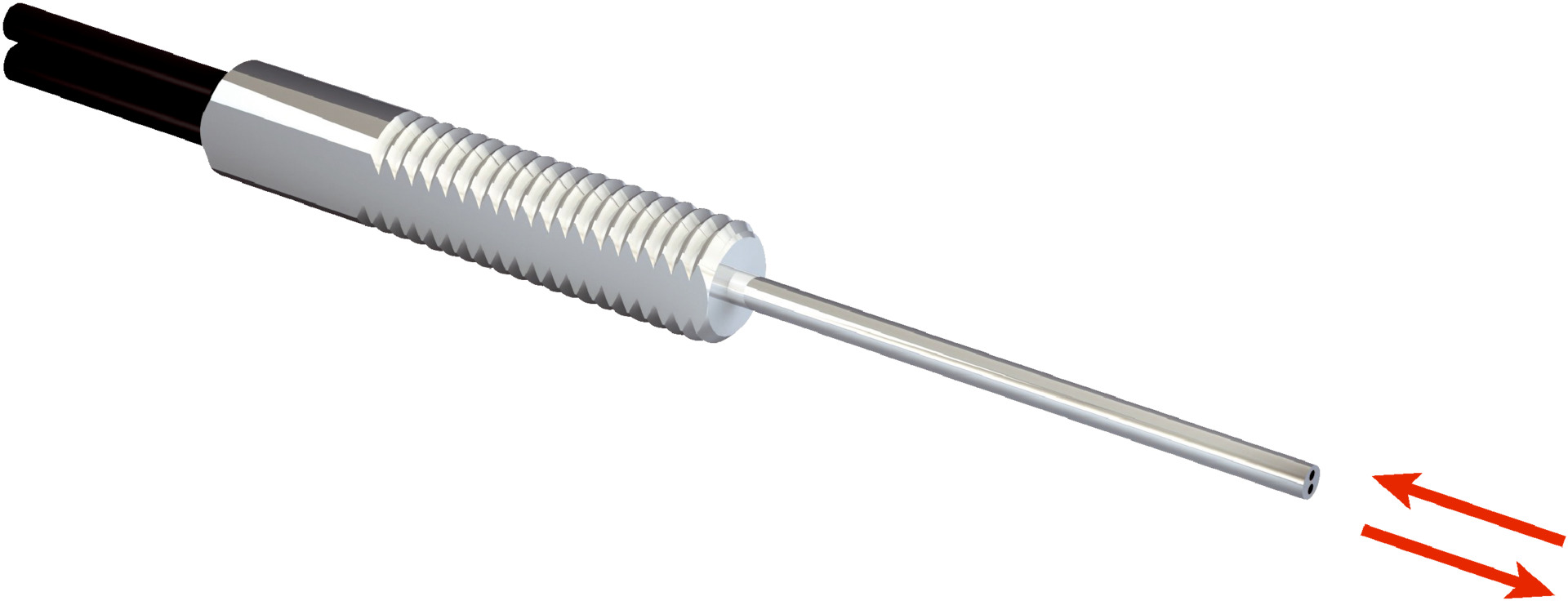

Fiber Optic Sensor Cable LL3-DT02 | Proximity System | 240 mm Sensing Range | Stainless Steel Design | by SICK
The LL3-DT02 fiber optic sensor cable is designed for high flexibility in static and dynamic sensing applications. With a maximum sensing range of 240 mm and a minimal object diameter detection of just 0.015 mm, this cable is perfect for robotics and industrial automation. Its durable stainless steel design ensures longevity, making it an ideal choice for precise sensing in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 240 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 0.82 mm
- Optical fiber taper length after 2 mm: ≥ 15 mm
- Fiber length: 500 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 500mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and long end sleeve design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Maximum sensing range of 240 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- 60° angle of dispersion
- No integrated lens and no compatibility with tip adapters
- Optical fiber cable can be shortened
- Adapter end sleeves required
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation by qualified personnel familiar with fiber-optic sensor systems is recommended to ensure proper setup and safety.
Applications
- High flexible static sensing applications
- Robotics dynamic flexible sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DT02 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotic sensing applications.
