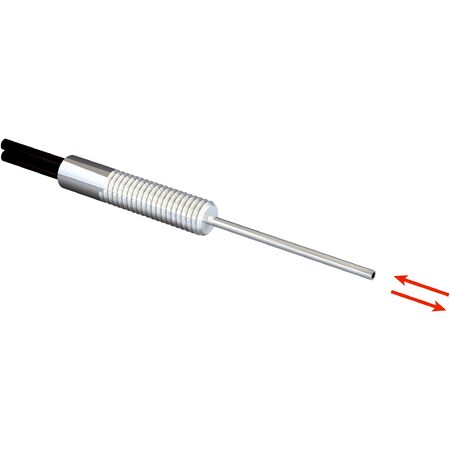

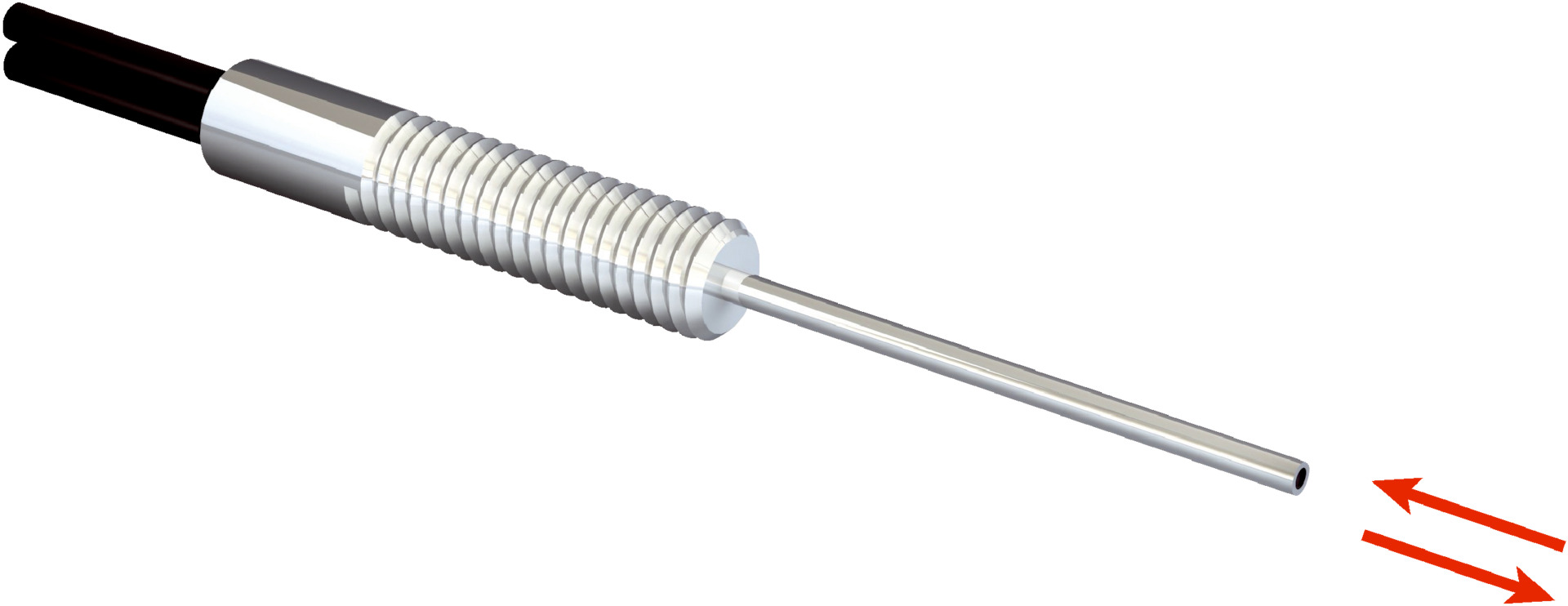

Fiber Optic Sensor Cable LL3-DT04 | Proximity System | 300mm Sensing Range | Stainless Steel Design | by SICK
The Fiber Optic Sensor Cable LL3-DT04 is engineered for high precision sensing in industrial automation and robotics applications. With a maximum sensing range of 300 mm and a minimal object diameter detection of just 0.015 mm, this cable features a durable stainless steel head and a flexible design, making it ideal for dynamic environments. Perfect for professionals seeking reliable performance in high flexible static sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 300 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 0.8 mm
- Optical fiber taper length after 2 mm: ≥ 15 mm
- Fiber length: 500 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.25 mm, R: 9 x Ø 0.125 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 500mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and long end sleeve design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Maximum sensing range of 300 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- 60° angle of dispersion
- No integrated lens and no compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Stainless steel optical fiber head with axial light emission
- M3 thread diameter housing
- Fiber length of 500 mm with 4 mm bending radius
- Coaxial fiber arrangement with polymethylmethacrylate (PMMA) fibers and polyethylene (PE) sheath
- Dynamic flexibility suitable for robotics
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with compatible fiber-optic amplifiers and optimal sensor performance.
Applications
- High flexible static sensing applications
- Robotics with dynamic flexible sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials enhance product longevity reducing waste
- Dynamic flexibility supports robotic automation which can improve energy efficiency in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LL3-DT04 Fiber-Optic Cable is available for immediate purchase, ideal for high precision sensing in industrial automation and robotics applications.
