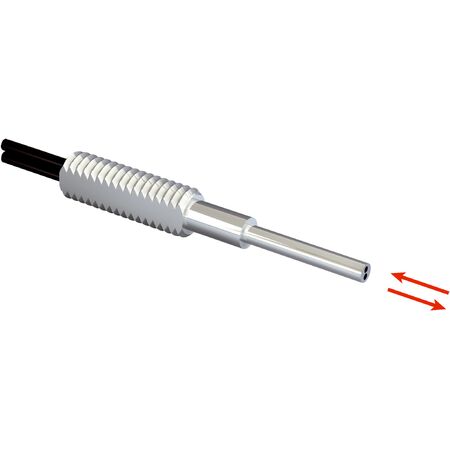

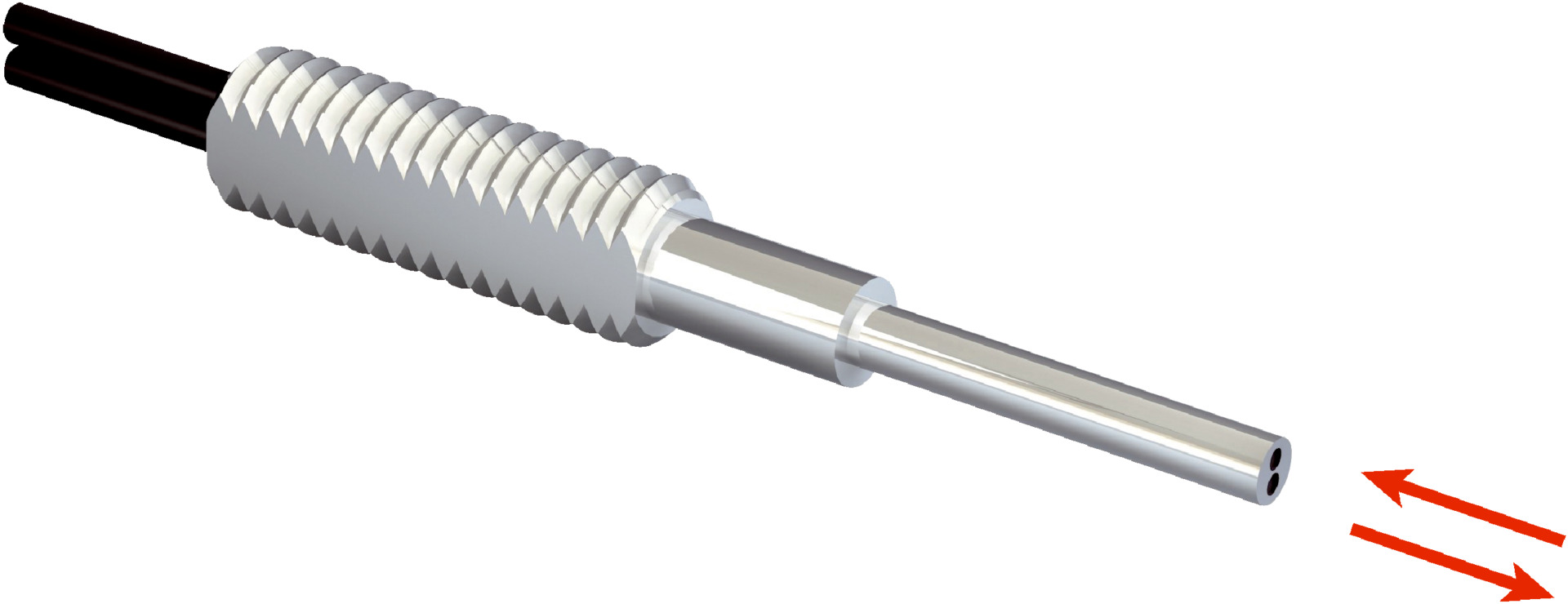

Fiber Optic Sensor Cable LL3-DT05 | Proximity System | 580 mm Sensing Range | Stainless Steel Design | by SICK
The LL3-DT05 fiber optic sensor cable is engineered for precision in proximity sensing applications. With a maximum sensing range of 580 mm and a minimal object diameter detection of just 0.015 mm, this cable is perfect for industrial environments. Its durable stainless steel construction ensures longevity, making it an ideal choice for reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 580 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 28 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Operating temperature range: –40 °C to +70 °C
- Dimensions (H x L x W): 4mm x 2000mm x 4mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and long end sleeve design
- Maximum sensing range of 580 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion of 60°
- Axial light emission
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable stainless steel and polyethylene materials enhance product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DT05 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring high precision and durability.
