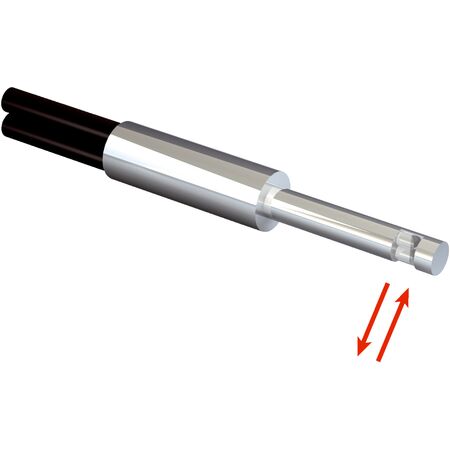

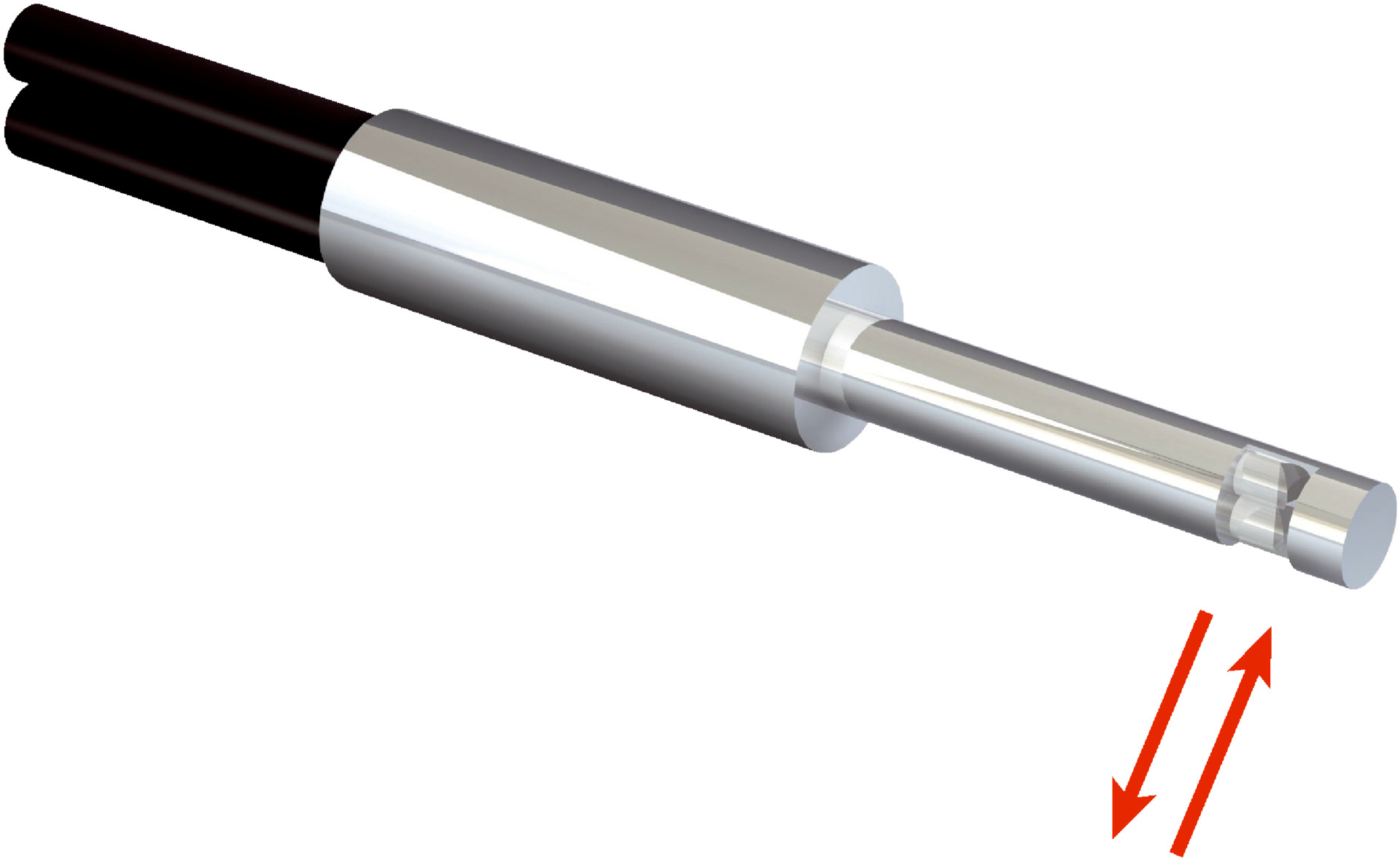

Fiber Optic Sensor Cable LL3-DV01 | Proximity System | 850mm Sensing Range | Stainless Steel Design | by SICK
The Fiber Optic Sensor Cable LL3-DV01 is engineered for precision in proximity sensing applications, featuring a maximum sensing range of 850 mm and a minimal object detection diameter of just 0.025 mm. With a robust stainless steel head and a flexible polyethylene sheath, this cable is perfect for industrial environments, ensuring reliable performance even in extreme temperatures from -40 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 850 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.025 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 5 mm
- Optical fiber taper diameter: ≥ 2.7 mm
- Optical fiber taper length after 2 mm: ≥ 20 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 20mm x 2000mm x 5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve, long end sleeve, and 90° deflection design
- Maximum sensing range of 850 mm with WLL80 amplifier at 8 ms
- Minimal object detection diameter of 0.025 mm
- Radial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Stainless steel optical fiber head with polyethylene sheath
- Fiber length of 2000 mm with 25 mm bending radius
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection to compatible amplifiers.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce waste and extend product life
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DV01 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise detection and robust fiber-optic components.
