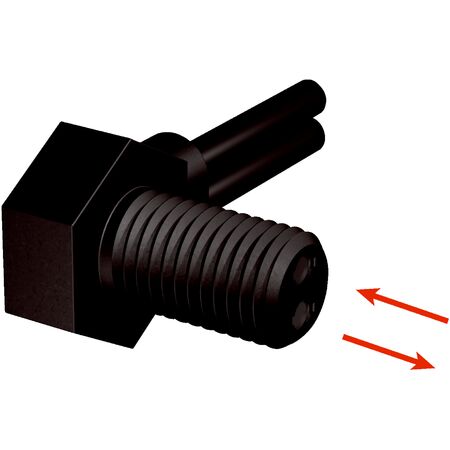

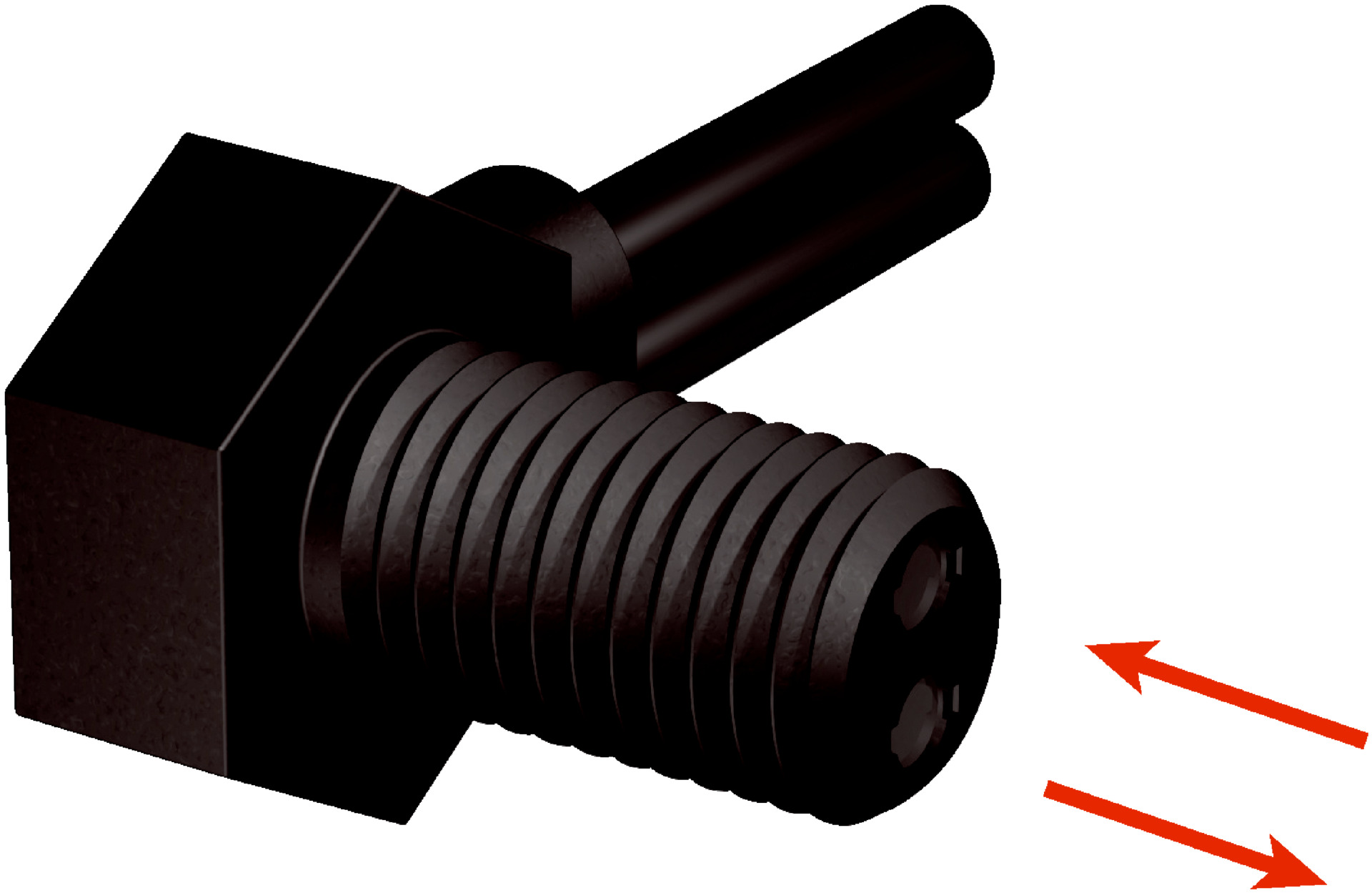

Fiber Optic Sensor Cable LL3-DV07 | 90° Deflection Design | 660 mm Sensing Range | Integrated Lens | by SICK
The Fiber Optic Sensor Cable LL3-DV07 is designed for high flexible static proximity sensing applications. With a maximum sensing range of 660 mm and a minimal object diameter detection of just 0.015 mm, this cable ensures precision in various industrial settings. Its threaded sleeve and integrated lens with a 15.94° angle of dispersion make it ideal for compatibility with fiber-optic amplifiers like WLL80 and WLL180.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Application: High flexible (static)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 660 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 15.94°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Polyamid (PA)
- Light emission: Radial
- Thread diameter (housing): M6
- Fiber length: 2000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Singlefiber
- Sheath material: Polyethylen (PE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and 90° deflection design
- Maximum sensing range of 660 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Integrated lens with 15.94° angle of dispersion
- Radial light emission
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting accessories: 1 x M6 hexagon nut and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible static proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-DV07 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring high flexibility and precision.
