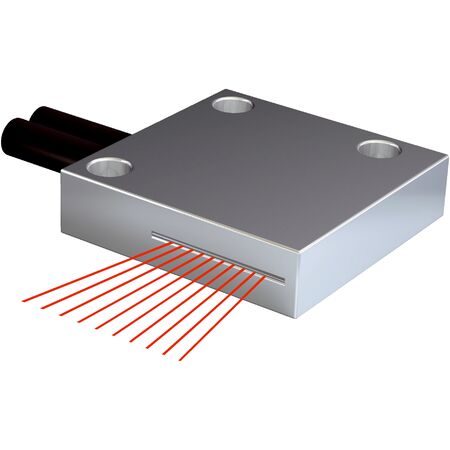

Fiber Optic Sensor Cable LL3-DZ03 | Proximity System | 1,050 mm Sensing Range | Flat Type Design | by SICK
The LL3-DZ03 fiber optic sensor cable is designed for precision area detection in industrial automation, featuring a flat type, 90° deflection fiber-optic head and a maximum sensing range of 1,050 mm. With a minimal object diameter detection of just 0.02 mm and a 60° angle of dispersion, this cable ensures reliable performance in various applications, making it ideal for use with compatible fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection, Array
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 1,050 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Radial
- Optical fiber head array width: 11 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 16 fibers x 0.265 mm diameter
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cables with flat type, 90° deflection, array fiber-optic head design
- Proximity system functional principle
- Maximum sensing range of 1,050 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- 60° angle of dispersion
- Radial light emission from copper-zinc alloy optical fiber head
- 2,000 mm fiber length with 25 mm bending radius
- Multi-fiber core structure with 16 fibers of 0.265 mm diameter each
- Polyethylene sheath and polymethylmethacrylate fibers
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Operating temperature range from -40 °C to +70 °C
