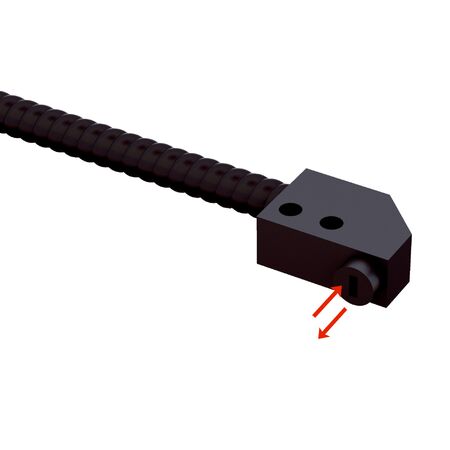

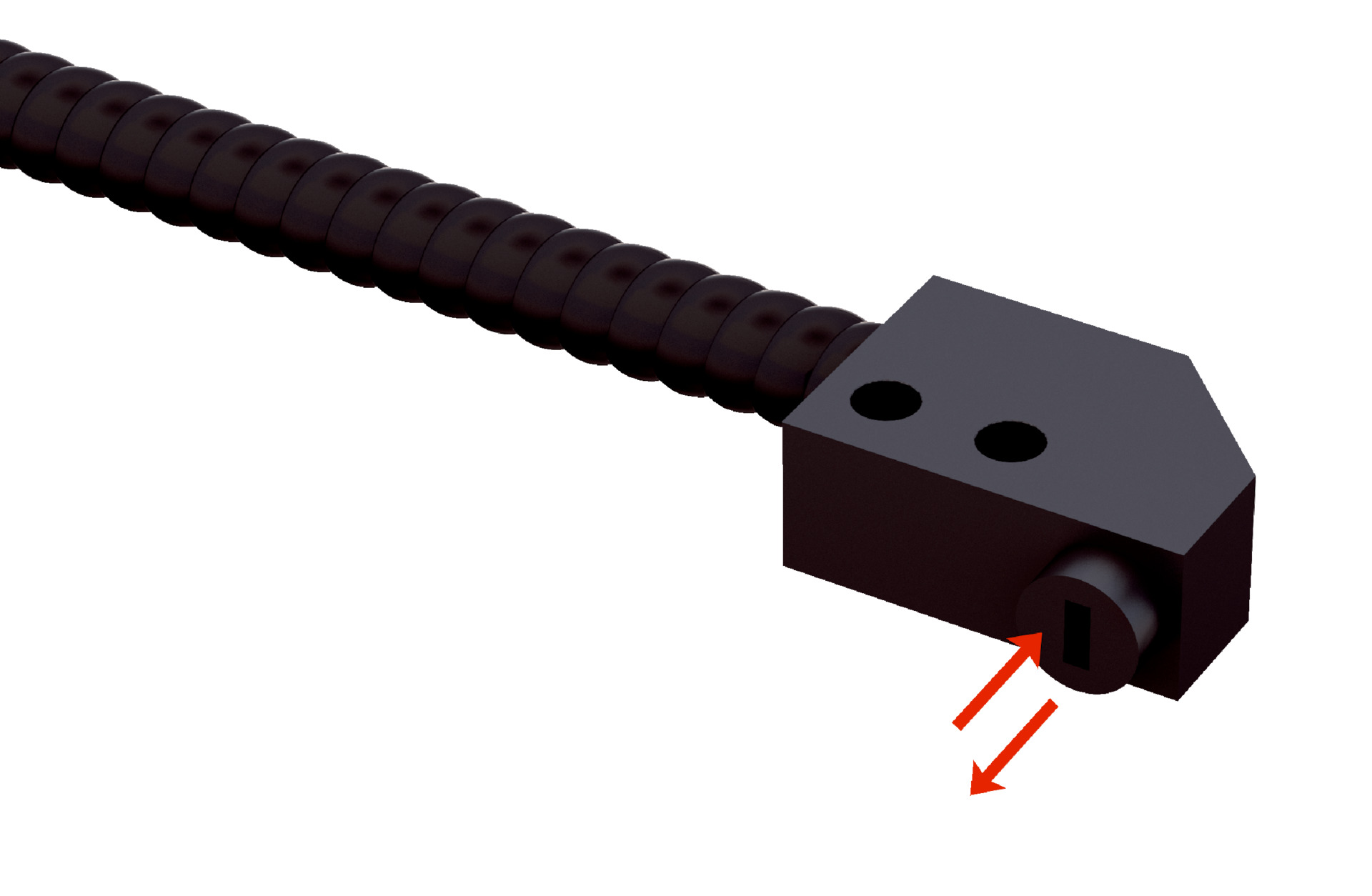

Fiber Optic Sensor Cable LL3-LM37150 | Proximity System | 90° Deflection Head | Multi-Fiber Core | by SICK
The LL3-LM37150 fiber optic sensor cable is designed for standard proximity sensing applications, featuring a flat type head with 90° deflection and a multi-fiber core structure. Ideal for industrial automation and object detection, this cable offers radial light emission and compatibility with infrared light, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Radial
- Fiber length: 150 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material: Chrome-plated metal coil (head), PVC sheath, glass fibers
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 10mm x 150mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Proximity system functional principle
- Multi-fiber core structure with glass fibers
- Radial light emission from chrome-plated metal coil head
- Angle of dispersion 60°
- No integrated lens or compatibility tip adapters required
- Compatible with infrared light
- Fiber length 150 mm with 20 mm bending radius
- Sheath made of polyvinylchloride (PVC)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and optimal performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending equipment life
- Energy-efficient optical sensing technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM37150 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
