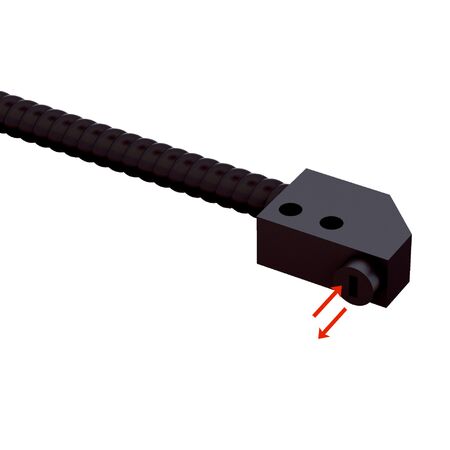

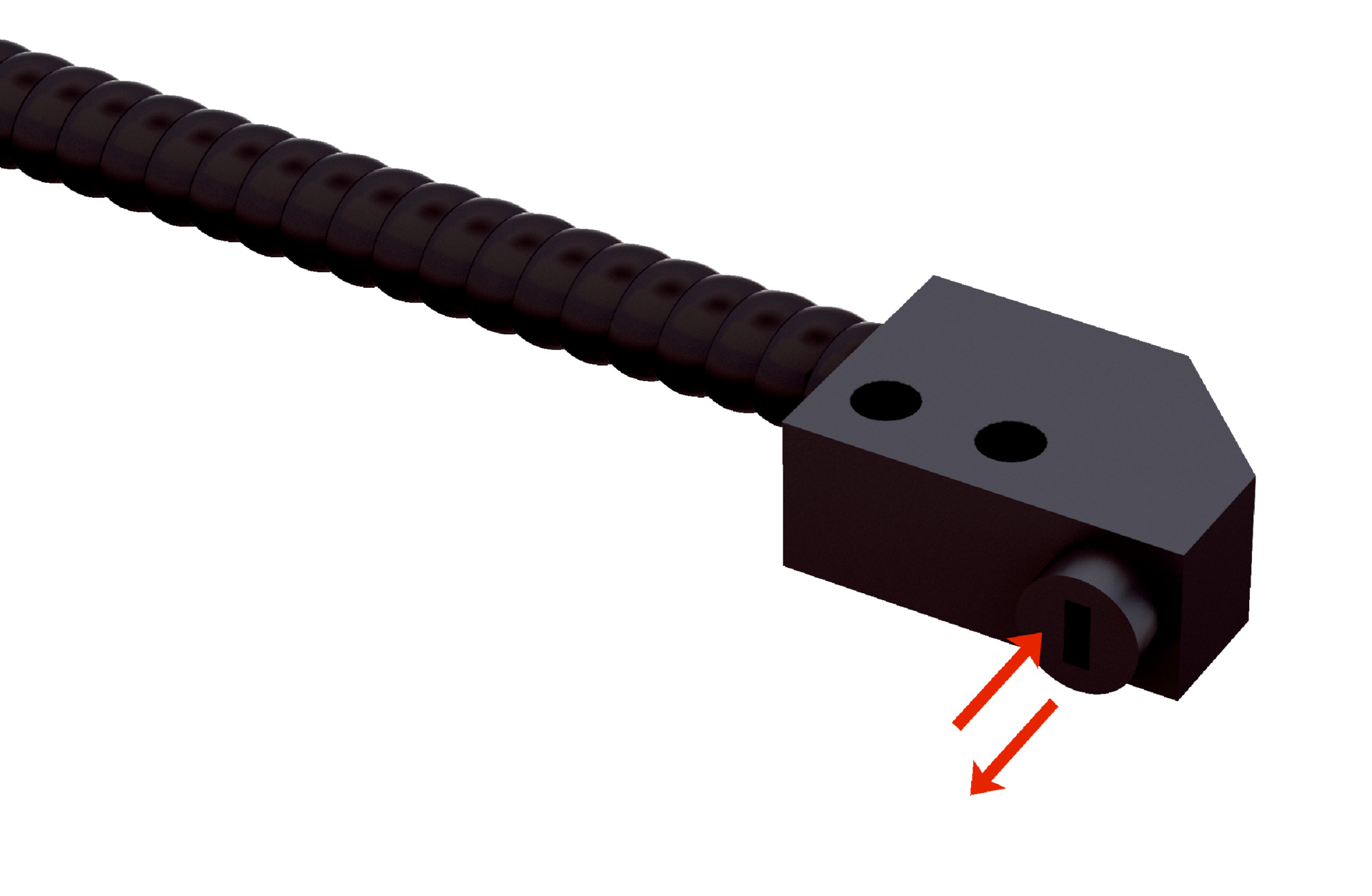

Fiber Optic Sensor Cable LL3-LM37750 | Proximity System | 90° Deflection Head | 750 mm Length | by SICK
The Fiber Optic Sensor Cable LL3-LM37750 is designed for standard proximity sensing applications, featuring a flat type head with 90° deflection and a multi-fiber core structure. Ideal for industrial automation and object detection, this cable offers radial light emission and compatibility with infrared light, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Chrome-plated metal coil
- Light emission: Radial
- Fiber length: 750 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T: 50 mm to 270 mm depending on operating mode
- Sensing ranges with GLL170: 115 mm
- Sensing ranges with GLL170T: 123 mm to 229 mm depending on operating mode
- Dimensions (H x L x W): 10mm x 750mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Proximity system functional principle
- Multi-fiber core structure with glass fibers
- Radial light emission from chrome-plated metal coil head
- Angle of dispersion 60°
- No integrated lens or compatibility tip adapters required
- Compatible with infrared light
- Fiber length 750 mm with 2.2 mm outside diameter
- Bending radius 20 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with compatible fiber-optic amplifiers and system safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending equipment life
- Energy-efficient optical sensing technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-LM37750 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
