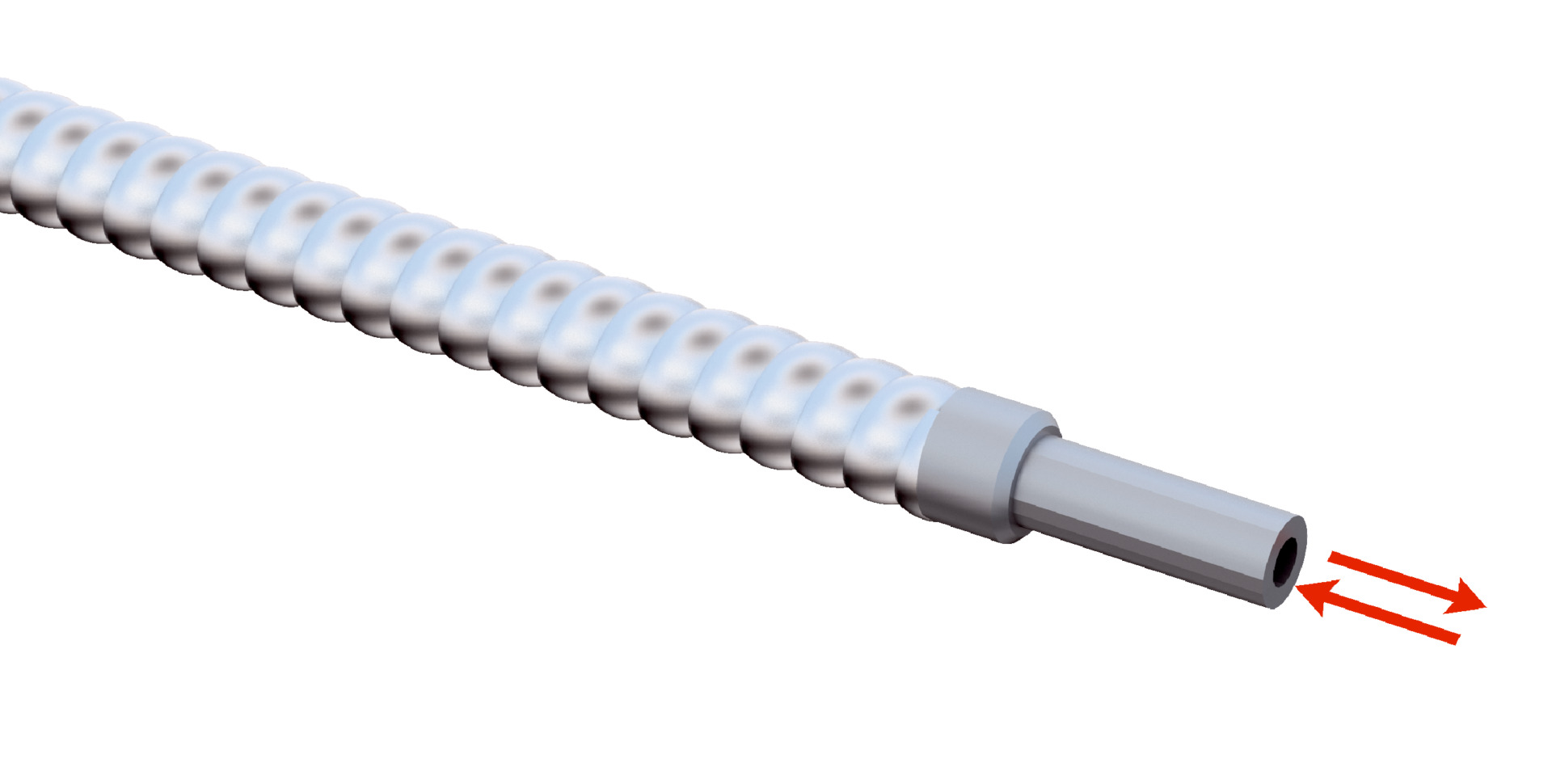

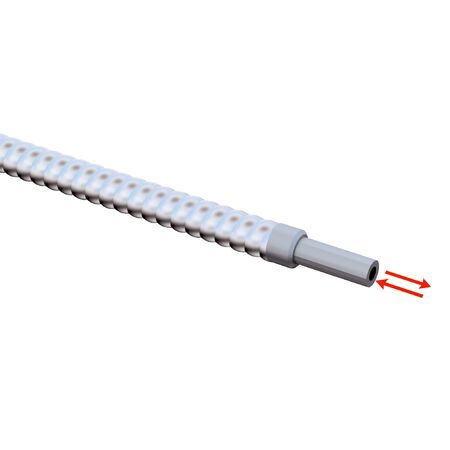

Fiber Optic Sensor Cable LL3-LT31450 | Proximity System | Stainless Steel Head | 450mm Length | by SICK
The Fiber Optic Sensor Cable LL3-LT31450 is designed for standard proximity sensing applications, featuring a smooth sleeve and long end sleeve design. With an axial light emission and a 60° angle of dispersion, this cable is compatible with infrared light and offers a robust stainless steel optical fiber head. Ideal for industrial settings, it ensures reliable detection and extends device lifespan through non-contact sensing technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath: Chrome-plated helical metal spring
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 50 mm, 70 µs - 140 mm, 250 µs - 240 mm, 2 ms - 300 mm, 8 ms - 310 mm
- Sensing ranges with GLL170 operating mode 250 µs: 93 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 165 mm, 250 µs - 254 mm
- Dimensions (H x L x W): 6mm x 450mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- Axial light emission with 60° angle of dispersion
- Stainless steel optical fiber head with chrome-plated helical metal spring sheath
- Multi-fiber glass core structure
- Compatible with infrared light without need for adapter end sleeves
- Fiber length of 450 mm with 20 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper integration and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device lifespan
- Energy-efficient optical sensing technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-LT31450 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring reliable fiber-optic detection.
