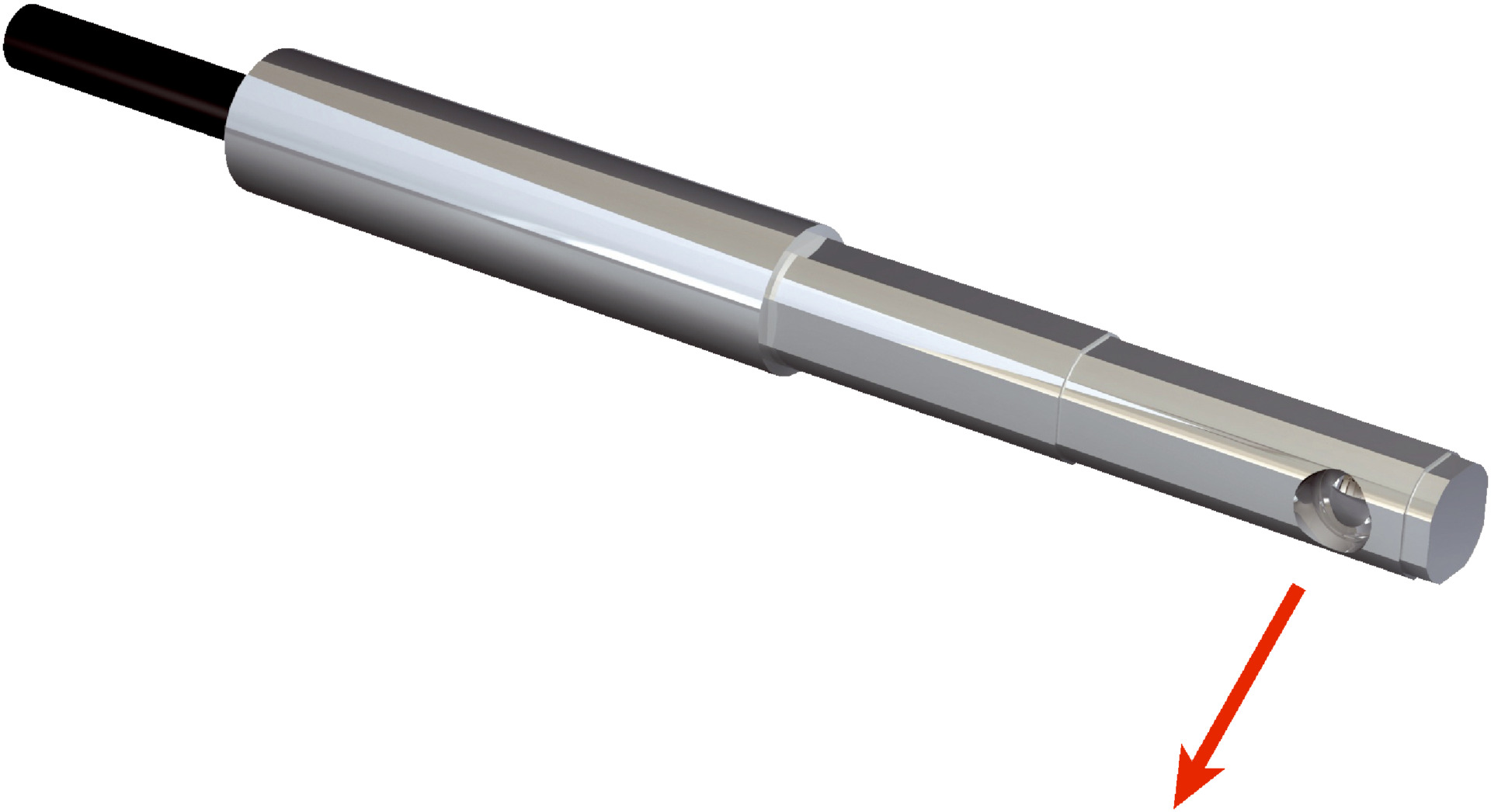

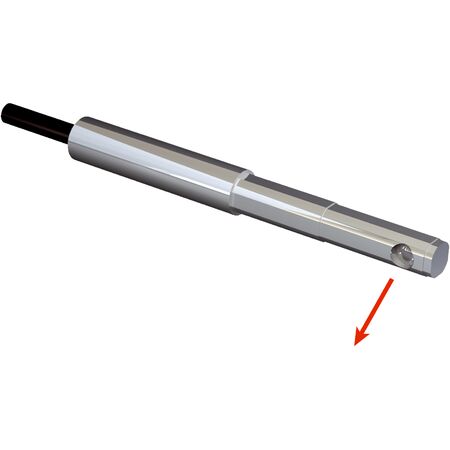

Fiber Optic Sensor Cable LL3-TG02 | 90° Deflection | 3600mm Sensing Range | Small Aperture Angle | by SICK
The Fiber Optic Sensor Cable LL3-TG02 features a 90° deflection design and a maximum sensing range of 3,600 mm, making it ideal for precise detection in the semiconductor industry and high-flexibility environments. With a small 2° aperture angle, this cable ensures accurate readings, reducing material waste and enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: 90° deflection
- Small aperture angle: 2°
- Compatible amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Max sensing range: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.06 mm
- Angle of dispersion: 2.29°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Light emission: Radial
- Optical fiber head material: Plastic
- Fiber length: 2,000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 151 x Ø 0.075 mm multi-fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Operating temperature: -40 °C to +55 °C
- Dimensions (H x L x W): 20mm x 2000mm x 50mm
- Weight: 0.1 kg
