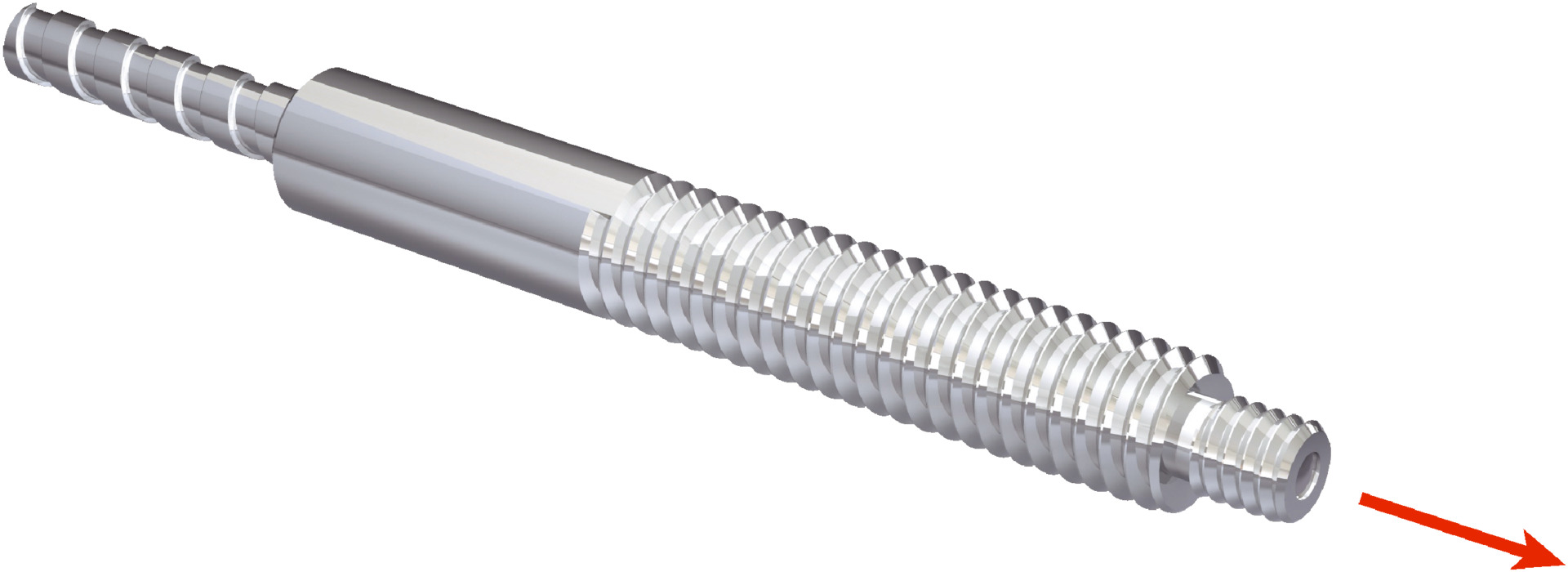

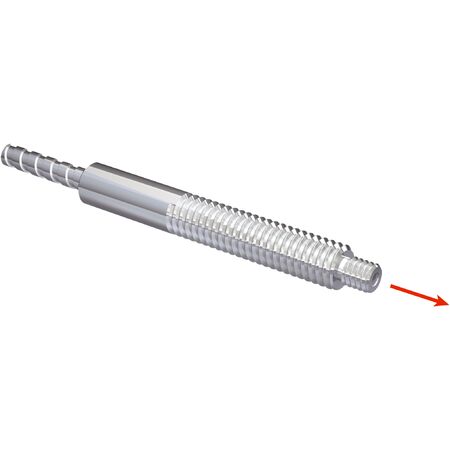

Fiber Optic Sensor Cable LL3-TH08 | Heat-Resistant Up to 350°C | Through-Beam System | by SICK
The LL3-TH08 fiber optic sensor cable is designed for high-temperature environments, operating effectively from -30°C to +350°C. Featuring a threaded sleeve design and a through-beam system, it ensures precise object detection in industrial automation applications. Built with a durable stainless steel sheath and glass fiber core, this cable is compatible with infrared light and various fiber-optic amplifiers, making it a reliable choice for demanding sensing tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C), operating temperature –30°C to +350°C
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Maximum sensing range: 3,290 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.04 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.2 mm single fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Weight: 12 g
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to 350°C
- Compatible with infrared light
- Single fiber glass core with stainless steel sheath
- Axial light emission with 60° angle of dispersion
- No integrated lens, compatible with tip adapters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation requiring precise object detection
- High-temperature environments up to 350°C
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and glass fiber construction reduces waste and replacement frequency
- Supports energy-efficient sensing systems by enabling precise detection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TH08 fiber-optic cable is available for immediate purchase, ideal for industrial automation and high-temperature sensing applications.
