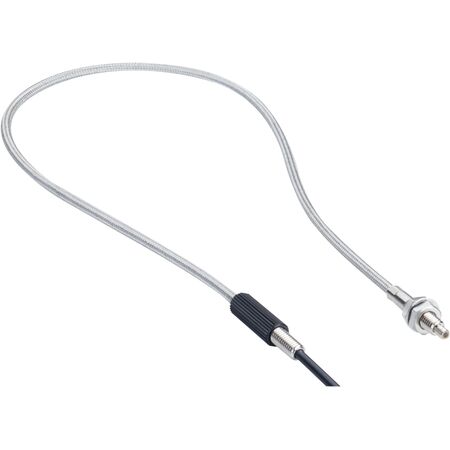

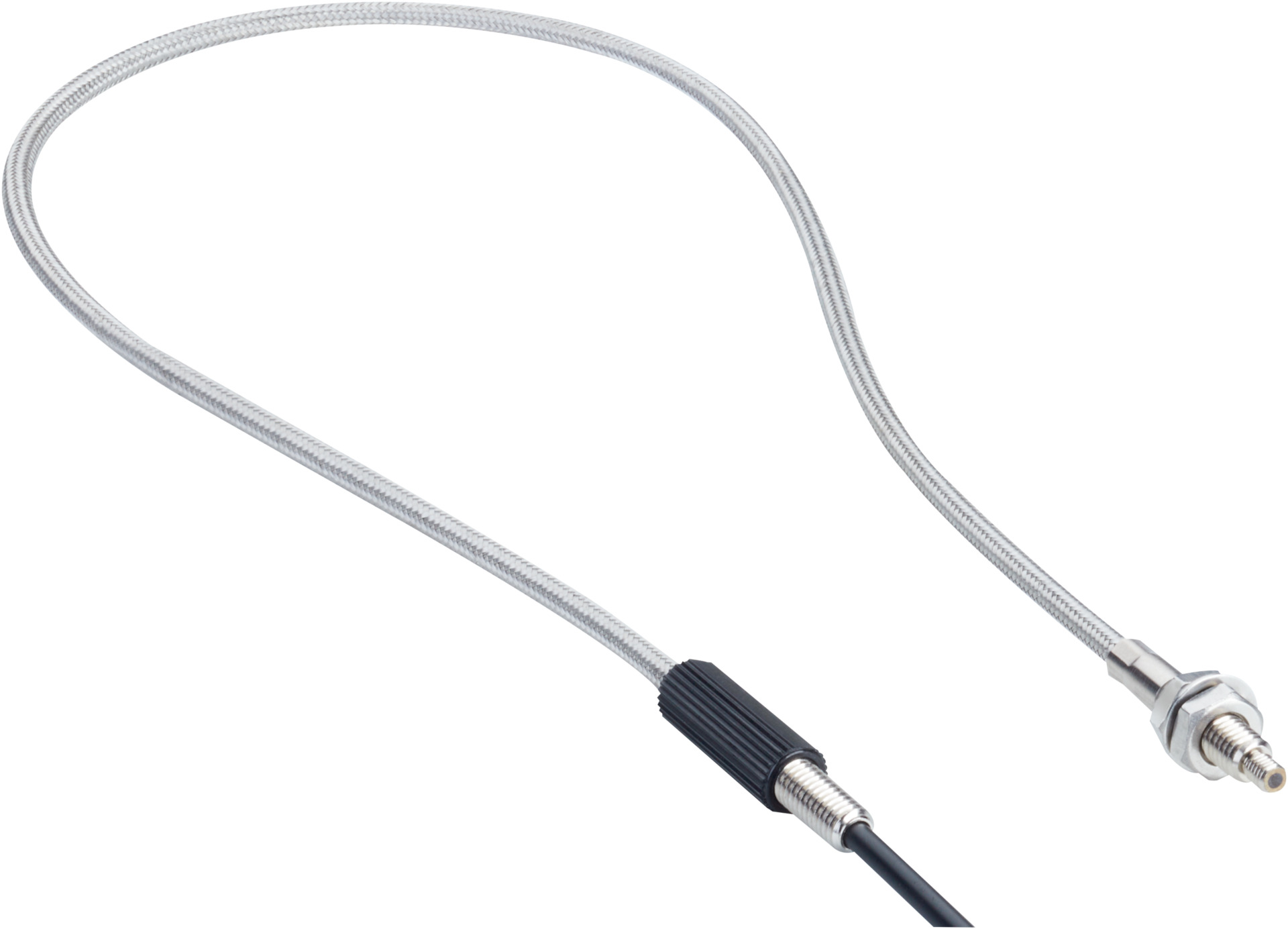

Fiber Optic Sensor Cable LL3-TH15 | Heat Resistant to 200°C | 90° Deflection | 2,000 mm Length | by SICK
The LL3-TH15 fiber optic sensor cable is designed for industrial automation sensing, featuring a through-beam system with a smooth sleeve head and 90° deflection. With a heat resistance of up to 200°C and a sensing range of 2,490 mm, it’s perfect for precision object detection in high-temperature environments. Built for reliability, this cable is compatible with fiber-optic amplifiers and ideal for applications requiring minimal object diameter detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, 90° deflection
- Sensing range max: 2,490 mm with WLL80 at 8 ms
- Minimal object diameter: 0.16 mm
- Angle of dispersion: 60.23°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Radial
- Smooth sleeve diameter: 4 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.8 mm single fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –60 °C to +200 °C
- Dimensions (H x L x W): 20mm x 2000mm x 4mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Smooth sleeve fiber-optic head with 90° deflection
- Heat-resistant up to 200°C
- Radial light emission
- Integrated lens with 60.23° angle of dispersion
- Single fiber with 2,000 mm length and 4 mm smooth sleeve diameter
- Copper-zinc alloy optical fiber head and stainless steel sheath
- Compatible with visible red light fiber-optic sensors
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper alignment and connection with compatible fiber-optic amplifiers.
Applications
- Industrial automation sensing
- High-temperature environments up to 200°C
- Precision object detection with minimal diameter 0.16 mm
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce frequent replacements and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TH15 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat resistance and precision detection.
