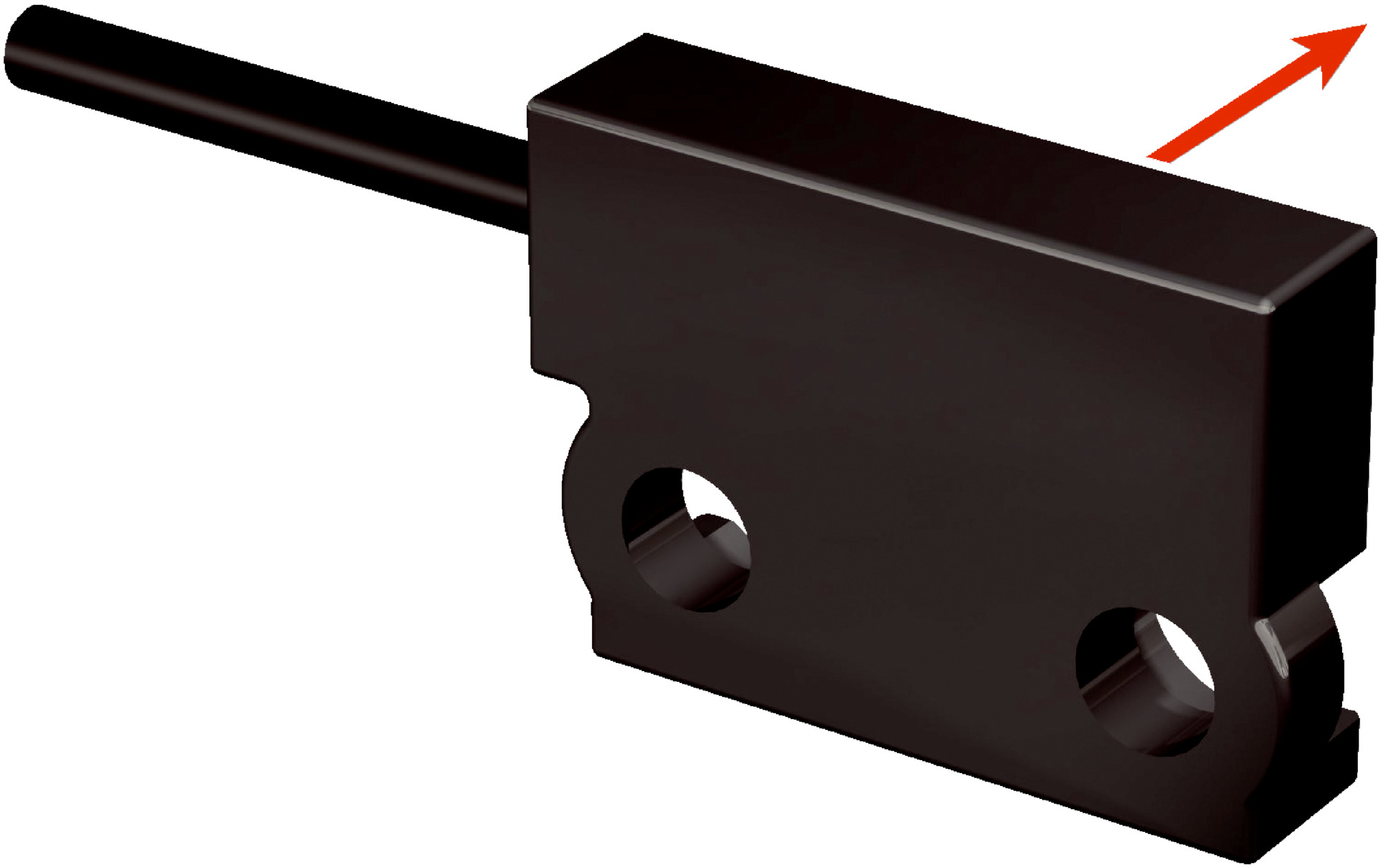

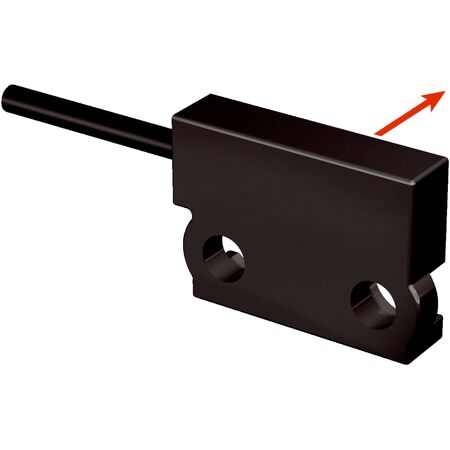

Fiber Optic Sensor Cable LL3-TR13 | Through-Beam System | 3600mm Sensing Range | Integrated Lens | by SICK
The LL3-TR13 fiber optic sensor cable features a through-beam system with a flat type head and 90° deflection, making it ideal for high flexible static sensing applications. With a maximum sensing range of 3,600 mm and a minimal object diameter detection of just 0.04 mm, this sensor is perfect for industrial automation and precise object detection, ensuring efficiency and reliability in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.04 mm
- Angle of dispersion: 46.54°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber cable length: 2,000 mm
- Bending radius: 1 mm
- Outside diameter of optical fiber cable connection: 1.3 mm
- Fiber arrangement: Multi-fiber (151 x Ø 0.075 mm)
- Material: Polycarbonate head, Polyethylene sheath, Polymethylmethacrylate fibers
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver in symmetric housing
- Flat type fiber-optic head with 90° deflection
- Maximum sensing range up to 3,600 mm with WLL80 amplifier
- Minimal object diameter detection of 0.04 mm
- Integrated lens with 46.54° angle of dispersion
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- High flexible static sensing applications
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TR13 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise object detection.
