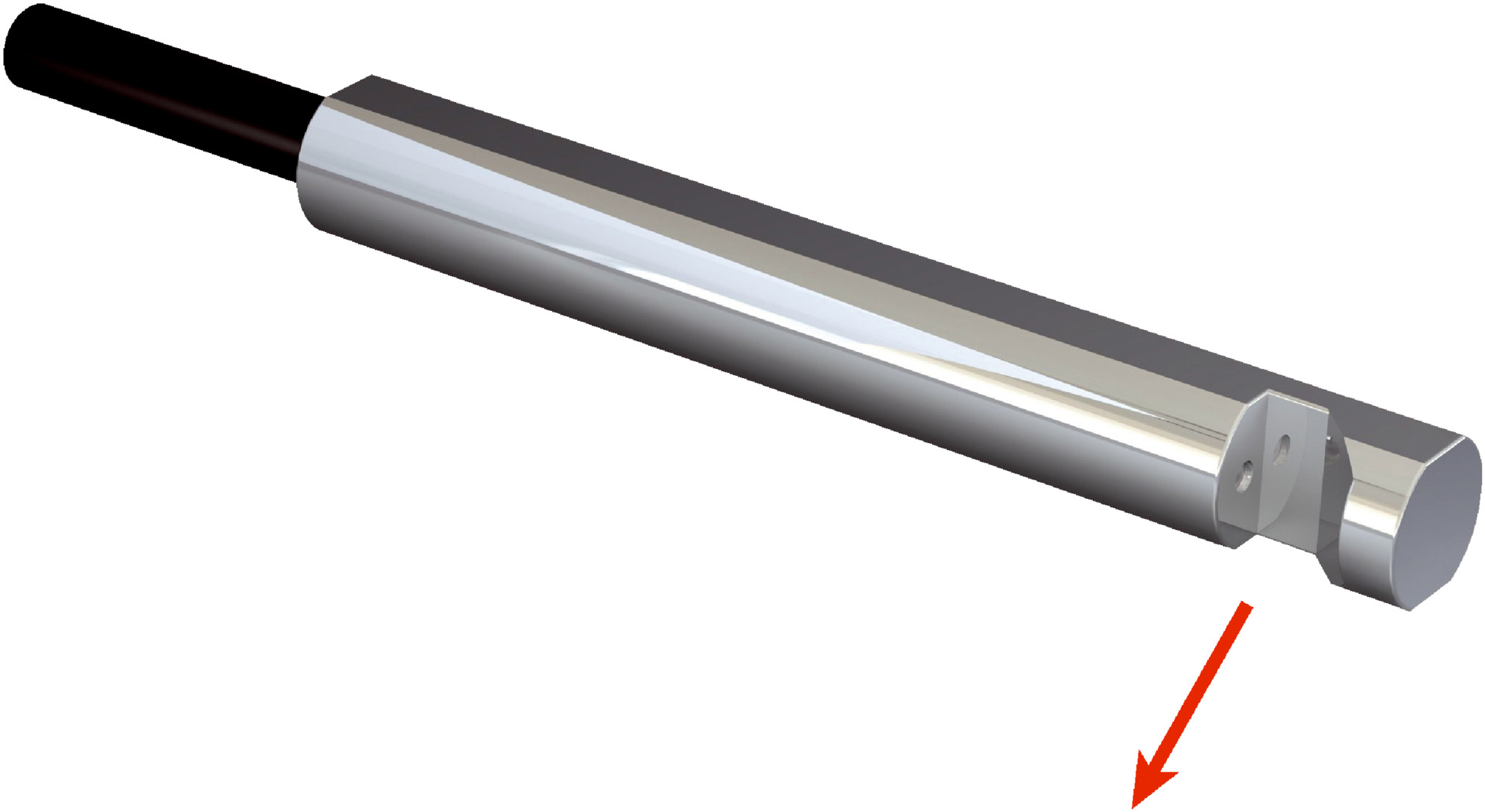

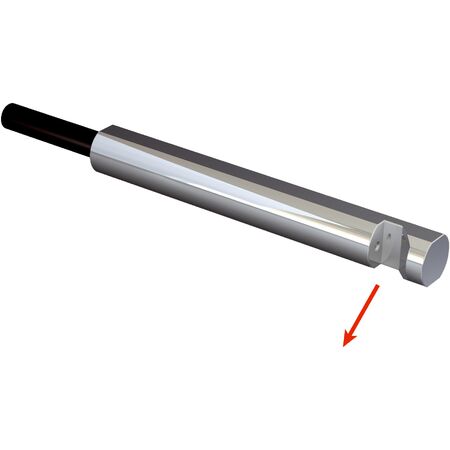

Fiber Optic Sensor Cable LL3-TS12 | 90° Deflection | 3500mm Sensing Range | by SICK
The LL3-TS12 fiber optic sensor cable is designed for precision sensing applications, featuring a through-beam system with a 90° deflection head and a maximum sensing range of up to 3,500 mm. Ideal for industrial automation, this durable cable operates in extreme temperatures from -40 °C to +70 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: 90° deflection with integrated lens
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Maximum sensing range: Up to 3,500 mm depending on amplifier and mode
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 8.58°
- Light emission: Radial
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Optical fiber cable diameter: 2.2 mm
- Fiber arrangement: Single fiber with 0.75 mm core
- Material: Stainless steel head, polyethylene sheath, PMMA fibers
- Operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with 90° deflection and integrated lens
- Maximum sensing range up to 3,500 mm depending on amplifier and operating mode
- Minimal object diameter detection of 0.5 mm
- Radial light emission from stainless steel optical fiber head
- Fiber length of 2,000 mm with 25 mm bending radius
- Optical fiber cable can be shortened without adapter end sleeves
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Standard sensing applications requiring fiber-optic cables
- Use with compatible fiber-optic amplifiers such as WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long service life reducing waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TS12 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
