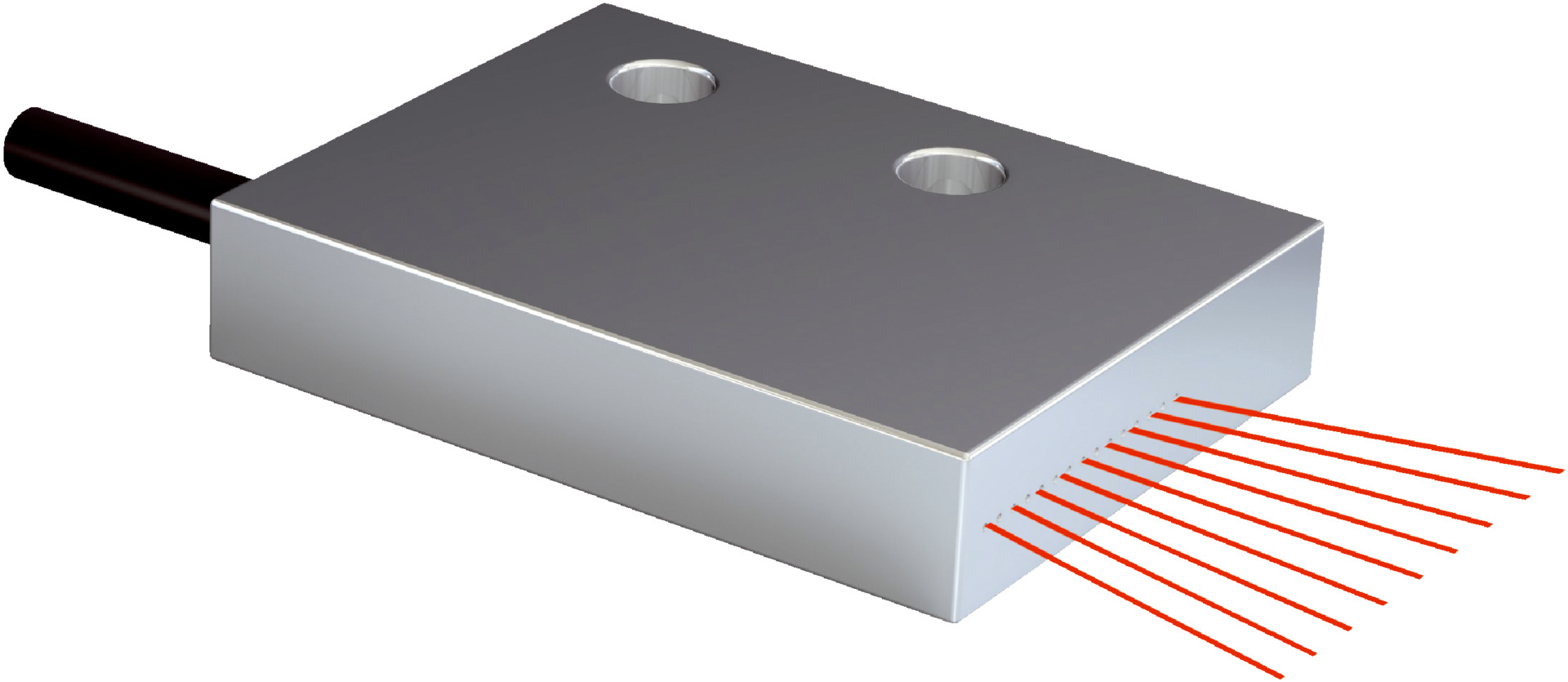

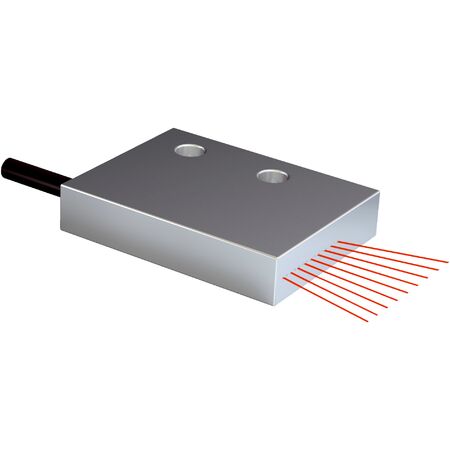

Fiber Optic Sensor Cable LL3-TS14 | Through-Beam System | Flat Type Array Design | 3600mm Sensing Range | by SICK
The LL3-TS14 fiber optic sensor cable is designed for precise area detection in industrial automation, featuring a through-beam system with a flat type array head. With a maximum sensing range of 3600 mm and robust construction, it ensures reliable performance in challenging environments, operating between -40 °C to +70 °C. Ideal for use with compatible fiber-optic amplifiers, this cable enhances process efficiency and reduces waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, Array
- Sensing range max: 3600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Light emission: Axial
- Optical fiber head array width: 11 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 16 x Ø 0.25 mm Multi-fiber
- Material optical fiber head: Copper-zinc alloy (CuZn)
- Sheath: Polyethylene (PE)
- Fibers: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 11mm x 2000mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type, array fiber-optic head design
- Long fiber optic cable cell for extended sensing range
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Axial light emission with 60° angle of dispersion
- Multi-fiber core structure with 16 fibers of 0.25 mm diameter each
- Robust construction with copper-zinc alloy head and polyethylene sheath
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TS14 fiber-optic cable is available for immediate purchase, ideal for industrial automation and area detection applications.
