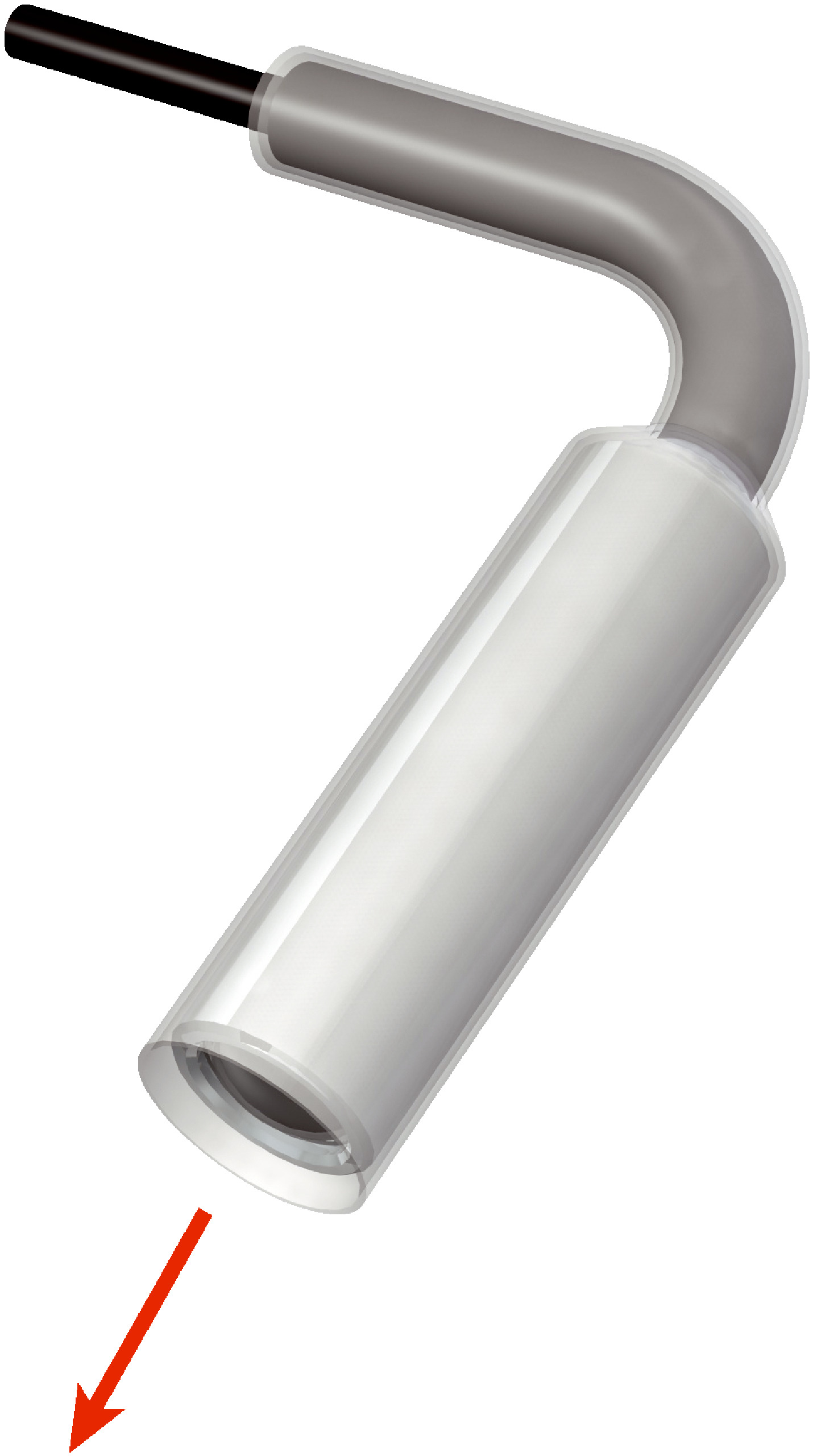

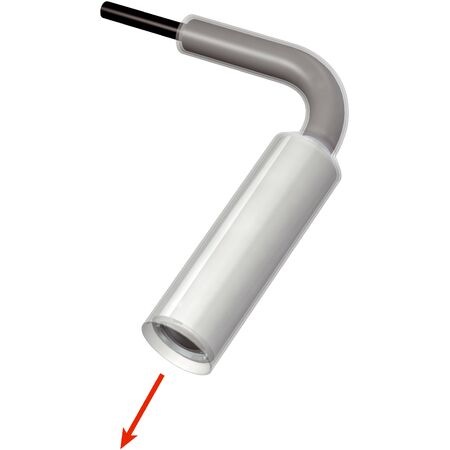

Fiber Optic Sensor Cable LL3-TY03 | Teflon Sheathed | 90° Deflection | Radial Light Emission | by SICK
The LL3-TY03 fiber optic sensor cable is designed for industrial automation sensing, featuring a through-beam system with a smooth sleeve fiber-optic head that offers a 90° deflection. With Teflon sheathing for chemical resistance and a sensing range of up to 4000 mm, this cable is perfect for harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used (up to 4000 mm)
- Minimal object diameter detection: 0.3 mm
- Angle of dispersion: 28.07°
- Integrated lens: Yes
- Compatibility with infrared light: No
- Optical fiber cable length: 3000 mm
- Bending radius: 3 mm
- Optical fiber head material: Perfluoralkoxy-Polymere (PFA)
- Sheath material: Polytetrafluorethylen (PTFE)
- Fiber material: Polymethylmethacrylat (PMMA)
- Light emission: Radial
- Smooth sleeve diameter: 5 mm
- Fiber arrangement: Single fiber
- Core structure diameter: 1.0 mm
- Dimensions (H x L x W): 5mm x 3000mm x 5mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Smooth sleeve fiber-optic head with 90° deflection
- Teflon sheathing for chemical resistance
- Radial light emission with integrated lens
- Fiber-optic cable can be shortened
- Adapter end sleeves included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation sensing
- Oil and chemical resistant environments
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable Teflon sheathing reduces need for frequent replacements, minimizing waste
- Chemical resistance extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TY03 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring chemical resistance and precise detection.
