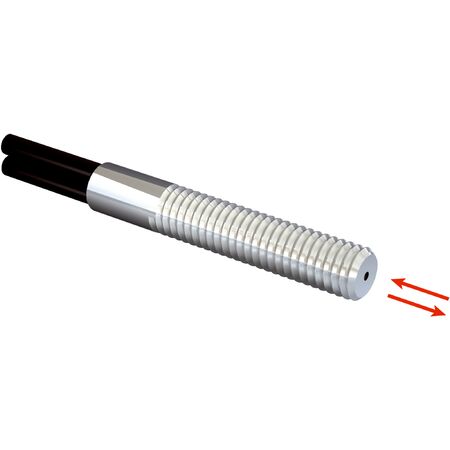

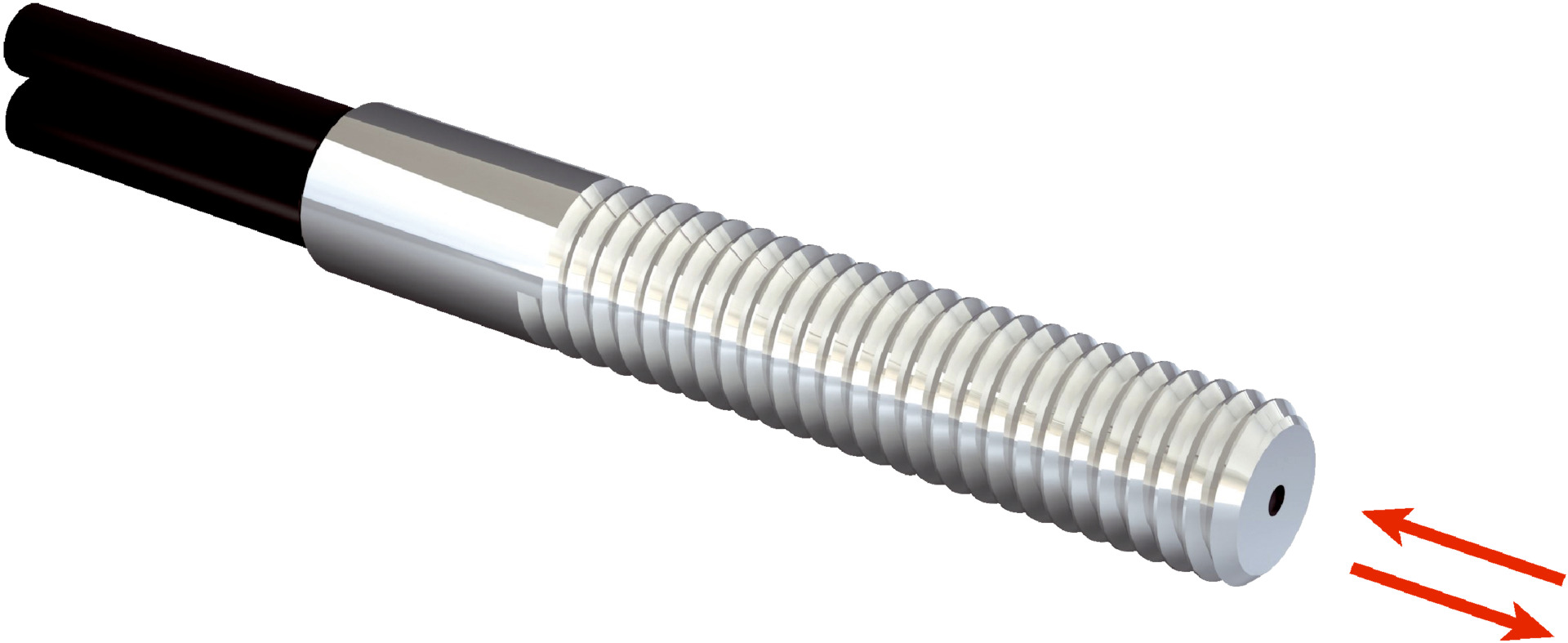

Fiber Optic Sensor Cable LL3-DT01-05 | Proximity System | Threaded Sleeve Design | 5000 mm Length | by SICK
The Fiber Optic Sensor Cable LL3-DT01-05 is designed for precision in proximity sensing applications, featuring a threaded sleeve fiber-optic head and a minimal object diameter detection of just 0.015 mm. Ideal for industrial automation, this durable cable is compatible with various fiber-optic amplifiers, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on amplifier
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 5000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 5000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve fiber-optic head
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- No integrated lens, compatible with tip adapters
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DT01-05 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
