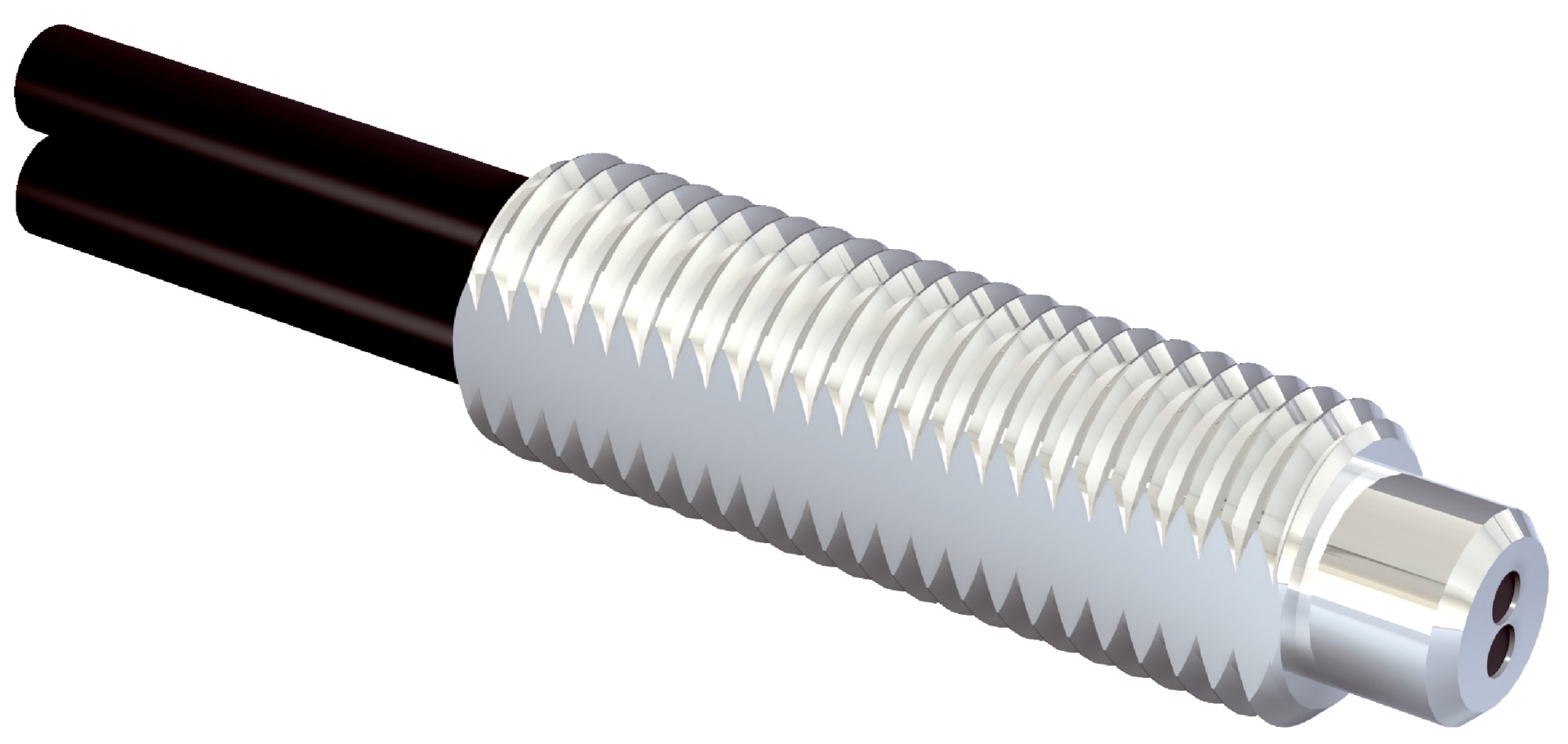

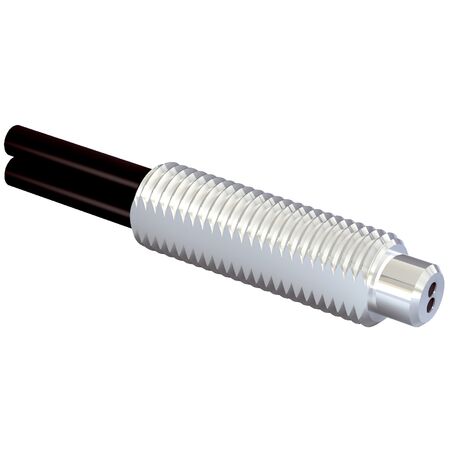

Fiber Optic Sensor Cable LL3-DK06-S01 | Threaded Sleeve Design | Axial Light Emission | 60° Angle of Dispersion | by SICK
The Fiber Optic Sensor Cable LL3-DK06-S01 features a threaded sleeve design and axial light emission with a 60° angle of dispersion, making it ideal for standard proximity sensing applications. Built for industrial environments, this durable cable operates in temperatures from -40°C to +70°C and is compatible with various fiber-optic amplifiers, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
- Stainless steel optical fiber head
- Polyethylene sheath with polymethylmethacrylate fibers
- Operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DK06-S01 fiber-optic cable is available for immediate purchase, ideal for standard proximity sensing applications in industrial environments.
