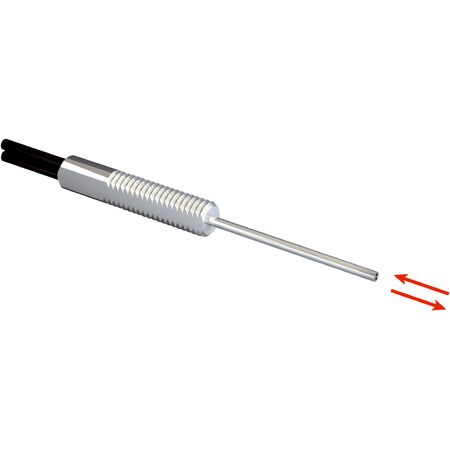

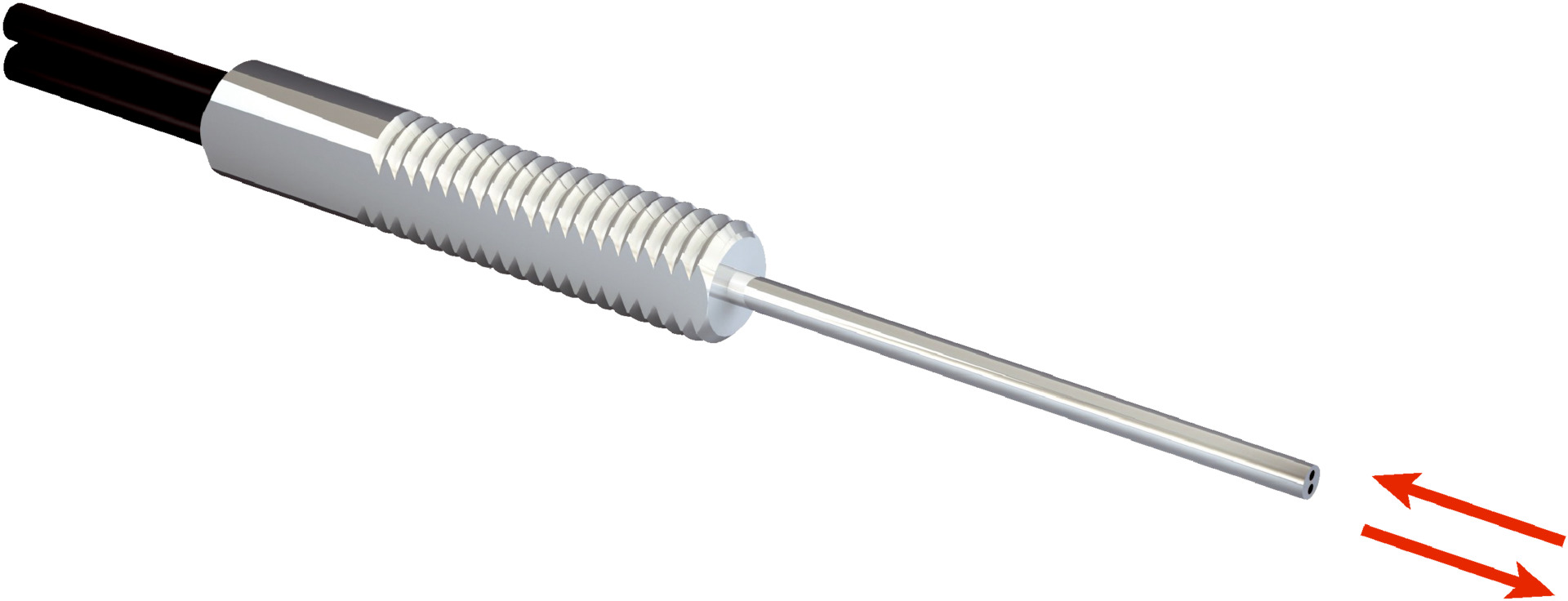

Fiber Optic Sensor Cable LL3-DT02-02 | Threaded Sleeve Design | Compatible with WLL80 & WLL180 | -40°C to +70°C Operating Temp | by SICK
The Fiber Optic Sensor Cable LL3-DT02-02 is designed for high flexibility in sensing applications, featuring a threaded sleeve and long end sleeve design. Compatible with fiber-optic amplifiers like WLL80 and WLL180, it detects minimal object diameters of just 0.015 mm. Ideal for robotics and industrial automation, this cable operates efficiently in temperatures ranging from -40°C to +70°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 0.82 mm
- Optical fiber taper length after 2 mm: ≥ 15 mm
- Fiber length: 2000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 10 mm, 70 µs - 30 mm, 250 µs - 60 mm, 2 ms - 140 mm, 8 ms - 225 mm
- Dimensions (H x L x W): 15mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and long end sleeve design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
- Dynamic flexibility suitable for robotics
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible (static) sensing applications
- Robotics (dynamic flexible) sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-DT02-02 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise proximity sensing.
